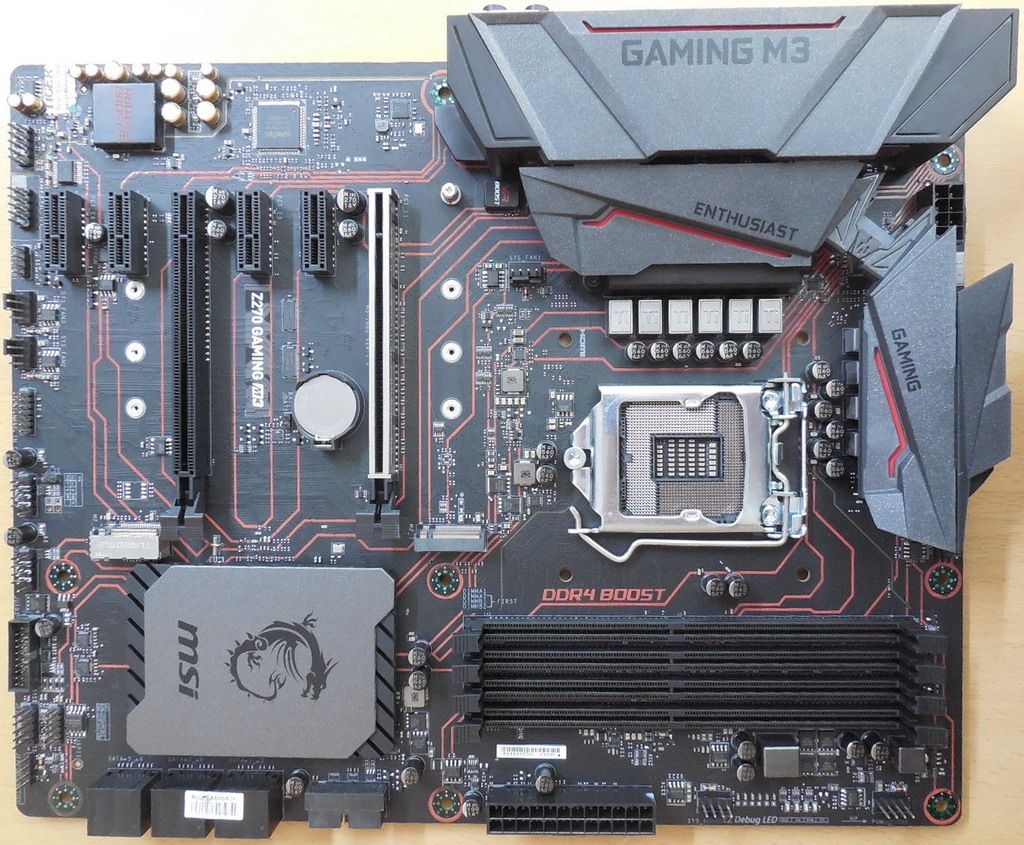

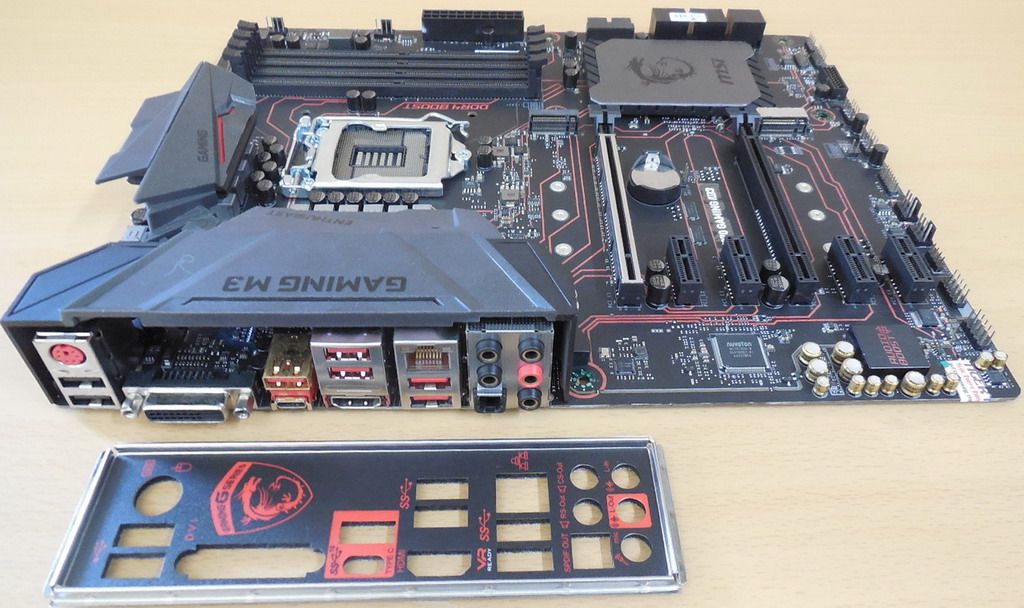

MSI Z270 GAMING M3 MS-7A62 Mainboard +Blende Intel Z270 Sockel 1151 DDR4* m1168

MSI Z270 GAMING M3 MS-7A62 Mainboard + Blende Intel Z270 Sockel 1151 DDR4 PCIe USB3.1

Technische Daten

CPU

Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset

Intel® Z270 Chipset

Main Memory

4 x DDR4 memory slots, support up to 64GB

- 7th Gen processors support DDR4 3800(OC) / 3600(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2600(OC) / 2400 / 2133 MHz*

- 6th Gen processors support DDR4 3600(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2600(OC) / 2400(OC) / 2133 MHz*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

*Please refer to the MSI Website for more information on compatible memory

Slots

2 x PCIe 3.0 x16 slots (supports x16/x4 mode) (The PCI_E4 slot will be unavailable when an M.2 SSD module has been installed in the M.2_2 slot.)

4 x PCIe 3.0 x1 slots

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Onboard Graphics

1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz (7th Gen CPU), 4096x2160@24Hz (6th Gen CPU), 2560x1600@60Hz

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Storage

6 x SATA 6Gb/s ports (M.2 and SATA ports maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs. Please refer to page 33 of the manual for M.2 slots with examples of various combination possibilities.)

2x M.2 slots (Key M)

- Support up to PCIe 3.0 x4 and SATA 6Gb/s

- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host

- M2_1 slot supports 2242 / 2260 / 2280/ 22110 storage devices

- M2_2 slot supports 2242 / 2260 / 2280 storage devices

- Intel® Optane™ Memory Ready for all M.2 slots

USB

by ASMedia® ASM2142 Chipset

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

by Intel® Z270 Chipset

- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connector)

- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)

Audio

Realtek® ALC1220 7.1-Channel High Definition Audio Codec

Supports S/PDIF output

LAN

1 x Killer™ E2500 Gigabit LAN controller

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water pump fan connector

4 x 4-pin system fan connectors

1 x Front panel audio connector

2 x Front panel connectors

1 x LED connector

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Serial connector

1 x Clear CMOS jumper

1 x J1 jumper

1 x JSPI1 connector

Back Panel I/O Ports

1 x PS/2 keyboard/mouse combo port

2 x USB 2.0 Type-A ports

1 x DVI-D port

1 x USB 3.1 Gen2 Type-A port

1 x USB 3.1 Gen2 Type-C port

4 x USB 3.1 Gen1 Type-A ports

1 x HDMI™ port

1 x LAN (RJ45) port

5 x OFC audio jacks

1 x Optical S/PDIF OUT connector

Dimension

ATX Form Factor; 12 in. x 9.6 in. (30.4 cm x 24.3 cm)

Mounting

9 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
