Asus P8Z77-M Pro Rev1.01 Mainboard +Blende Intel Z77 Sockel 1155 DDR3 USB3* m879
Für eine größere Ansicht klicken Sie auf das Vorschaubild

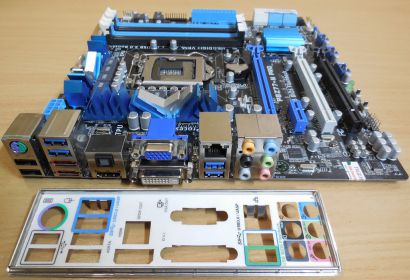

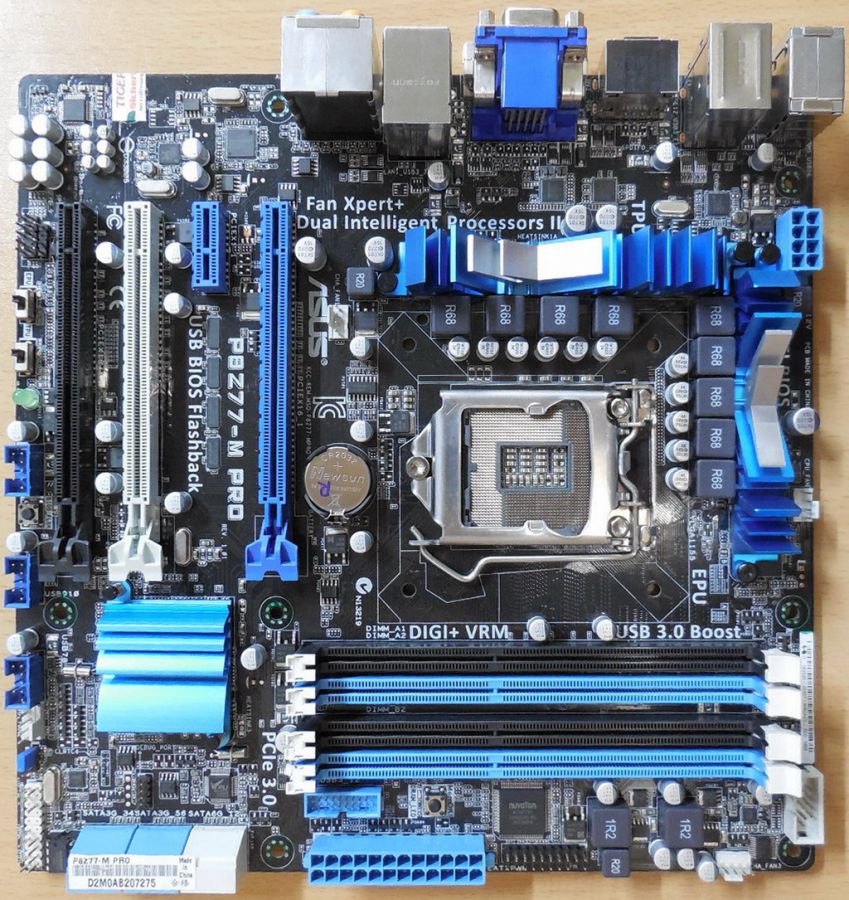

Asus P8Z77-M Pro Rev1.01 Mainboard +Blende Intel Z77 Sockel 1155 DDR3 USB3* m879

Asus P8Z77-M Pro Rev1.01 Mainboard +Blende Intel Z77 Sockel 1155 DDR3 USB3* m879

Art.Nr: m879
Lieferzeit: 3 Tage
Lagerbestand: 0
Artikelzustand: gebraucht

Dieser Artikel ist momentan nicht verfügbar
144,95 €
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten

Produktbeschreibung

Asus P8Z77-M Pro Rev 1.01 Mainboard + Blende Intel Z77 Sockel 1155 DDR3 USB3.0

Technische Daten

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors

Supports Intel® 22 nm CPU; Supports Intel® 32 nm CPU

Supports Intel® Turbo Boost Technology 2.0

*The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset

Intel® Z77

Memory

4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

*Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Graphic

Integrated Graphics Processor

Multi-VGA output support: HDMI/DVI/RGB ports

- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz

- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz

Maximum shared memory of 1696 MB (for iGPU exclusively)

Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology *1

Supports AMD Quad-GPU CrossFireX™ Technology

Supports AMD 3-Way CrossFireX™ Technology

Supports LucidLogix® Virtu™ MVP Technology *2

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *3

1 x PCIe 2.0 x16 (x4 mode, black)

1 x PCIe 2.0 x1

Storage

by Intel® Z77 chipset:

2 x SATA 6Gb/s port(s), gray

4 x SATA 3Gb/s port(s), blue

Support Raid 0, 1, 5, 10

Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4

by ASMedia® ASM1061 controller: *5

2 x eSATA 6Gb/s port(s), red

LAN

Realtek® 8111F Gigabit LAN Controller

Audio

Realtek® ALC892 8-Channel High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature:

- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound

- Optical S/PDIF out port(s) at back panel

USB Ports

by ASMedia® USB 3.1 Gen 1 controller: *6

2 x USB 3.0 port(s) (2 at back panel, blue)

by Intel® Z77 chipset: *6

4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

by Intel® Z77 chipset:

8 x USB 2.0 port(s) (2 at back panel, black, 6 at mid-board)

ROG Exclusive Features

Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS Dual Intelligent Processors 2 with DIGI+ VRM

ASUS TPU: Auto Tuning; TurboV; GPU Boost; TPU switch

ASUS EPU: EPU

ASUS Digital Power Design: Industry leading Digital 8 Phase Power Design (6 -phase for CPU, 2 -phase for iGPU)

ASUS Exclusive Features: USB BIOS Flashback®; MemOK!; AI Suite II; Ai Charger+; Anti-Surge; ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface; Network iControl; USB 3.0 Boost;  Disk Unlocker

ASUS Quiet Thermal Solution: Stylish Fanless Design Heat-sink solution; ASUS Fan Xpert+

ASUS EZ DIY: ASUS O.C. Tuner; ASUS CrashFree BIOS 3; ASUS EZ Flash 2

ASUS Q-Design: ASUS Q-Slot;  ASUS Q-DIMM; ASUS Q-Connector

Back I/O Ports

1 x PS/2 keyboard/mouse combo port

1 x DVI-D

1 x D-Sub

1 x HDMI

2 x eSATA 6Gb/s

1 x LAN (RJ45) port

4 x USB 3.1 Gen 1

2 x USB 2.0

1 x Optical S/PDIF out

6 x Audio jacks

Internal I/O Ports

1 x USB 3.1 Gen 1 (up to 5Gbps) connector supports additional 2 USB 3.1 Gen 1 ports (19-pin)

3 x USB 2.0 connectors support additional 6 USB 2.0 ports

1 x TPM connector

1 x COM ports connector

2 x SATA 6Gb/s connectors

4 x SATA 3Gb/s connectors

1 x CPU Fan connector 4-pin

3 x Chassis Fan connectors 4-pin

1 x S/PDIF out header

1 x 24-pin EATX Power connector

1 x 8-pin ATX 12V Power connector

1 x Front panel audio connector (AAFP)

1 x System panel (Q-Connector)

1 x MemOK! button

1 x TPU switch

1 x EPU switch

1 x Clear CMOS jumper

1 x USB BIOS Flashback® button

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.0, WOL by PME, PXE, WOR by PME

Form Factor

uATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Notes

*1: With 2 PCIex16 graphics card.

*2: LucidLogix Virtu MVP supports Windows 7 operating systems.

*3: PCIe 3.0 speed is supported by Intel® 3rd generation processors.

*4: Supports on Intel® Core™ processor family with Windows 7 operating systems.

*5: These SATA ports are for data hard drivers only. ATAPI devices are not supported.

*6: The USB 3.0 ports only support Windows® 7 or later versions.

*7: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
