Biostar M6VCG Rev. 1.2 Mainboard So. 370 AGP AMR PCI 2x Seriell + Blende* m281

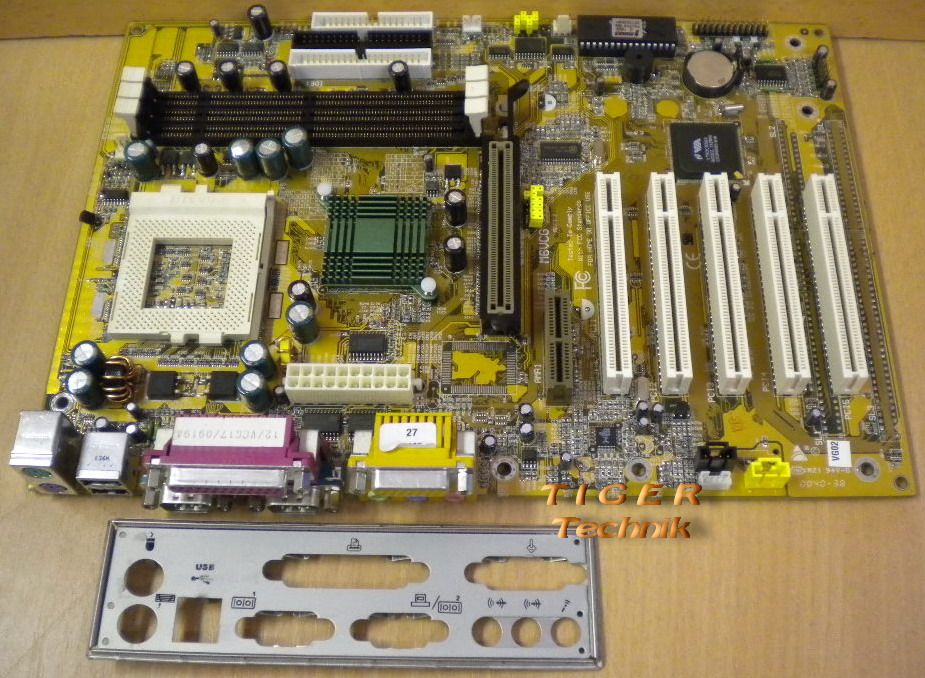

Biostar M6VCG Rev. 1.2 Mainboard So. 370

AGP AMR PCI 2x Seriell + Blende

Technische Daten:

Hersteller: Biostar

Model: M6VCG Rev. 1.2

CPU-Unterstützung: Intel Pentium III (Coppermine), Intel Celeron (Mendocino, Coppermine)

Sockel: Intel 370

Chipsatz: VIA Apollo Pro 133A (VT82C694X) / VT82C686A

RAM: VIA Apollo Pro 133A (VT82C694X) / VT82C686A3 168-Pin DIMM sockets supporting SDRAM / VCM-SDRAM, Supports up to 3 DIMMs PC100/133, Supports up to 256 MiB DIMMs (unofficially maybe more), Supports max. 768 MiB RAM (unofficially maybe more)

BIOS: 2MBit Flash EEPROM (DIP32), Award Modular BIOS v4.51PG, Supports Plug-and-Play (PNP), Supports Advanced Power Management (APM), Supports Advanced Configuration and Power Interface (ACPI), Supports Desktop Management Interface (DMI)

Interne Steckplätze: 1x AGP, 1x AMR, 5x PCI

Externe Anschlüsse: PS/2 keyboard, PS/2 mouse2, USB 1.1 ports, 2 RS-232 ports (COM), 1 parallel port (LPT), 1 game port, Audio connectors (line-out, line-in, mic-in)

Formfaktor: ATX

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
