Produktbeschreibung

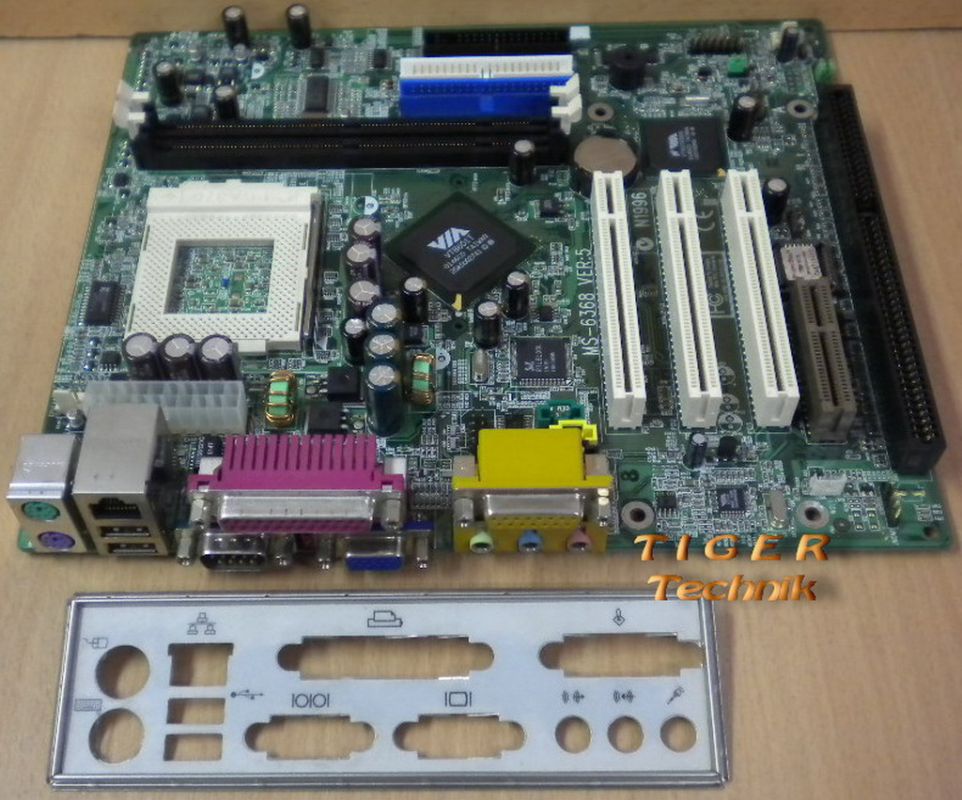

MSI MS-6368 Ver: 5 Mainboard + Blende
Technische Daten
CPU
Socket 370 for Intel® Celeron™/ Tualatin / Pentium III (FC-PGA) processor and VIA C3™ processor
Supports 500MHZ, 533MHz., 550MHz, 667MHz, 700Mhz, 750MHz, 800MHz, 850MHz, 933MHz, 950MHz, 1GHz, 1.13GHz, 1.2GHz and higher
Chipset
VIA® PLE133T VT8601T chipset (552 BGA)
- FSB @133MHz
- Integrated Trident Blade 2D/3D video accelerator
- PCI Advanced high performance memory controller
- Supports PC100/133 SDRAM, VCM & ESDRAM technology
VIA® VT686B chipset (352 BGA)
- Enhanced Power Management Features
- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)
- Dual bus Master IDE Ultra DMA33/66/100
- Integrated Hardware Soundblaster
- Direct Sound AC97 Audio
- ACPI
Clock Generator
66.6MHz, 100MHz and 133MHz clocks are supported
Main Memory
Supports four memory banks using two 168-pin unbuffered DIMM
Supports a maximum memory size of 1GB (32M x 8)
Supports 3.3v SDRAM DIMM
Slots
One CNR (Communication Network Riser) slot
Three 32-bit Master PCI Bus slots
Supports 3.3v/5v PCI bus Interface
One ISA slot
On-Board IDE
An IDE controller on the VIA® VT82C686B chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices.
Audio
Audio controller integrated in 686B chipset
SW Audio Codec VIA 1611A
- Front Audio Pin Header onboard
Network
Realtek 8100L
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 2 serial ports (COMA + COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (2 Rear Connectors/USB Front Pin Header)
- 1 IrDA connector for SIR/CIR/FIR/ASKIR/HPSIR
- 1 VGA connector
- 1 Audio/Game port
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
Micro-ATX Form Factor: 24.5cm (L) x 21cm (W)
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
