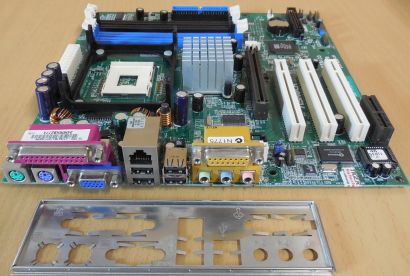

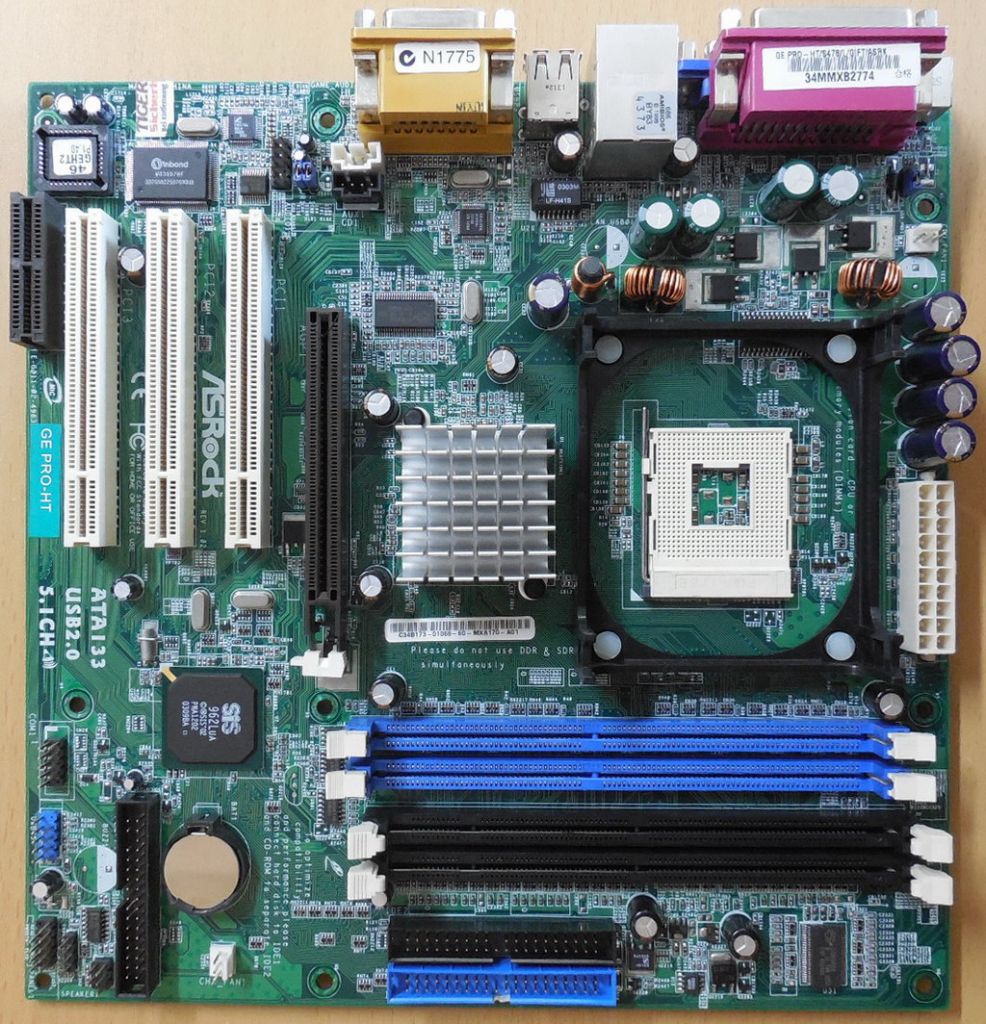

ASRock GE PRO-HT Mainboard +Blende Sockel 478 SiS DDR SDRAM VGA LAN Audio* m1134

ASRock GE PRO-HT Mainboard +Blende Sockel 478 SiS 651(HT) DDR SDRAM VGA LAN Audio

Technische Daten

CPU

Socket 478 for Intel® Pentium® 4 and Intel® Celeron® with FSB 533/400MHz

Chipset

SiS 651(HT) supports Hyper-Threading Technology

Main Memory

2 x DDR for DDR333/266 non-ECC, un-buffered memory

2 x SDRAM for PC133/100 non-ECC, un-buffered memory

Max. capacity of system memory: 2GB

Wahlweise nur DDR-RAM oder SD-RAM separat nutzbar! SDRAM und DDR-SDRAM können nicht gleichzeitig benutzt werden!

Slots

1 x AGP (AGP 4X/2X universal)

3 x PCI 2.2 slots

1 x AMR (shared w/PCI 3)

VGA

Integrated Real 256 3D Graphic Chip

Memory Max. 64MB

Audio

C-Media CMI 9739A 5.1-Channel AC97 Audio CODEC

LAN

Realtek® RTL8201BL 10/100 Fast Ethernet LAN Controller (802.3u; WOL; PXE)

Internal I/O Connectors

1 x ATX 20-pin power connector

1 x 3-pin CPU FAN connector

1 x 3-pin Chassis FAN connector

1 x Front panel audio connector

1 x Front panel connector

1 x JR1 jumper

1 x JL1 jumper

1 x Internal Speaker connector

1 x CD-in connector

1 x AUX-in connector

1 x IR header

1 x USB 2.0 connector supports additional 2 ports

1 x COM1 connector

1 x Floppy disk drive connector

2 x IDE connectors

1 x PS2_USB_PWR1 Jumper

Back Panel I/O Ports

1 x Parallel port

1 x VGA port

1 x PS/2 keyboard

1 x PS/2 mouse

4 x USB 2.0 ports

1 x RJ45 LAN jack

1 x Audio jack

1 x Audio/MIDI port

BIOS

2Mb AMI BIOS with ACPI, SM BIOS 2.3.0, PnP

Form Factor

Micro ATX

OS

Microsoft Windows® 98SE/ME/2000/XP compliant

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
