ASRock P4VM800 Rev 1.03 Retro Mainboard +Blende Intel Sockel 478 VGA LAN* m1121

ASRock P4VM800 Rev 1.03 Retro Mainboard + Blende Intel Sockel 478 VGA LAN

Technische Daten

CPU

Socket 478 for Intel® Pentium® 4 / Celeron® processor

FSB 800/533/400 MHz

Supports Hyper-Threading Technology

Prescott support

Chipset

VIA P4M800 Northbridge + VIA 8237R Southbridge

Memory

Supports DDR400/333 non-ECC, un-buffered memory

2 x DIMM slots; 2GB max. capacity of system memory

Graphics

Integrated UniChrome Pro 3D Graphics

Shared Memory Max. 64MB (with the pre-condition of at least 256MB system memory)

Audio

CMedia CMI9761 6 channel AC'97 audio codec

LAN

VIA 6103 10/100 Ethernet LAN PHY

802.3u, WOL and PXE supported

Slots

1 x AGP 8X/4X slot, 1.5V

3 x PCI slots (PCI 2.2 compliance)

1 x AMR slot

Internal Connectors

2 x Serial ATA 1.5Gb/s connectors (supports RAID 0/1/JBOD and SATA HDD_Hotplug)

2 x ATA 133/100/66 IDE connectors (supports 4 x IDE devices)

1 x Floppy connector

1 x 3-Pin CPU FAN connector

1 x 3-Pin Chassis FAN connector

1 x 20-pin ATX power connector

1 x 4-pin 12V power connector

1 x CD_IN header

1 x AUX_IN header

1 x Front panel audio connector

1 x Front Panel connector

1 x Internal Speaker connector

1 x USB2.0 port header

1 x COM port pin header

1 x IR header

1 x PS2_USB_PWR Jumper

1 x CMOS Jumper

ASRock I/O Plus Rear Panel

6 x USB2.0 ports

1 x RJ45 LAN port

1 x VGA port

1 x PS2 Keyboard connector

1 x PS2 Mouse connectors

1 x Parallel port (LPT1)

3 x Audio ports (Line-In, Line-Out, Mic-In)

Unique Feature

Hybrid Booster       CPU Frequency Stepless control, ASRock U-COP, Boot Failure Guard (B.F.G)

BIOS

4Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP

Form Factor

Micro ATX, ca. 244mm x 203mm

OS

Microsoft Windows® 98SE/ME/2000/XP compliant

Certifications

FCC, CE

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

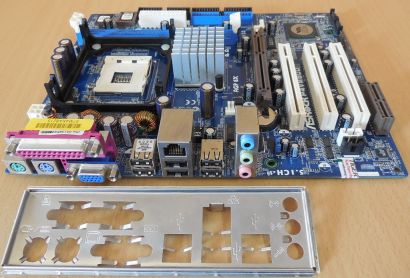

Abbildung ähnlich
