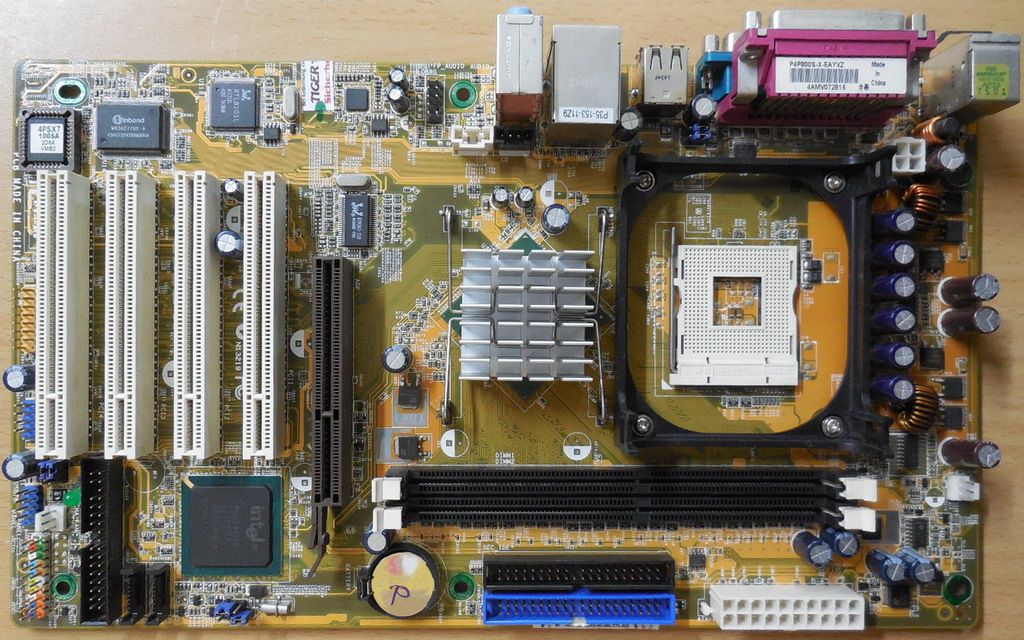

ASUS P4P800S-X Rev 1.01 Mainboard +Blende Intel Sockel 478 SATA AGP 8X DDR* m968

ASUS P4P800S-X Rev 1.01 Mainboard + Blende Intel Sockel 478 SATA AGP 8X DDR

Technische Daten

CPU

Socket 478 for Intel® Pentium® 4/Celeron with speeds up to 3.06+GHz

Supports Intel® Hyper-Threading technology

New power design supports next generation Intel Prescott CPU

Chipset

Intel 848P MCH + Intel ICH5

Front Side Bus (FSB)

800/533/400 MHz

Memory

2 x 184-pin DDR DIMM sockets for up to 2GB memory

Supports PC3200/PC2700/PC2100/PC1600 unbuffered non-ECC DDR DIMMs

Expansion slots

1 x AGP 8X (nur 0.8V und 1.5V)

4 x PCI

Storage

2 x UltraDMA 100/66/33 connectors

2 x Serial ATA connectors

Audio

ADI AD1888 SoundMAX 6-channel audio CODEC; Supports S/PDIF Out

LAN

Realtek RTL8101L 10/100Mbps Fast Ethernet Controller

Special features

ASUS MyLogo

ASUS CrashFree BIOS 2

ASUS EZ Flash

Overclocking features

ASUS JumperFree

CPU-, Arbeitspeicher- und AGP-Spannung einstellbar

Stufenlose Frequenzauswahl (SFS; Stepless Frequency Selection) von 100 MHz bis zu 266 MHz in 1 MHz- Schritten

Einstellbare FSB/DDR-Rate. Feste AGP/PCI-Frequenzen

ASUS C.P.R. (CPU Parameter Recall)

Rear panel I/O

1 x Parallel port

1 x Serial port

1 x Coaxial S/PDIF port

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 2.0 ports

1 x RJ-45 port

Line In/Line Out/Microphone ports

Internal I/O

2 x SATA connectors

2 x IDE connectors

1 x FDD connector

2 x USB 2.0 connectors for 4 additional USB ports

1 x Gameport/Midi connector

1 x 3-Pin fan connector

1 x Chassis Intrusion Connector

1 x CD Audio connector

1 x AUX connector

1 x Front Audio Panel connector

1 x Front System Panel connector

1 x USBPW12 Jumper

1 x USBPW34 Jumper

1 x USBPW56 Jumper

1 x USBPW78 Jumper

1 x 3-Pin CPU fan connector

1 x 3-Pin Chassis fan connector

1 x CMOS Jumper

4-pin CPU 12V power connector

20-pin ATX Power connector

BIOS features

3Mb Flash ROM, AMI BIOS, ACPI, PnP, DMI2.0, WfM 2.0, SM BIOS 2.3, DMI 2.0, ASUS CrashFree BIOS 2, ASUS EZ Flash, ASUS MyLogo

Industry standard

PCI 2.2, USB 2.0/1.1

Manageability

DMI 2.0, WOL/WOR by PME; SMBus

Form Factor

ATX form factor; 12 in x 7 in (30.5 cm x 17.0 cm)

Lieferumfang

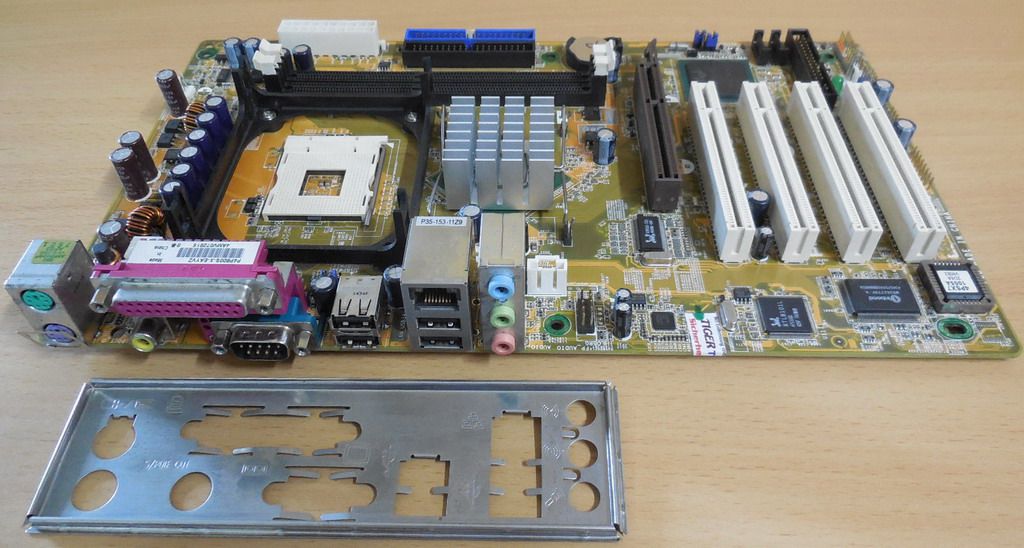

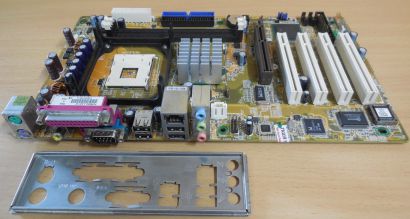

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
