Albatron PM845GL Mainboard + Blende OVP Sockel 478 AGP DDR VGA Sound LAN* m518

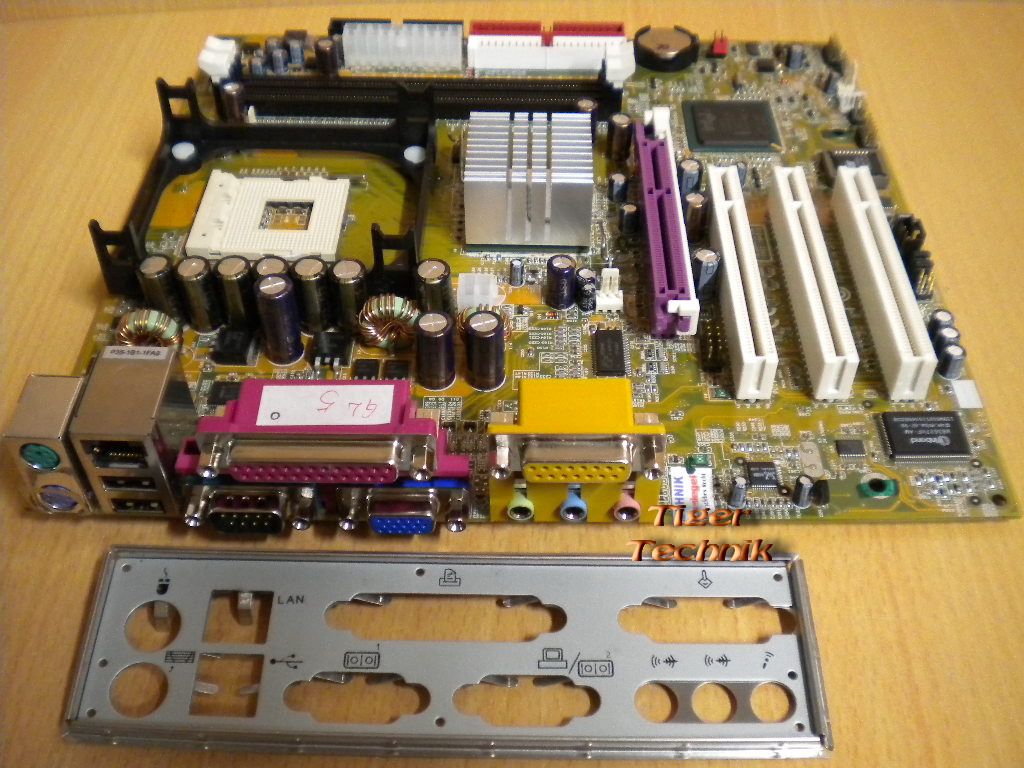

Albatron PM845GL Mainboard + Blende

Technische Daten

CPU

Provides Socket-478

Supports Pentium4 processors

SPEED

FSB 400MHz (supports only 100MHz CPU Clock)

The 33MHz 32-bit PCI 2.2 compliant

Flash Memory

Supports flash memory functionality

Supports ESCD functionality

Shadow RAM

Motherboard is equipped with a memory controller providing shadow RAM and support for ROM Bios

Graphics Controller - VGA

Integrated 2D/3D graphics accelerator

256-bit graphics core

Texture mapped 3D with point sampled, Bilinear, Trilinear and Anisotropic filtering

Hardware setup with support for strips and fans

Hardware motion compensation assistance for software MPEG/DVD decode

Integrated 350 MHz RAMDAC

Chipset

Northbridge: Intel 82845GL

Southbridge: Intel 82801DB(ICH4)

IO: Winbond Smart IO 83627HF

LAN Chip: Intel DA82562ET

Memory Controller

Total capacity 2GB 200/266 DDR SDRAM

Supports up to 2-banks per DIMM memory with a total capacity of up to 1GB

Supports 64MB,128MB,256MB,512MB and 1GB DDR SDRAM technology

Supports non-ECC,un-buffered memory only

*Supports only x8 and x16 DDR SDRAM devices with 4-banks. Does not support double-sided x16 DDR DIMM*

Expansion Slots

1 x AGP

3 x PCI

Storage

IDE 1&2 supports ultra ATA/100/66/33, BMIDE and PIO modes

Supports installation of up to 4 drives, with seperate IDE connections for Primary and Secondary cables

LAN

Supports 10/100 Mbit/s Ethernet

Supports Wake-On-LAN function

Audio AC´97 Sound Codec Onboard

High performance CODEC with high S/N ratio (>90 dB)

Compatible with AC´97 2.2 specification

2 channel slot selectable DAC output for multi-channel applications

3D stereo enhancement

Digital S/PDIF output

Green Functionality

Supports PHOENIX-AWARD Bios power management functionality

Wakes from power saving sleep mode with any keyboard or mouse activity

USB

Supports two back panel Universal Serial Bus Ports and four front panel USB Ports

USB2.0 compliance

Hardware Monitor Function

Monitors CPU FAN Speed

Monitors Chassis Fan Speed

Monitors System Voltage

Infrared

Supports IrDA Version 1.0 SIR Protocol with maximum baud rate up to 115.2K bps.

Supports SHARP ASK-IR Protocol with maximum baud rate up to 57600 bps.

Supports Consumer IR with Wake-Up function

Back Panel I/O Ports

1 x Parallel

1 x PS/2 Mouse

1 x PS/2 Keyboard

1 x VGA

1 x RJ45

2 x USB 2.0/1.1

2-channel Audio I/O with Gameport

Internal I/O Connectors

2 x USB 2.0 connector supports additional 4 USB 2.0 ports

Front panel audio connector

SPDIF port connector

IrDA port connector

CD audio-in connector

1 x S/PDIF output connector

WOL connector

CPU / Chassis Fan connectors

Chassis Intrusion connector

20-pin EATX power connector

4-pin ATX 12V Power connector

I/O Facilities

One multi-mode Parallel Port capable of supporting the following specifications:

Enhanced Parallel Port (EPP) - Extended Capabilities Port (ECP) - PS/2 compatible bi-directional parallel port

Supports two serial ports, 16550 UARTs with 16-byte send/receive FIFOs

Supports Infrared Data Transmission using IrDA

Supports PS/2 mouse and PS/2 keyboard

Supports 360KB, 1.2MB, 1.44MB and 2.88MB floppy disk drives

MIDI compatible

Gameport compatible

BIOS

Phoenix legal Bios

Supports APM1.2

Supports USB Legacy

Supports ACPI Power Management

Dimensions (micro-ATX form-factor)

230mm x 244mm (WxL)

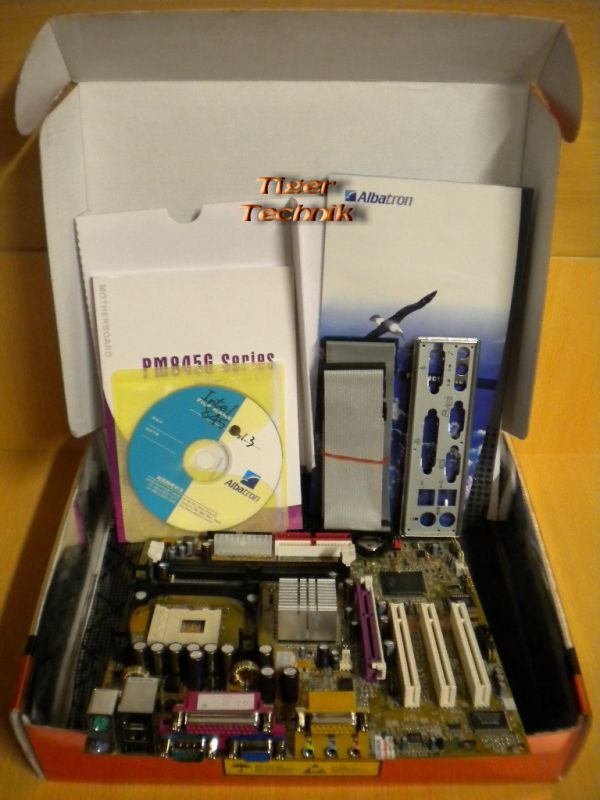

Lieferumfang

Das Mainboard inkl. Blende, Handbuch, Treiber-CD, HDD Kabel und Floppy Kabel * OVP * gebraucht *

Abbildung ähnlich
