Produktbeschreibung

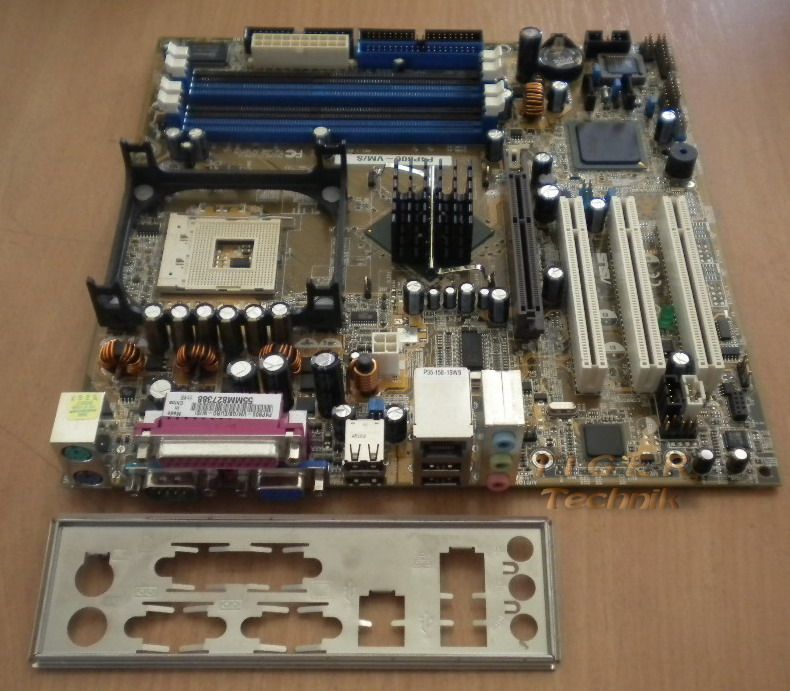

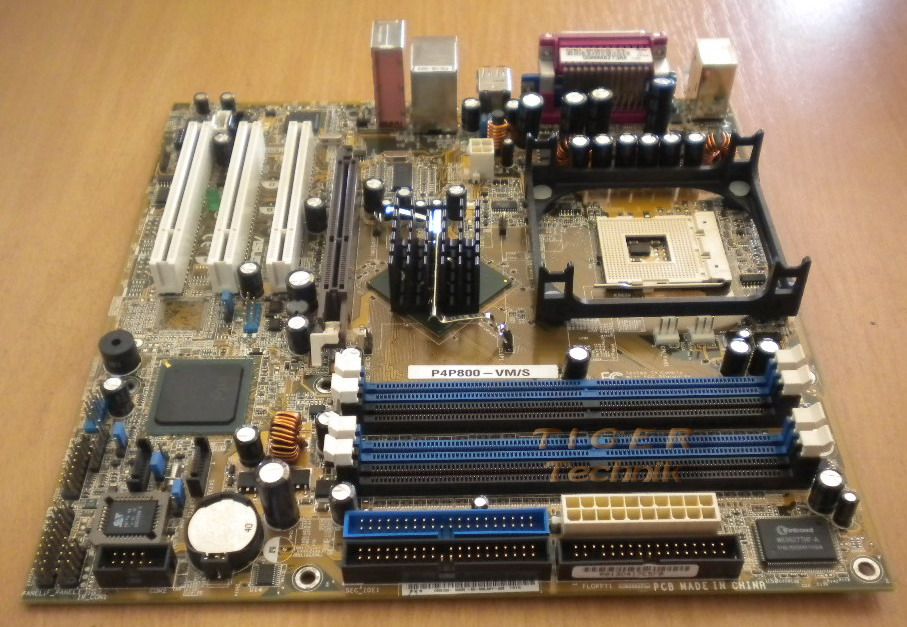

Asus P4P800-VM/S rev. 1.06 mit Blende
Technische Daten:
CPU
-Socket 478 for Intel Pentium 4/ Celeron up to 3.4GHz+
-Intel Hyper-Threading Technology ready
-New power design supports Intel next generation Prescott CPU
Chipset
Intel 865G GMCH
Intel ICH5
Front Side Bus
800/533/400MHz
Memory
Dual channel memory architecture
4 x 184-pin DIMM Sockets
Support max. 4GB PC3200/PC2700/PC2100 non-ECC DDR SDRAM memory
VGA
Next generation integrated Intel Extreme Graphics
Expansion Slots
1 x AGP 8X
3 x PCI
IDE
2 x UltraDMA 100/66/33
Serial ATA
Built-in ICH5 supports 2 x Serial ATA
Audio
ADI 1980 6-channel audio codec
S/PDIF out interface
LAN
Intel 10/100 Mbps LAN
H/W Monitoring
Winbond 83627THF
2 FAN sensors and 2 Temperatures monitoring and 4 Voltage monitorings
Special Features
Wake on Ring, Lan, USB, Keyboard & Mouse
STR (Suspend-to-RAM)
STD (Suspend-to-Disk)
ASUS CrashFree BIOS2
ASUS EZFlash
ASUS Mylogo
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Line In / Line Out / Microphone ports
1 x COM1
1 x RJ45
4 x USB 2.0
Internal I/O Connectors
2 x USB 2.0 connector support additional 4 USB 2.0 ports
S/PDIF out connector
Game/MIDI port connector
CD / AUX audio in
CPU / Chassis FAN connectors
20 pin ATX Power connector
4 pin ATX 12V Power connector
20 Pin Panel connector
10 Pin Intel Front Panel Audio connector
BIOS
2Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI
Industrial Standard
PCI 2.2, USB2.0
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME
Form Factor
microATX Form Factor 9.6"x 9.6" (24.3cm x 24.3cm)
Handbuch unter folgendem Link: http://dlcdnet.asus.com/pub/ASUS/mb/sock478/p4p800-vm/e1338_p4p800-vm.pdf
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
