ECS Elitegroup P4VMM2 Ver. 7.1 Mainboard Sockel 478 AGP PCI CNR + Blende* m218

ECS Elitegroup P4VMM2 Ver. 7.1 Mainboard

Sockel 478 AGP PCI CNR + Blende

Technische Daten:

CPU:

Socket 478 for latest Intel Pentium 4 / Celeron processor, FSB 533/400 MHz

CHIPSET:

VIA® P4M266A & VT8235, North Bridge: VIA® P4M266A, South Bridge: VIA® VT8235

GRAPHICS:

Integrated S3 ProSavage8 2D/3D Graphics

MEMORY:

2 x 184-pin DDR DIMM socket support up to 2 GB

Support DDR333*/266 DDR SDRAM ( * means overclocking )

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.

For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT:

1 x AGP 4X slot, 2 x PCI slots, 1 x CNR slot

STORAGE:

Support by VIA® VT8235, 4 x Ultra DMA133/100/66 devices

AUDIO:

VIA® VT1612A 2-channel audio CODEC, Compliant with AC'97 2.2 specification

LAN:

VIA® VT6103 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O:

1 x PS/2 keyboard & PS/2 mouse connectors

4 x USB ports

1 x RJ45 LAN connector

1 x VGA port

1 x Parallel port (LPT)

1 x Serial port (COM1)

1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS:

1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector

1 x FDD connector supports one 360K~2.88MB FDD

2 x IDE connectors

1 x IrDA for SIR header

1 x Speaker header

1 x USB 2.0 header support additional 2 USB ports

1 x USB card reader header

1 x Front panel switch/LED header

CD in1/CD in2 header

CPUFAN/SYSFAN connectors

SYSTEM BIOS:

Award BIOS with 2Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Supports ACPI revision 1.0 specification

FORM FACTOR: Micro-ATX Size, 244mm*204mm

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

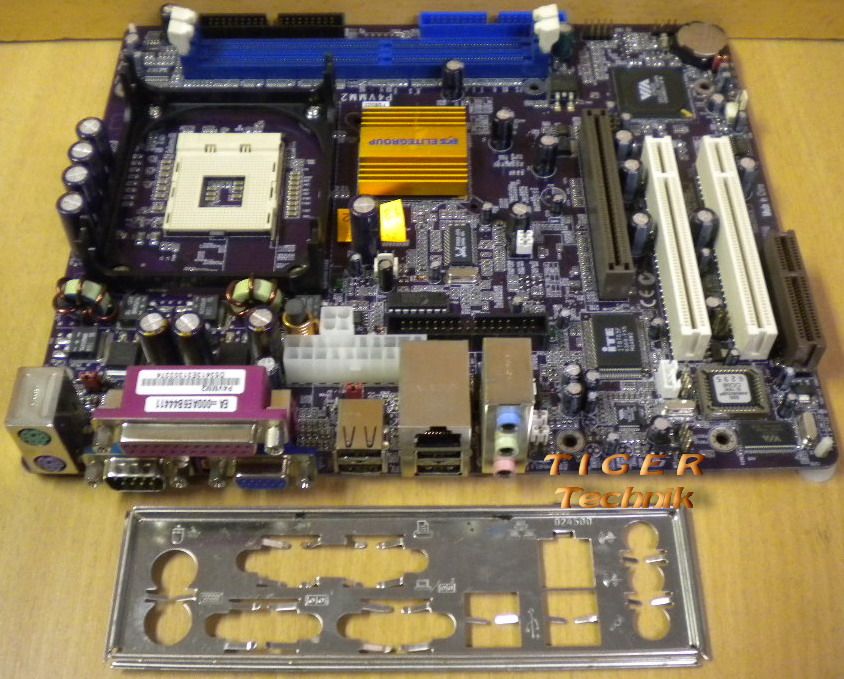

Abbildung ähnlich
