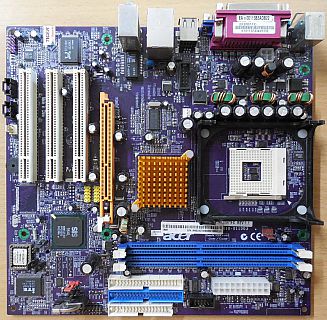

ECS Elitegroup SF2/661FX Rev1.1 Mainboard + Blende Sockel 478 VGA LAN DDR* m204

ECS Elitegroup SF2/661FX Rev 1.1 Mainboard + Blende Sockel 478 VGA LAN DDR IEEE1394

Technische Daten

CPU

Sockel 478 für Intel Pentium 4 oder Intel Celeron Prozessoren

unterstützt die Hyper-Threading-Technologie

Chipsatz

SiS® 661FX Northbridge + SiS® 964L Southbridge

Front Side Bus

800 / 533 / 400MHz

Memory

2 x 184-Pin DDR1 400/333/266MHz DIMM; unterstützt bis zu max. 2 GB

Expansion Slots

1 x AGP 8X/4X

3 x PCI

Storage

2 x Ultra DMA 133 / 100 / 66 for up to 4 PATA devices

LAN

Realtek RTL8100C 10/100Mbps Fast Ethernet Controller

Audio

Realtek ALC655 6-Kanal-Audio-CODEC; konform mit AC'97 2.3-Spezifikation

USB

8 x USB 2.0 ports (4 ports at mid-board; 4 ports at back panel)

Back Panel I/O Ports

1 x PS/2 Keyboard port

1 x PS/2 Mouse port

1 x Parallel port (LPT1)

1 x Serial port (COM1)

1 x VGA port (Sub-D)

1 x LAN port (RJ45)

4 x USB 2.0/1.1 ports

6-channel Audio I/O ports (Line-In, Line-Out, Mic-In)

Internal I/O Connectors

2 x USB2.0 connectors support additional 4 USB2.0 ports

1 x USB5 connector

1 x Floppy disk drive connector, unterstützt zwei 360K ~ 2,88 MB FDD

2 x IDE connectors

1 x COM2 connector

1 x 3-pin CPU Fan connector

1 x 3-pin Chassis Fan connector

1 x 3-pin Northbridge Fan connector

1 x Front Audio Panel connector

1 x S/PDIF Out Header

1 x AUX in connector

1 x CD audio in connector

1 x Front Panel connector

1 x Wake On LAN connector

1 x Wake On Modem connector

1 x Clear CMOS Jumper

1 x Bios Protection Jumper

Buzzer

20-pin ATX Power connector

4-pin ATX 12V Power connector

BIOS

Award BIOS mit 2 MB Flash-ROM

unterstützt PnP 1.0A, DMI, APM 1.2, Multi-Boot

unterstützt ACPI Revision 1.0

Form Factor

Micro-ATX Form Factor; ca. 230mm x 244mm

Lieferumfang

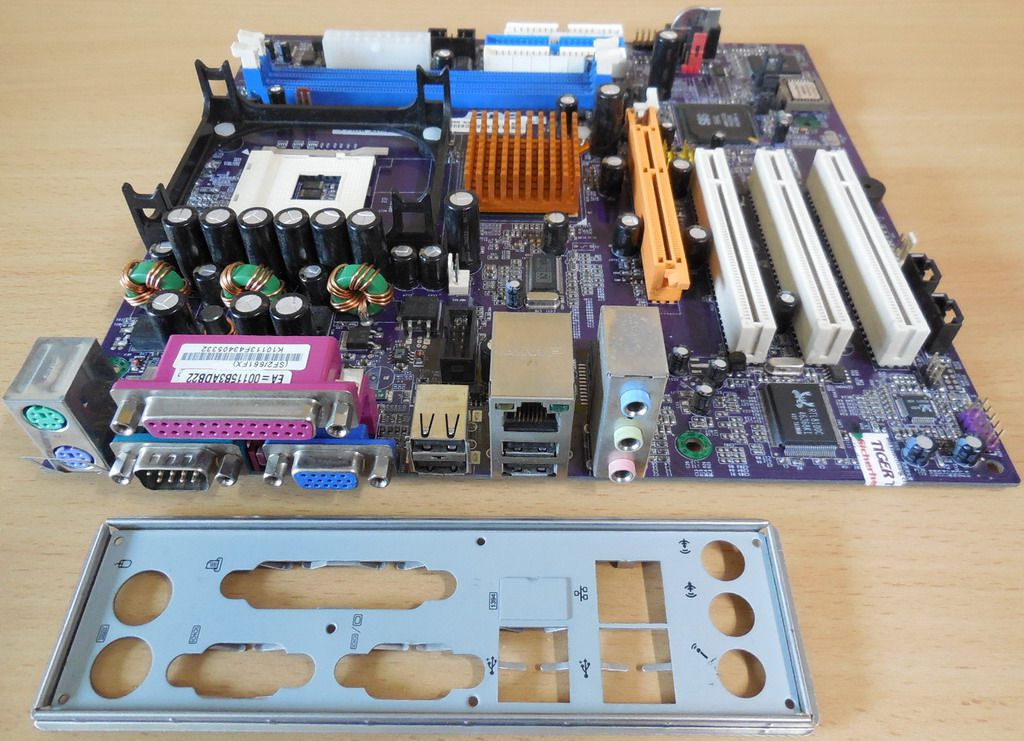

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
