FSC D1561-C23 GS4 Mainboard +Blende Sockel 478 SATA VGA LAN Audio USB2.0* m690

FSC Fujitsu-Siemens D1561-C23 GS4 Mainboard + Blende

Sockel 478 SATA VGA LAN Audio USB2.0

Technische Daten

Chipsatz: Intel® 865G

CPU:

Intel® Pentium® 4 Processors, mPGA 478 with 800/533/400 MHz FSB

Intel® Celeron® Processors, mPGA 478 with 400 MHz FSB

Support for Hyper-Threading Technology

Supporting new Intel® Pentium® 4 Processors with 1 MB L2 Cache

Memory

4x DIMM Sockets (2.5V), 128 MB - 4 GB, 184 Pin, Single or Dual Channel, DDR400/333/266 SDRAM (PC3200/2700/2100), unbuffered, non-ECC

VGA: OnBoard VGA

Audio:

Analog Devices AD1980, AC ‘97 Audio, S/PDIF 5.1, HW 3D Stereo Enhancement, SW Soundblaster Emulation (Win98/WinME/ Win2000) Support, SW Wavetable Synthesis Support

LAN

Intel® LAN Ethernet Controller 82547 EI with 10/100/1000 Mbit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, bootix® BootP or bootix® PXE Support

SATA / ATA / Floppy

2x SATA 150 Mbytes/s; 2x IDE/PATA 100 Mbytes/s for up to 4 devices; 1x Diskettenlaufwerksschnittstelle

HI-SPEED USB 2.0

4x USB2.0 intern / 4x USB2.0 extern

Erweiterungssteckplätze

1x AGP-Steckplatz (4/8x, 32 Bit, 66 MHz, 1,5 V)

3x PCI-Steckplatz (32 Bit, 33 MHz, 5 V und 3,3 V)

Interne Anschlüsse

1x S/PDIF 5.1 (digital Audio) OUT

1x CD-Input

1x Bedienfeld Audio (9-Pin für Kopfhörer, Mikrofon)

4x USB-Anschlüsse (2.0, ~480 MB/s)

1x Serielle Anschlüsse (FIFO, 16550 kompatibel)

Lüfteranschlüsse für CPU & AUX1

Stromversorgung für ATX & ATX12V

int. Lautsprecheranschluss

Externe Anschlüsse

1x VGA

Audio Mic. In / Line in / Line out (oder Treiberkonfiguration)

1x LAN (RJ-45)

1x PS/2 Maus + 1x Tastatur

4x USB-Anschlüsse (2,0, ~480 MB/s)

1x Serielle Anschlüsse (RS232, FIFO, 16550 kompatibel)

1x Paralleler Anschluss (EPP/ECP)

Format: μATX

Sonstiges

Unterstützung für Fujitsu Siemens Computers Tastatur mit Einschalttaste

Silent Fan LT - Independent temperature related processor-fan supervision and control

Silent Drives - Noise reduction for optical and hard disk drives

Recovery BIOS - Restores a corrupted BIOS

Desk Update - Simple driver update with DU CD

Multi Boot - Comfortable boot from any boot device

USB Security - Access protection with Fujitsu Siemens Computers Memory Bird

Logo Boot

Intel On Screen Branding

Lieferumfang

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

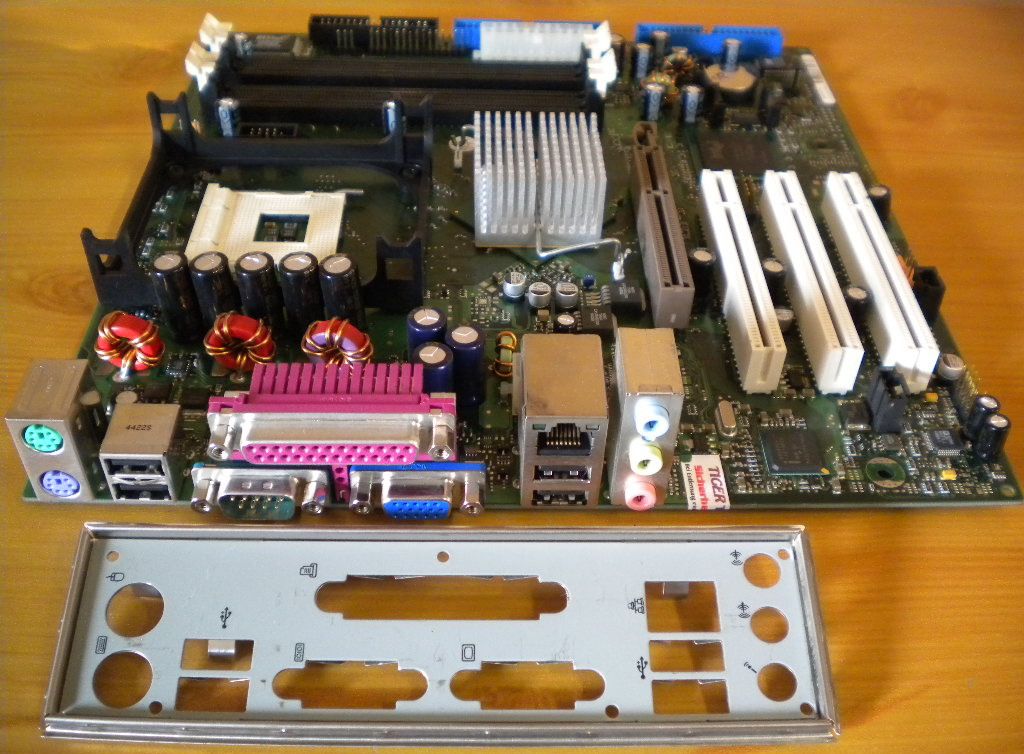

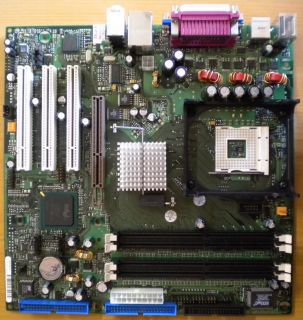

Abbildung ähnlich
