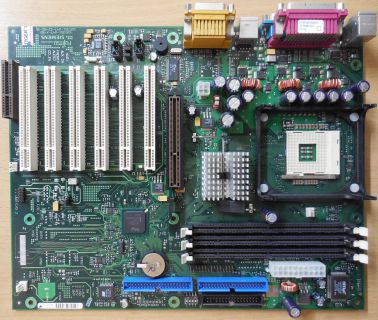

Fujitsu Siemens D1325-C11 GS 4 Mainboard +Blende Intel Sockel 478 AGP Audio* m09

Fujitsu Siemens D1325-C11 GS 4 Mainboard +Blende Intel Sockel 478 AGP Audio

Technische Daten

Hersteller: Fujitsu Siemens Computers

Model: D1325-C11 GS 4

Sockel: Intel mPGA478

FSB: 400 MHz

Prozessor: Pentium 4 processors support MMX technology and Intel Streaming SIMD Extensions.  The size and frequency of first-level cache and second-level cache are dependent upon the processor used.

Chipset: Intel® 845

Memory: 3x SDRAM-Bänke für von 32 MB bis zu 3 GB Main Memory (SDRAM memory modules meet the PC133 specification) with ECC

Steckplätze: 6x PCI (PCI slots support 3.3 V main and auxiliary voltages.); 1x AGP slot (supports 1x, 2x and 4x AGP mode. Only AGP boards with 1.5 V are supported.); 1x CNR type A slot shared with PCI slot

Storage: IDE hard disk controller connected to PCI bus for up to four IDE drives (e.g. IDE hard disk drives, ATAPI CD-ROM drives). The IDE hard disk controller are ATA33/66/100, ultra DMA capable and support PIO modes 0-4.; Floppy disk drive controller (possible formats: 720 KB, 1.44 MB, 2.88 MB); The system board supports booting from a 120 MB IDE floppy disk drive.

Anschlüsse Intern: 2x IDE Connectors; 1x Floppy Connector; 1x Internal USB C/D 2 Connector; 1x CPU FAN Connector; 1x Front Panel Connector; 1x Front Audio Panel Connector; 1x Stereo CD-In Connector; 1x Stereo AUX-In Connector; 1x Buzzer; 1x FAN3 Connector; 1x internal WOL interface

Anschlüsse Extern: 2x USB ports (A/B); 2x Seriell (COM; 16C550 compatible with FIFO); 1x Parallel (ECP- and EPP-compatible); 1x PS/2 port für Keyboard; 1x PS/2 port für Mouse; Audio Anschlüsse 3x 3,5 mm Klinke(Mono Micro-In, Stereo Line-In, Stereo Line-Out); 1x Game/Midi port

Sound: Analogue Devices AD1885 AC´97 Audio

Power Anschluss:   1x 20-pin, 1x 4-pin P4

Formfaktor: System Board in ATX Format

Bios: Flash BIOS

Power-on functions: Wake on RTC, Wake on LAN, Wake on PCI Cards, Wake on USB − COM1 wake up support (standby)

Energy saving functions: APM and ACPI (requires an operating system that supports ACPI); Switching on/off, standby mode, suspend mode via on/off switch; Switching on/off via software

Security functions: Processor serial number; System, Setup and Keyboard password; parallel and serial ports can be deactivated; Floppy disk write-protection via BIOS Setup; Boot hard disk virus warning function; Flash BIOS and EEPROMs (on the memory modules) virus protection function.

Real-time clock/calendar with integrated battery backup

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
