HP Compaq D510/D510E USFF Mainboard Climber 304023-001 302398-001 Intel 845G Sockel 478

Technische Daten

Hersteller       HP

HP P/N       304023-001; 302398-001

Model       Climber-L

CPU-Unterstützung

Support for Intel® Pentium® 4 and Celeron® processors in the 478-pin package (For details on recommended CPU, please refer to the HP/Compaq website)

Sockel       Socket 478

Chipsatz       Intel® 845G Chipset

RAM       2 x DIMM Sockets DDR1, PC-2100 / 266MHz, 184-pin, non-ECC (For details on recommended RAM, please refer to the HP/Compaq website)

VGA       Intel® 845G Extreme Graphics

LAN       Integrated Intel Fast Ethernet PHY Connection DA82562ET

Audio       Analog Devices AD1981A, AC´97 Audio Codec

Intern       Echtzeituhr/Kalender mit Batteriepufferung

1 x IDE1 Connector

1 x IDE2 Connector

1 x 3-pin CPU FAN Connector

1 x J6 Connector

1 x HDD LED

1 x Power Button

1 x Power LED

1 x 8-pin Power Connector 1

1 x 10-pin Power Connector 2

1 x Buzzer

1 x SW1 Switch

1 x J5 Connector

Externe Anschlüsse       1 x VGA; 1 x (RJ-45) LAN, 6 x USB2.0, 1 x Line-In, 1 x Line-Out, 1 x Mic

Formfaktor       D510/D510E Ultra Small Form Factor

Ausgebaut aus      HP/Compaq D510/D510E USFF PC

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

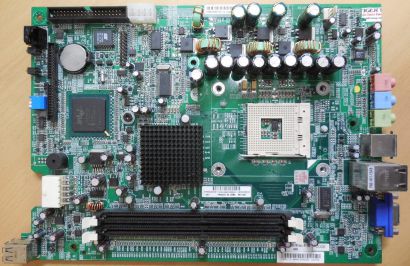

Abbildung ähnlich
