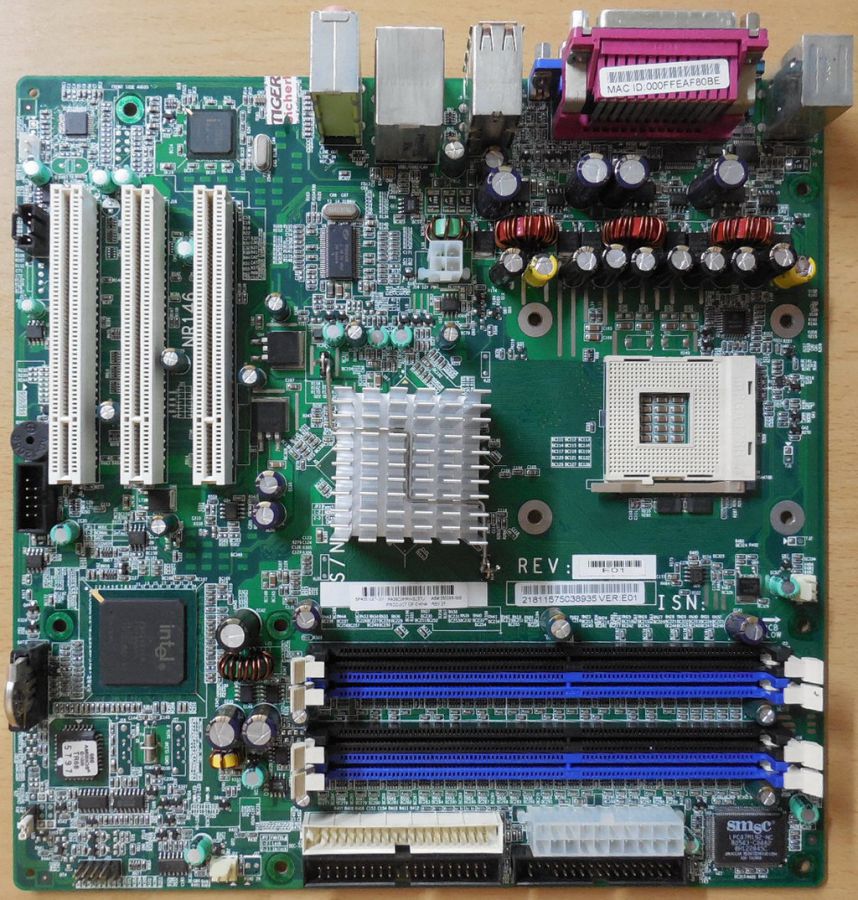

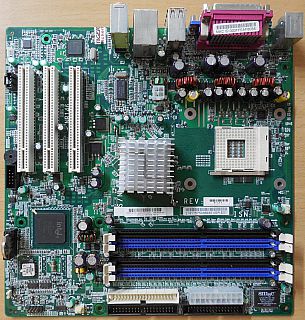

HP Compaq DX 2000 MT Mainboard +Blende 351067-001 350286-005 NR146 ver E01* m912
Für eine größere Ansicht klicken Sie auf das Vorschaubild
HP Compaq DX 2000 MT Mainboard +Blende 351067-001 350286-005 NR146 ver E01* m912

HP Compaq DX 2000 MT Mainboard +Blende 351067-001 350286-005 NR146 ver E01* m912

Art.Nr: m912
Lieferzeit: 3 Tage
Lagerbestand: 1
Artikelzustand: gebraucht
14,45 EUR
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten



Produktbeschreibung

HP/Compaq DX 2000 MT Mainboard + Blende 351067-001 350286-005 NR146 ver E01

Technische Daten

HP P/N       SP#: 351067-001       AS#: 350286-005

CPU

Intel Pentium 4 Processor with Hyper-Threading Technology and 1 MB L2 Advanced Transfer Cache

Intel Celeron with MMX Technology with 256 KB L2 Advanced Transfer Cache

(2.80A GHz with 533 MHz system bus 1 MB L2 Advanced Transfer Cache; 2.80E GHz with 800 MHz system bus 1 MB L2 Advanced Transfer Cache; 3.0E GHz with 800 MHz system bus 1 MB L2 Advanced Transfer Cache; 2.60 GHz with 400 MHz system bus 256 KB L2 Advanced Transfer Cache; 2.80 GHz with 400 MHz system bus 256 KB L2 Advanced Transfer Cache)

Chipset

Intel 865GV + Intel ICH5

SMSC LPC47M192

Cypress CY28404/ics ics952617

Front Side Bus Frequency

400/533/800 MHz

Memory

4 x DDR1 DIMM sockets (2.5V); 1st/3rd DIMM sockets in black; 2nd/4th DIMM sockets in blue; max. up to 4GB

Support single and dual channel PC3200/PC2700 DDR SDRAM

VGA

Intel Extreme Graphics 2 3D/2D Controller (integrated on the 865GV chipset)

Support is fully compliant with Microsoft standard API such as Direct Draw, GDI/GDI+ and Direct Show

Complete Microsoft DirectX support, including DirectX 8.1; complete OpenGL 1.3 support. Compatible with DirectX 9.

85 Hz at up to 1920 x 1440, 75 Hz at 2048 x 1536. Varies with mode and configuration.

Graphics memory is shared with system memory. Graphics memory usage can vary from 8 to 64 MB depending on the amount of system memory installed and system load. 16 MB is pre-allocated for graphics use at system boot time. Additional memory is allocated for graphics using Intel's Dynamic Video Memory Technology (DVMT) to balance the optimum amount of memory between graphics and other system use. With a 128 MB system, graphics memory usage will be 8 MB to 32 MB depending on system load. With 256 MB or more, graphics memory usage will be 8 MB to 64 MB depending on system load.

Audio

ADI AD1888 2 channel audio

3D audio compliant with AC'97 rev. 2.3

LAN

Intel 82562EZ 10/100 Fast Ethernet LAN

IDE

2 x IDE ports support up to 4 devices

Support Ultra ATA 33/66/100 (IDE1 black, IDE2 white); Support all PIO modes

Expansion Slots

3 x PCI slots

Rear Side I/O Ports

1 x PS/2 keyboard port

1 x PS/2 mouse port

6 x USB 2.0 ports

1 x RJ-45 10/100 port

1 x serial port

1 x parallel port

1 x DB 15 pin analog VGA port

3 x audio ports

On Board I/O Interfaces

1 x ATX power connector

1 x +12V power connector

1 x Floppy connector

1 x Front panel connector, Switch, LED (ON/Flash/OFF)

2 x Fan headers for CPU, chassis, with voltage/fan speed control

1 x CD IN

1 x header to support 2 USB 2.0 ports at front side

1 x MONO-OUT header with amplifier

BIOS

4Mbit flash EEPROM

AMI BIOS, PnP, ACPI, SMBIOS 2.3, Boot Block, DMI

Additional Features

Bootable without keyboard, mouse or monitor

Keyboard/mouse/USB wake up

Support S1, S3, S4 and S5

ACPI status

Hardware monitor capability

CPU fan speed control

Manageability

WfM 2.0, DMI 2.0, SMBus

Industrial Standard

PCI 2.3 compliant; USB 2.0

Power Management

ON 3 phase power solution

Meet Intel FMB 1.5 spec

Form Factor

uATX form factor 245mm x 245mm

4-layer PCB with green color

Lieferumfang

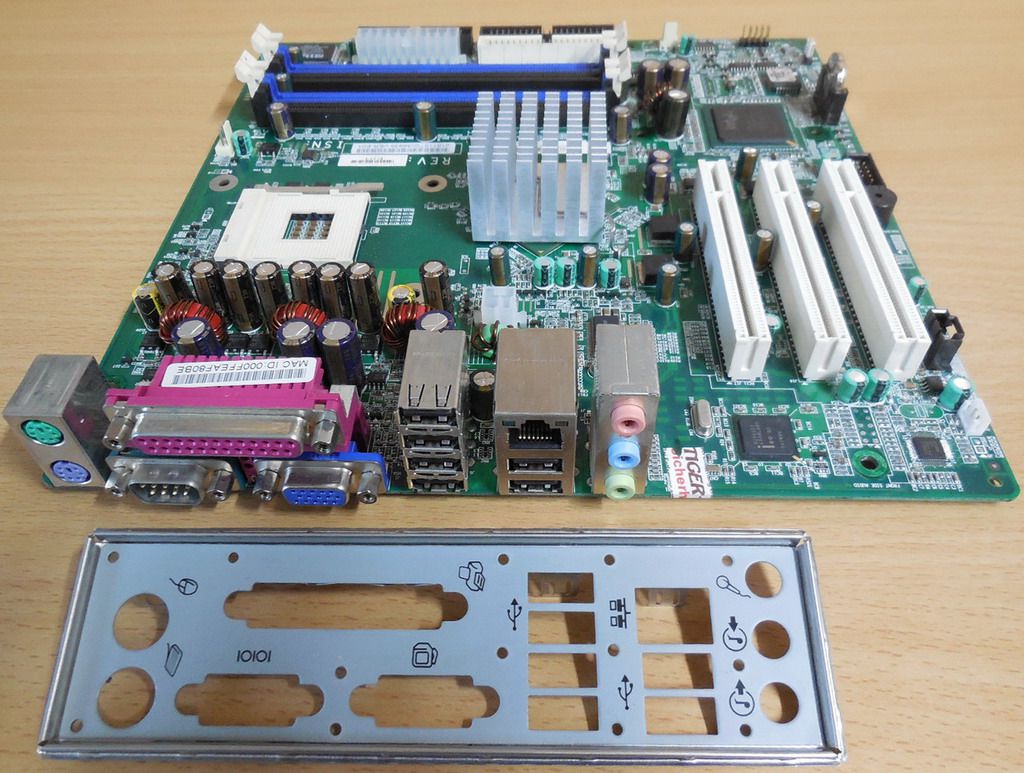

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
