Produktbeschreibung

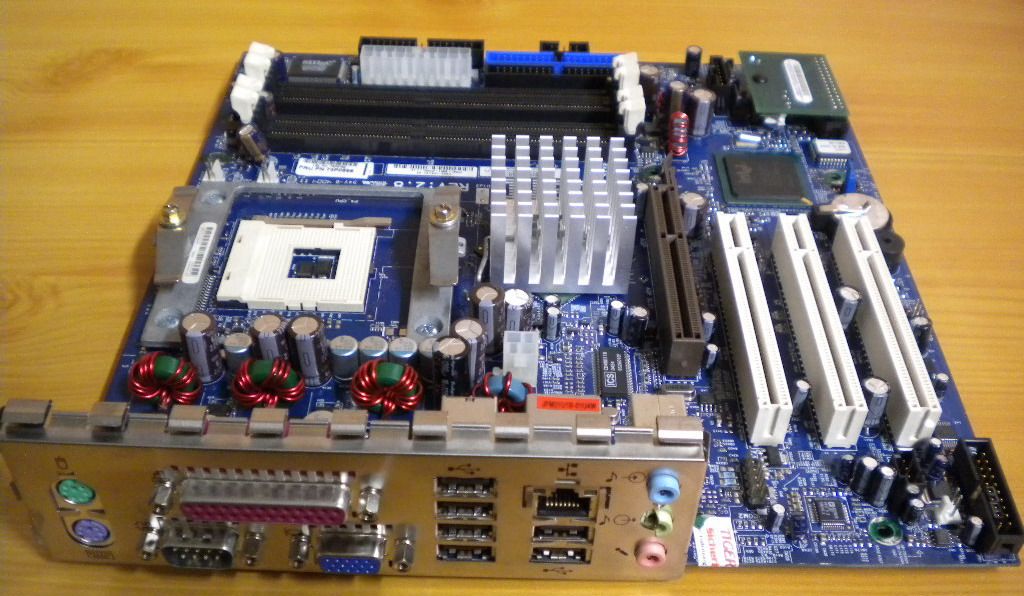

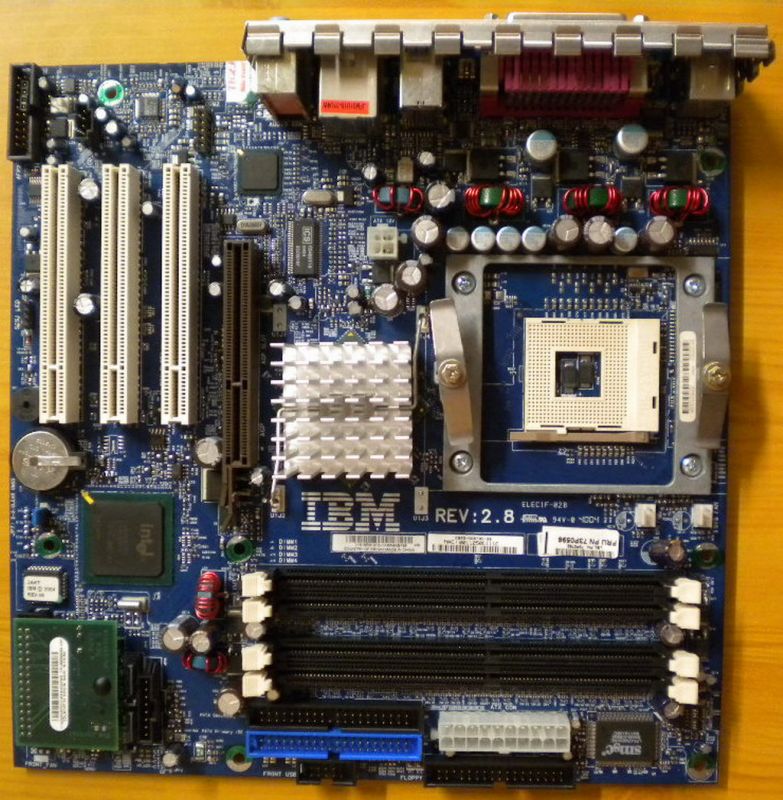

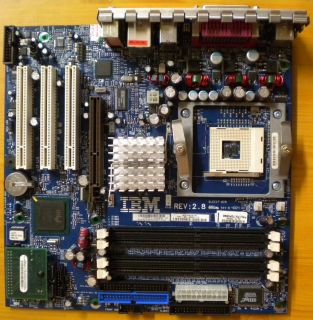

IBM Netvista FRU 73P0596 Rev 2.8 Mainboard + Blende
Sockel 478 AGP LAN SATA
z.B. für NetVista M50, 8189 oder baugleich
Technische Daten
System board / Form factor
mATX
FSB: 800
Processor
Intel® Celeron® with FSB400
Intel® Pentium® 4 HT with FSB400, FSB533, FSB800
Pentium 4 technology is the latest Intel family of processors running at 400MHz or higher on a front side bus with SSE2** (Streaming SIMD Extensions 2) and NetBurst Technology.
Chipsets
Intel 865G chipset
VGA: Intel Extreme Graphics 2
SATA + IDE controller
2x SATA I 1,5 GB/s connector
Enhanced Local Bus IDE controller, ATA 100 IDE device support
Supports up to four IDE devicesMemory
Total of four memory sockets
Memory type: Industry standard DDR memory DIMMs up to DDR400
Maximum system memory supported is 4 GB
Audio
Integrated PCI AC'97 SoundMax Audio Controller
Keyboard and mouse
1x PS/2 Keyboard
Networking
Integrated 10/100 Fast Ethernet with Wake on LAN
External ports
Six (8) USB (6x rear/2x front)
One Ethernet RJ-45
One D-SUB VGA port
One serial 9-pin 16550 compatible
One parallel 25-pin (EPP, ECP), IEEE 1284
Keyboard and mouse ports
Audio line in, headphone out, and microphone in jacks
Slots
One AGP 8X Slot
Three PCI Slots
Weiteres:
1x System FAN; 1x CPU FAN; 1x Front USB header; CMOS Jumper; SCSI LED Connector; Front Panel header;
COM2 header; CD_In
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
