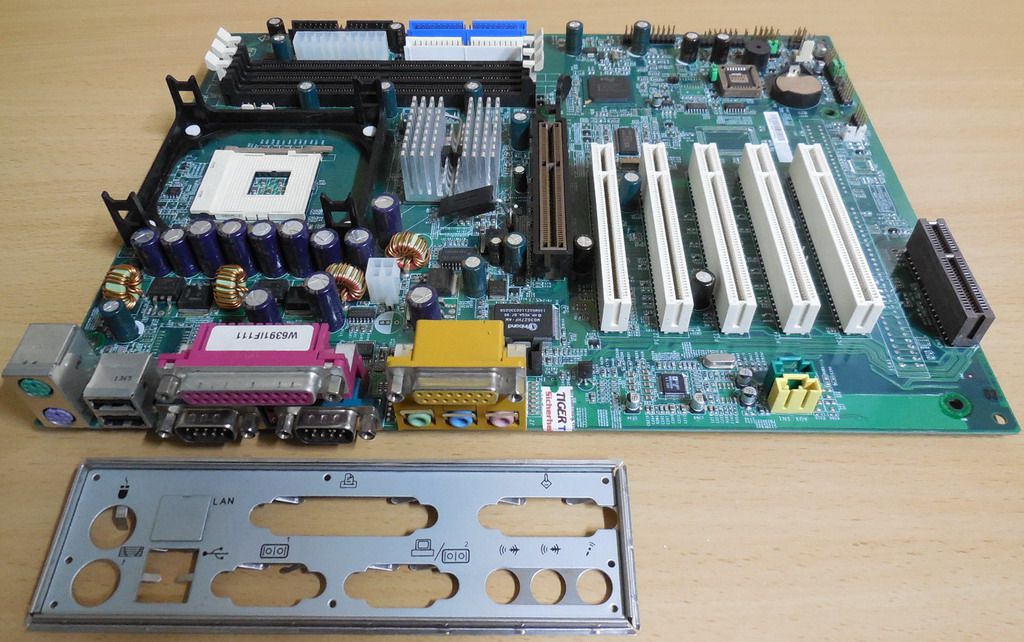

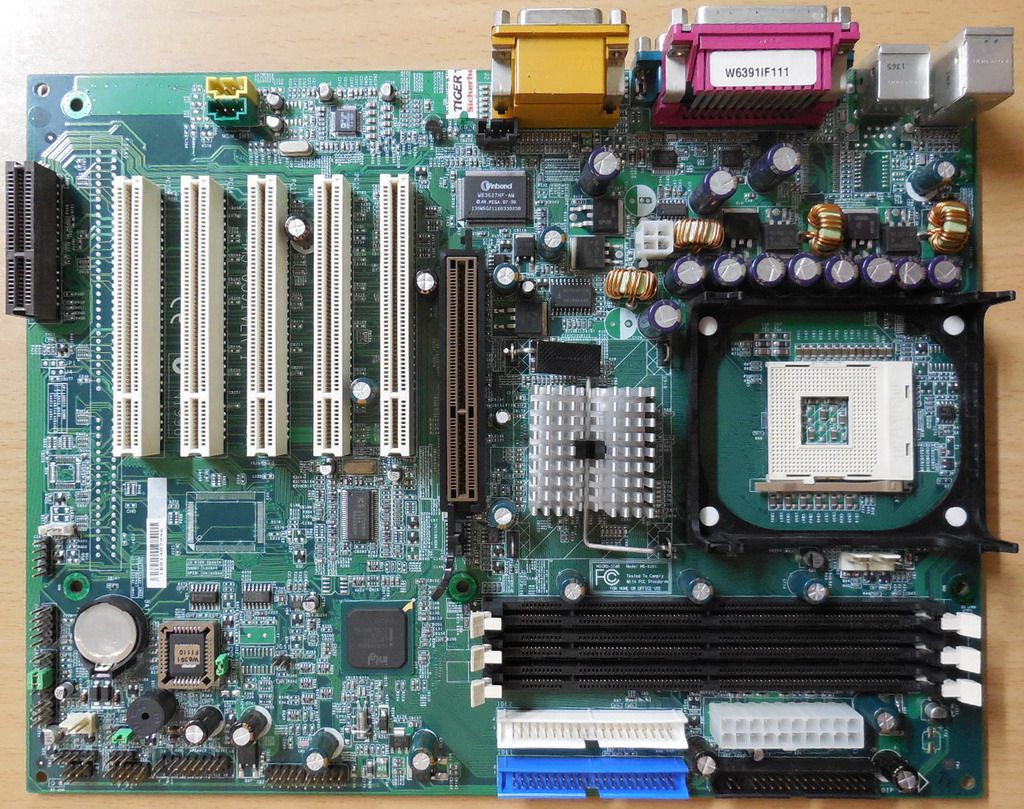

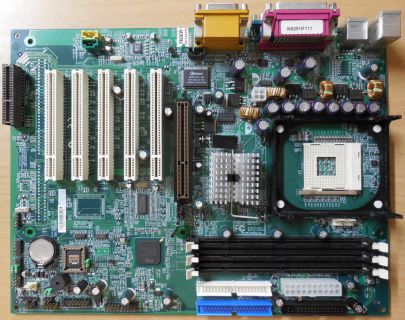

MSI MS-6391 Ver 1 Mainboard +Blende Sockel 478 AGP Audio PCI Seriell SDRAM* m352

MSI MS-6391 Ver 1 Mainboard + Blende Sockel 478 AGP Audio PCI Seriell SDRAM

Technische Daten

CPU

Support Intel Pentium 4 1.3GHz, 1.4GHz and up to 2GHz

Chipset

Intel® 845 chipset (593 FC-BGA)

- Support 400MHz Intel NetBurst micro-architecture bus

- Support SDRAM at 133MHz operation (PC133)

- 100MHz FSB

- AGP 2x/4x universal slot

Intel® ICH2 chipset (360BGA)

- Two full IDE channels, support up to ATA100

- AC' 97 controller integrated

- LPC interface for SIO

- Integrated 10/100 Ethernet

Main Memory

3 x 168-pin SDRAM sockets

Support a total of 3GB memory, using 16/64/128/256/512Mb technology

Slots

1 x AGP 2x/4x slot

5 x PCI 2.2 32-bit Master PCI Bus slots (support 3.3v/5v PCI bus)

1 x CNR (Communication Network Riser) slot

Audio

ICH2 chipset integrated ADI 1885

- AC' 97 compliant

- Support two channel audio

On-Board IDE

An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA66/100 operation modes. Can connect up to four IDE devices.

Rear panel I/O

1 x Parallel port (supports SPP/EPP/ECP mode)

2 x Serial port

1 x PS/2 keyboard port

1 x PS/2 mouse port

2 x USB ports

1 x Game/Midi port

Audio I/O ports

Internal I/O

2 x IDE connectors

1 x FDD connector supports two FDDs with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

2 x USB connectors for additional USB ports

1 x JGL1 connector

1 x CD_In Audio connector

1 x IR1 connector

1 x IR2 connector

1 x JMDM1 connector

2 x Front System Panel connector

1 x JAUDIO1 connector

1 x JAUDIO2 connector

1 x WOL1 connector

1 x AUX_In connector

1 x MDM_In connector

1 x 3-Pin CPU fan connector

1 x 3-Pin Power fan connector

1 x 3-Pin System fan connector

1 x CMOS Jumper

Buzzer

4-pin CPU 12V power connector

20-pin ATX Power connector

BIOS

The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension & Mounting

ATX Form Factor; 6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
