MSI MS-6399 Medion 3000 Ver.1 Mainboard +Blende Sockel 478 Audio LAN AGP* m233

MSI MS-6399 Medion 3000 Ver.1 Mainboard + Blende

Sockel 478 Audio LAN AGP

 Achtung, das Mainboard hat kein Medion Retention Modul und wird ohne Retention Modul verkauft!

Technische Daten

Hersteller: MSI für Medion

Model: MS-6399 (Medion 3000 Ver. 1)

CPU

Support Socket 478 for Intel® Pentium 4(FC-PGA2) processor; Support 1.3GHz, 1.4GHz and up to 2.XGHz

Chipset

Intel® Brookdale chipset

- AGP 4x/2x universal slot

- Support 100MHz FSB

- Support 400MHz Intel NetBurst micro-architecture bus.

Intel® ICH2 chipset (360 BGA)

- AC’97 Controller integrated

- 2 full IDE channels, up to ATA100

- Integrated 10/100Mbit/sec Etherent

- Low pin count interface for Winbond SIO

RAM

Support two 168-pin DIMM sockets;

Support a 32 to 1GB memory using 512Mbit technology; Max. memory size: 2GB

IDE

2 full IDE channels, up to ATA100, An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/ 100 operation modes, Can connect to four IDE devices

LAN

Realtek 8100 single chip fast 10/100 Mb/s Ethernet controller; ACPI, APM supported

Erweiterungssteckplätze

1 x AGP (Accelerated Graphics Port) 2x/4x slot

2 x PCI 2.2 32-bit Master PCI Bus slots, the third PCI can support 2 Master devices; Support 3.3v/5v PCI bus interface

Externe Anschlüsse

1 x PS/2 Maus; 1 x PS/2 Tastatur; 1 x Parallel; 1 x Seriell; 1 x LAN; 2 x USB; 1x Game/Midiport; 4 x Klinke Audio Anschlüsse; 1 x SPDIF-In Coaxial; 1 x SPDIF-Out Coaxial

Interne Anschlüsse

1 x Floppy port (supports two FDD with 360KB, 720KB, 1.44MB and 2.88MB); 1 x CPU FAN connector; 1 x USB Connector; 1 x JAudio Connector; 1 x CMOS Jumper; 1 x Front Panel; 1 x SPDIF connector; 1 x COM connector; 1 x 20-pin System Power connector; 1 x 4-pin CPU Power connector

BIOS

The mainboard BIOS provides “Plug & Play” BIOS that can detect the peripheral devices and expansion cards installed on the board automatically

Support Desktop Management Interface (DMI) function that can record your mainboard specifications

Formfaktor

Micro ATX Form Factor (24.4cm x 22.4cm)

6 mounting holes

Lieferumfang

Das Mainboard ohne Retention Modul, aber mit I/O Blende ohne weiteres Zubehör * gebraucht *

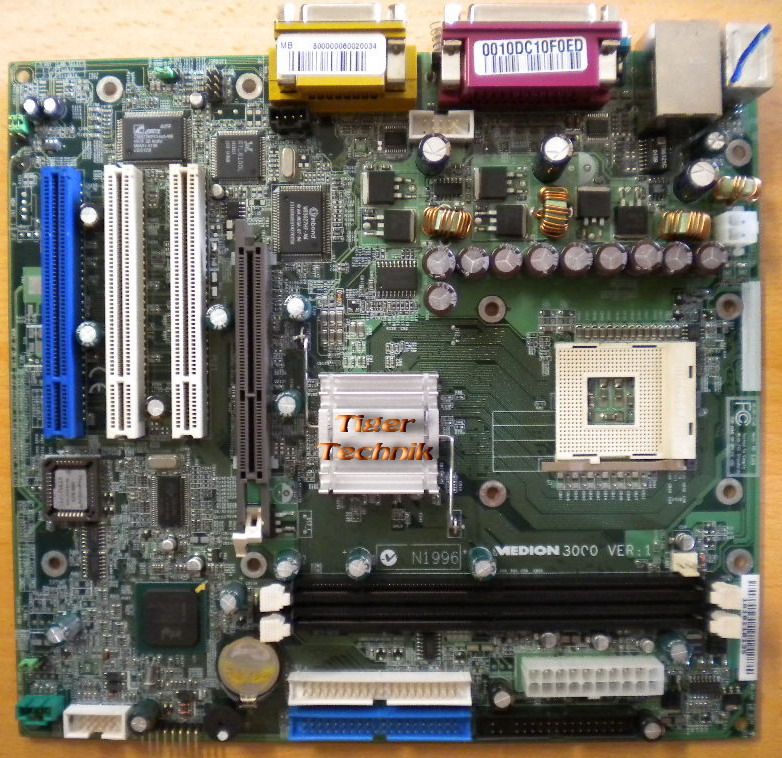

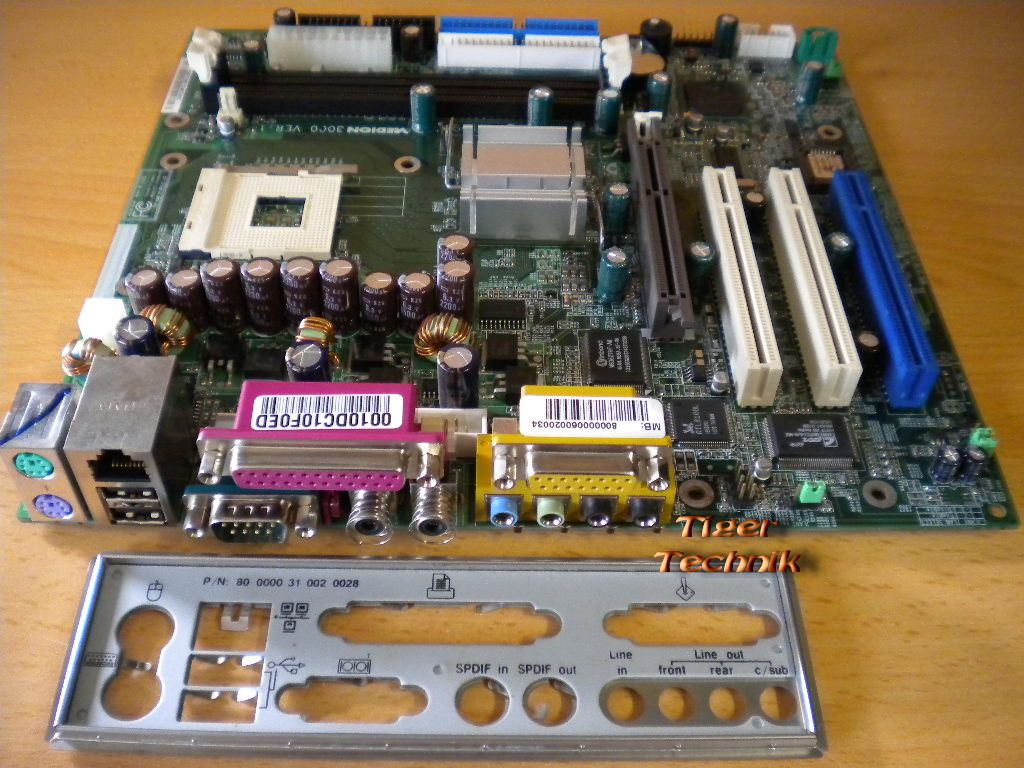

Abbildung ähnlich
