Produktbeschreibung

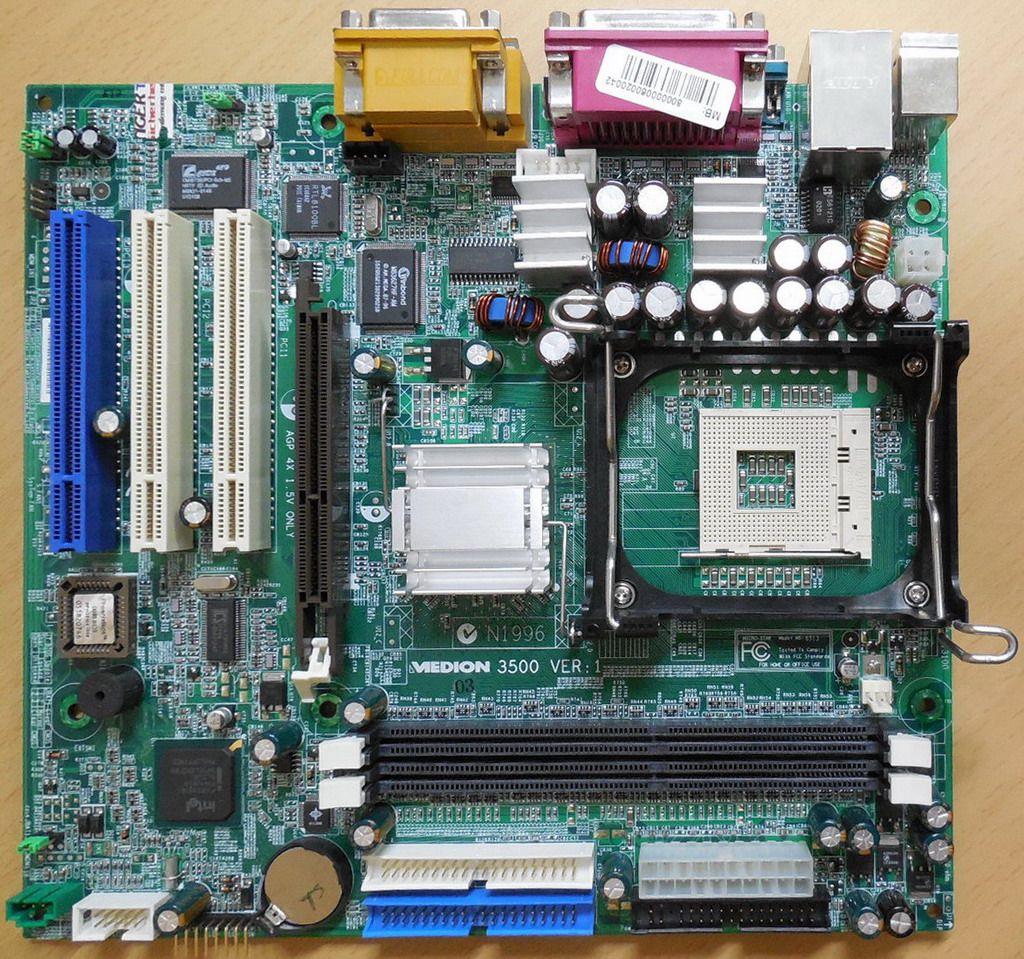

MSI MS-6513 Medion 3500 Ver: 1 Sockel 478 Mainboard + Blende FSB400 DDR266 AGP 4X LAN Audio
Das Sockel 478 Mainboard mit Medion Retentionmodul von MSI! Nur in Verwendung mit einem Medion Kühler sinnvoll.
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4 processors with 400MHz in 478-pin package.
Core frequency 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.2GHz and up (Möglicherweise Bios Update nötig!)
Intel® 845 Northbridge Chipset (593 FC-BGA)
Supports DDR SDRAM at 200/266MHz operation (DDR200/DDR266)
AGTL+ host bus with integrated termination supporting 32-bit host addressing
1.5V AGP interface with 4x data transfer and 4x fast write capability
8-bit, 66MHz 4x hub interface to the Intel ICH2
Intel® ICH2 Southbridge Chipset (360 EBGA)
Upstream hub interface for access to the Intel MCH
2-channel Ultra ATA/100 Bus Master IDE controller
USB controller 1.1 (expanded capabilities for 4 ports)
I/O APIC
SMBus controller
FWH interface
LPC interface
AC’97 2.1 interface
PCI 2.2 interface
Integrated system management controller
Main Memory
Supports four memory banks using two 184-pin DDR DIMMs
Supports up to 2GB PC2100/PC1600 DDR SDRAMs
Supports 2.5v DDR SDRAM
Slots
1 x Accelerated Graphics Port slot (Supports AGP 4x - only 1.5V)
3 x 32-bit PCI 2.2 bus slots (Support 3.3v/5v PCI bus interface; The third PCI slot in BLUE is a Combo-Slot and supports 2 master devices)
On-Board IDE
An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA66/100 operation modes and can connect up to 4 IDE devices
Back Panel I/O Ports
1 x LAN (RJ45)
1 x Serial (COM A)
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x Parallel (SPP/EPP/ECP modes supported)
1 x Audio/Game-Port
2 x USB1.1
1 x 6ch Audio ports (Line-Out Front / Line-Out Rear / Line-In / Center-Bass)
1 x RCA_SPDIF In
1 x RCA_SPDIF Out
Internal I/O Connectors
1 x Center/Bass Setting Jumpers
1 x JLAN1 Jumper
1 x JUSB1 connector for two additional ports
1 x COM B connector
1 x JSPDIF1 connector
1 x JBAT1 CMOS Jumper
1 x 20-pin ATX Power connector
1 x 4-pin 12V CPU Power connector
1 x 3-pin CPU Fan connector
2 x IDE connectors
1 x Floppy Disk connector (supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes)
1 x Buzzer
1 x CD-In connector
1 x JAUDIO1 Front Audio Line connector
1 x Front Panel header
Audio
C-Media CMI8738 PCI 6-channel supports 2/4/6-ch speaker
LAN
Realtek® RTL8100BL single chip Fast Ethernet LAN controller
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
Micro ATX Form Factor; 24.4 cm x 22.4 cm
Mounting
6 mounting holes
Lieferumfang

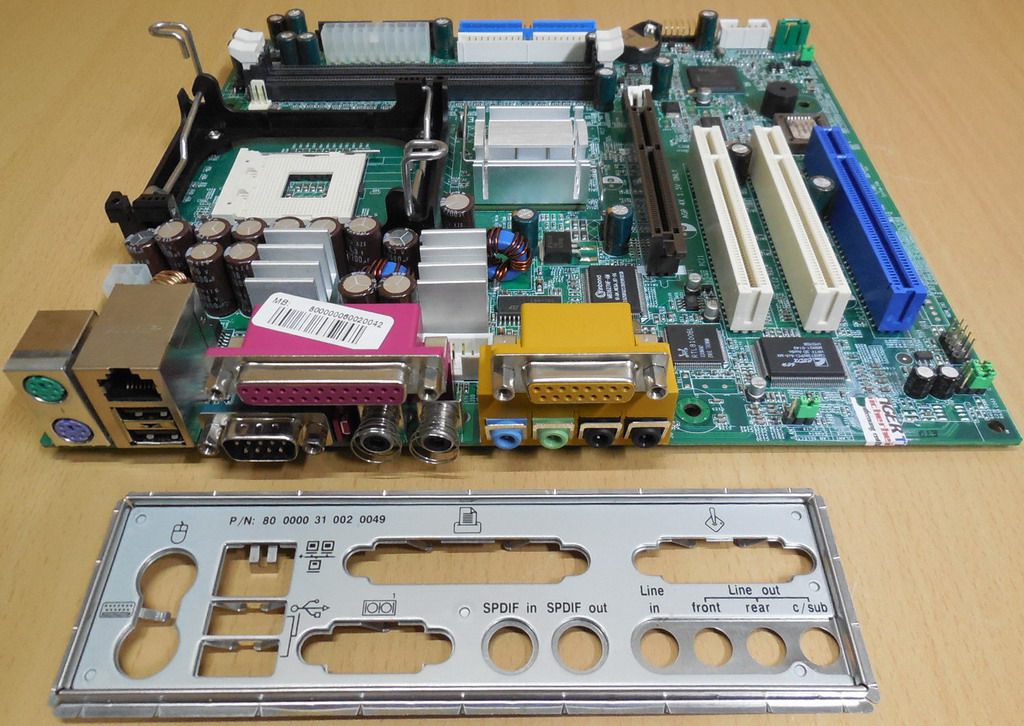

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
