MSI MS-6719 Ver. 1.1 Mainboard Sockel 478 AGP PCI VGA LAN + Blende* m278

MSI MS-6719 Ver. 1.1 Mainboard Sockel 478

AGP PCI VGA LAN + Blende

Technische Daten:

Hersteller: MSI für Medion

Model: MS-6719 Ver. 1.1

Sockel: Intel 478

CPU: Supports Socket 478 for P4/Celeron processors (Willimate and Northwood core) with 400/533 MHz,

Core Frequency from 1.3 GHz to 2.8 GHz and up

Chipsatz: SiS® 651 chipset, SiS® 962 chipset

RAM: Supports two 184-pin DDR DIMMs, Supports up to 2GB PC2700/2100/1600 DDR SDRAMs, Supports 2.5v DDR SDRAM

Interne Anschlüsse: One AGP (Accelerated Graphics Port) 4x/8x slot, Three 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).

On-BoardIDE: Dual-IDE controller integrated in SiS 963 chipset, Supports PIO, Bus Master and Ultra DMA133/100/66/33 operation modes, Can connect up to four IDE devices

Anschlüsse: 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes, 1 serial port, 1 parallel port, 3 in vertical for 6 channels Line-out, 2 in vertical for MIC & Linein, 1 standard 1394 connector, 5 USB ports (3 front + 2 rear), 1 RJ-45 Lan Jack, PS2 KB/Mouse

Audio: S/W RealTek ALC650 6-channel audio codec with SPDIF in/out

LAN: Realtek RTL8201BL

BIOS: The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Formfaktor: Micro-ATX (24.4 cm x 23.0 cm)

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

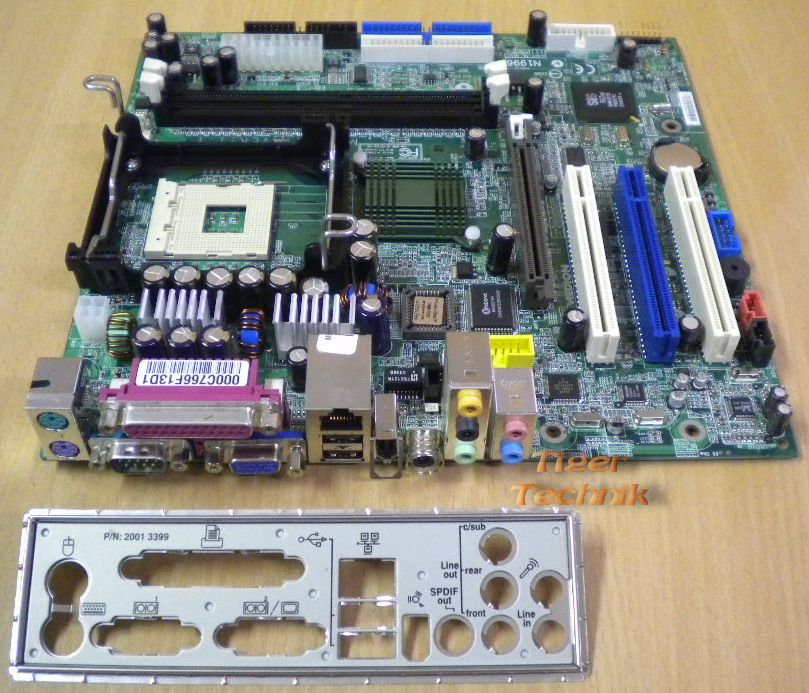

Abbildung ähnlich
