Produktbeschreibung

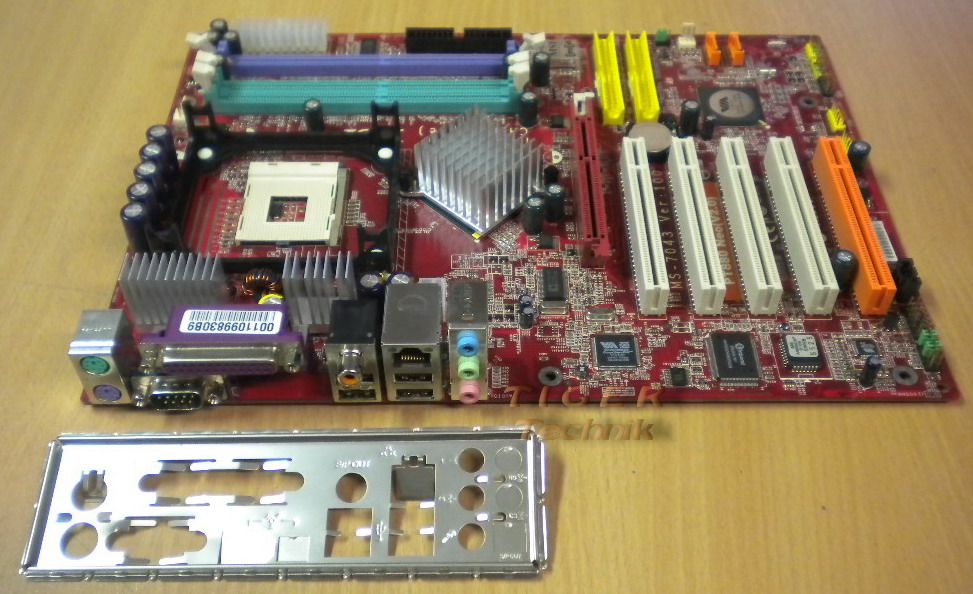

MSI MS-7043 PT880 Neo V2.0 S478 FSB800 SATA AGP8x
Mainboard + Blende
Technische Daten:
CPU
Supports Intel® P4 Northwood/Prescott (Socket 478) processors
FSB 400 (for Northwood only), 533, 800MHz
Supports up to 3.4GHz or higher speed
Chipset
VIA® PT880 chipset
- Supports FSB 800/533/400MHz
- Supports AGP 8X interface
- Supports DDR 400/333/266 memory interface
VIA® VT8237 chipset
- High Bandwidth V-link Client controller
- Integrated Faster Ethernet LPC
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI
- Supports Serial ATA
- Supports USB2.0
Main Memory
Supports six memory banks using three 184-pin DDR DIMMs
Supports dual-channel memory
Supports a maximum memory size up to 3GB
Supports 2.5v DDR SDRAM DIMM
Slots
One AGP (Accelerated Graphics Port) slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3V not supported)
Five 32-bit Master PCI bus slots (support 3.3v/5v PCI bus interface)
Onboard IDE
An IDE controller integrated in the VIA® VT8237 chipset
- Supports IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes
- Can connect up to four Ultra ATA drives
Onboard Serial ATA
Serial ATA/150 controller integrated in the VIA® VT8237 chipset
- Up to 150MB/sec transfer rate
- Can connect up to two Serial ATA drives
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port (COM A)
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB 2.0 ports (Rear x 4 / Front x 4)
- 1 RJ45 LAN jack
- 1 D-Bracket2 pinheader (Optional)
- 1 S-Bracket pinheader (Optional)
- 1 Line-In / Line-Out /Mic
- 1 Coaxial SPDIF out (Optional)
Audio
AC97 link controller integrated in VT8237
VIA® VT1617 6-channel audio codec
- Compliance with AC97 v2.2 Spec
- Meets PC2001 audio performance requirement
LAN
VIA® VT6122 Gigabit LAN controller
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications
Dimension
ATX Form Factor: 30.5cm x 20.4cm
Mounting
6 standard mounting holes
Lieferumfang
MSI MS-7043 Mainboard+Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
