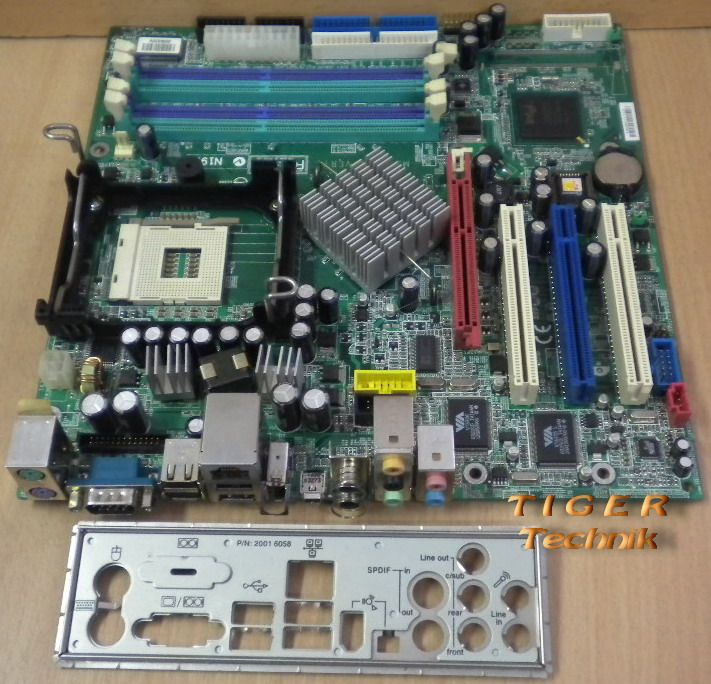

MSI Medion MS-6747 Ver. 1 Sockel 478 Mainboard + Blende* m173

MSI Medion MS-6747 Ver. 1 Sockel 478

Mainboard + Blende

Technische Daten:

CPU
Supports Socket 478 for Intel® Pentium 4 (Socket 478) processor
Supports Socket 478 for Intel® Northwood/Prescott processor
Supports up to 3.2 GHz or higher speed P4 processor

Chipsets
Intel® Springdale-865PE chipset
- Supports AGP 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (not supports 3.3V)
- Supports 133/166/200MHz memory FSB
- Supports 400/533/800MHz Intel NetBurst micro-architecture bus.
Intel® ICH5/ICH5R chipset (421 mBGA)
- AC’97 2.3 interface
- 8 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- 2 serial ATA Host Controllers (Optional)
- RAID 0 supported by ICH5R (Optional)

Main Memory
Support eight memory banks using four 184-pin unbuffered DIMM
Max memory size is 4GB w/o ECC for (1GB/slot)
Support 2.6V DDR DIMM

Slots
Three 32-bit Master PCI Bus slot
One mini PCI slot (Optional)
One AGP(Accelerated Graphic Port) slot

On-Board IDE
An IDE controller on the ICH5 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA66/100/133 operation modes.
Can connect up to four IDE devices.

On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88 Mbytes.
- 1 serial port, 2 serial ports
- 1 parallel port supports SPP/EPP/ECP mode
- 7 USB 2.0 / 1.1 ports (Rear*4 / Front*3)
- 1 Front USB 2.0 / 1.1 port for Card Reader
- 1 Line-In / 3 Line-Out / 1 Mic
- 1 RJ45 connector
- 2 1394 ports (4 Pins*1 / 6 Pins*1)
- 1 SPDIF OUT/IN

Audio
S/W C-Media 9739A 5.1 channel with SPDIF in/out.

LAN (optional)
VIA® VT6105 LAN controller

BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.

Dimension
M-ATX Form Factor: 24.38 cm (L)  x  24.38 cm (W)

Mounting
6 mounting holes

Others
Support STR/STD
PC 2001 compliant

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
