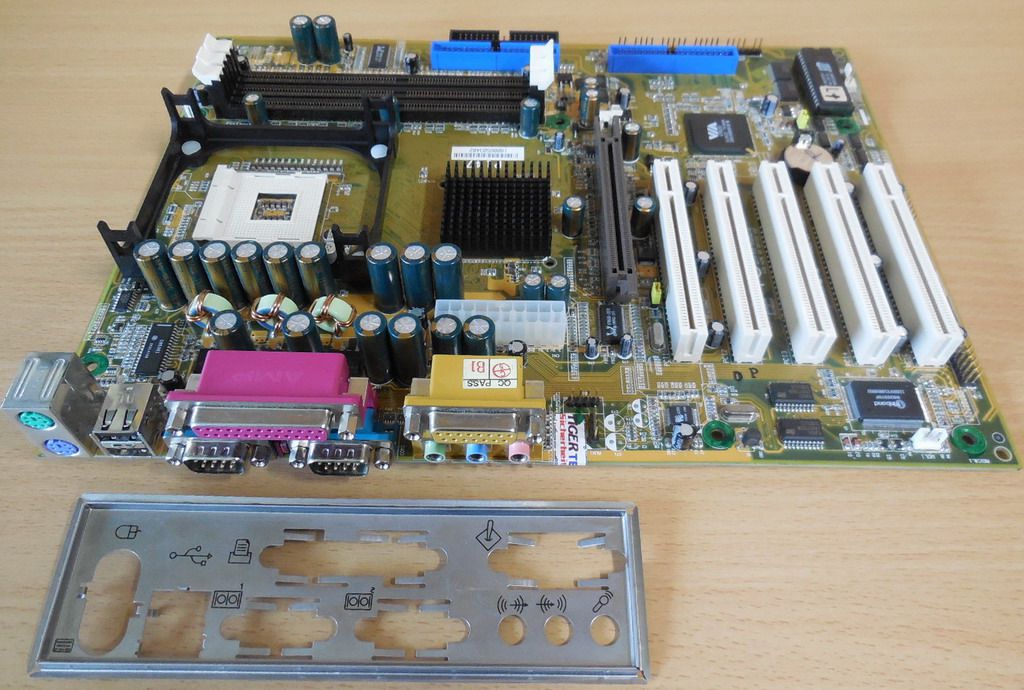

VIA P147 Rev 0.1 Mainboard + Blende Sockel 478 DDR IDE AGP Audio Gameport* m900

VIA P147 Rev 0.1 Mainboard + Blende Sockel 478 DDR IDE AGP Audio Gameport

Technische Daten

CPU

Supports Intel Pentium 4 at 1.5 ~ 2.0GHz

Supports socket 478 P4 at 100-132 MHz external clock speed with key-in function

Chipset

VIA P4X266 chipset

Memory

Supports 3x DDR DIMM RAM (184pins) at PC1600/PC2100; max. up to 3GB DDR RAM

Audio

Built-in AC97 Digital Audio

Dual full-duplex Direct Sound channels

H/W Sound Blaster Pro for DOS legacy compatibility

FM synthesis for legacy compatibility

Support game and MIDI port

Slots

1 x AGP slot

5 x PCI slots

Storage

Supports ATAPI (e.g. CD-ROM) devices on IDE 1, 2 interfaces.

2 independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra ATA-33/66/100 devices.

Intern

Echtzeituhr/Kalender mit Batteriepufferung

2 x IDE connectors

1 x Floppy connector

1 x 3-pin CPU FAN connector

1 x 3-pin System FAN connector

1 x 3-pin Power FAN connector

1 x Wake-On-LAN connector

1 x CD-In connector

1 x AUX1 connector

2 x USB connectors for additional 4 USB Ports

1 x CMOS Jumper

1 x FSB Jumper

1 x Front Panel connector

20-pin ATX Power Supply Connector

Rear Panel I/O

1 x PS/2 keyboard

1 x PS/2 mouse

1 x Parallel (EPP, ECP, SPP)

2 x Seriell

2 x USB

Audio Anschlüsse: 1 x Line-In, 1 x Line-Out, 1 x Mikrofon, 1 x Midi/Gameport

BIOS

2Mb Award Plug & Play BIOS with unique "SmartFlash" designed. By simply pressing [Alt] [F2] to execute the built in "Award Flash Program" , which will upgrade to the current BIOS as they are released

Vcore (-0.1v ~ +0.2v @+0.025) adjustable in BIOS

DIMM Voltage (0.00v ~ 0.35v @+0.05v) adjustable in BIOS

Multiplier (8x ~ 23x @+1x) adjustable in BIOS.

Power Management

Software power-down when using Windows 95/98/2000/ME.

Supports ring-in feature (remote power-on through external modem which allows system to be turned on remotely).

Resume by alarm which allows your system to turn on at a pre-selected time.

Power Loss Recovery which in the event of a power interruption, your system will automatically turn itself back on without user attention.

Supports CPU Hardware sleep and System Management Mode (SMM).

Supports the CPU, PWR and Chassis fan Auto Stop in sleep mode.

Supports the System Power LED (Panel) blinks in the sleep mode.

Form Factor

225 mm x 305mm ATX size.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
