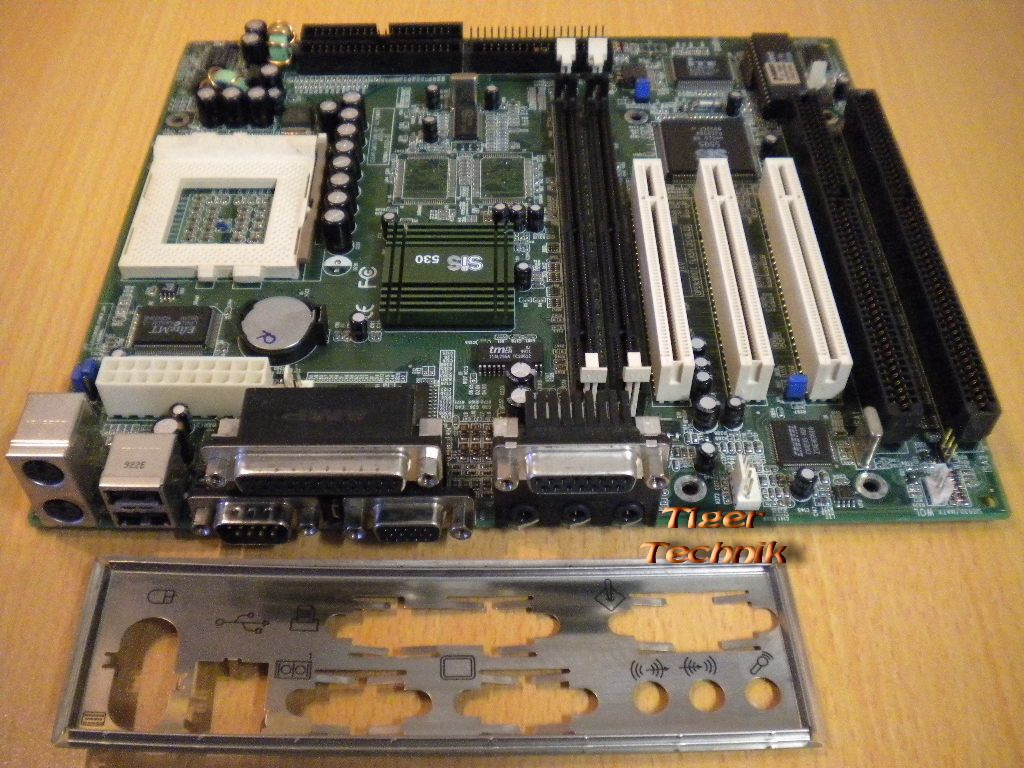

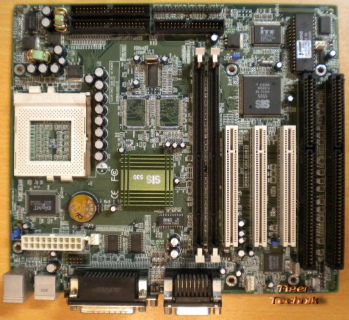

Legend QDI Superb 1 Rev 1.0(S1.4) Mainboard + Blende Sockel 7 VGA 2xISA SDR*m454
Für eine größere Ansicht klicken Sie auf das Vorschaubild
Legend QDI Superb 1 Rev 1.0(S1.4) Mainboard + Blende Sockel 7 VGA 2xISA SDR*m454

Legend QDI Superb 1 Rev 1.0(S1.4) Mainboard + Blende Sockel 7 VGA 2xISA SDR*m454

Art.Nr: m454
Lieferzeit: 3 Tage
Artikelzustand: gebraucht

Dieser Artikel ist momentan nicht verfügbar
49,95 €
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten

Produktbeschreibung

Legend QDI Superb 1 Rev 1.0(S1.4) Mainboard

Chipset
SiS530 Integrates Host to PCI bridge, PCI interface, L2 cache controller, 2D/3D VGA controller and PCI IDE controller
SiS5595 integrates the PCI-to ISA bridge, KBC, USB, RTC, SMBUS, ACPI/APM compatible PMU, system environment monitoring for 1 temperature, 2 fan speed, 5 voltage.
Bus Type 3 PCI slots
2 ISA slots
CPU Clock = Bus speed x 2 up to x5.5
Intel Pentium processors P54C/P55C
AMDK5/K6/K6-II/K6-III
Cyrix and Cyrix M-II
Ready for Rise CPU
System Memory Two 3.3V 168 Pin unbuffered 100/66MHz DIMM slots
Support up to 1GB SDRAM
Support syn Host/DRAM clocking configuration.
Bus Speed 66/75/83/95/100 MHz
BIOS PnP Award BIOS
2MB flash BIOS
ACPI support
SpeedEasy, LogoEasy
On board IDE Independent timing of up to 4 drivers
Ultra DMA33/66 support transfer rate up to 33/66MB/sec
I/O Feature ITE8661 chip
1 floppy, 2 serial port
1 parallel port
IrDA TX/RX support
Onchip AGP Compatible to AGP1.0 and PCI2.2 configuration.
Non-UMA mode, with 4MB SGRAM.
Onboard Audio CS4235 audio chip
Compatible with sound blaster and windows sound system, software wavetable.
Advanced Feature Supports wakeup on LAN
PS2 keyboard power on (by password)
Trend ChipAway Virus on guard
On board switching voltage regulator with VID(support 1.3V to 3.5V)
Provides infrared interface
Supports auto fan off when system enters suspend mode
Green Function Support ACPI and OS directed Power Management
Low Power mode(slowdown, suspend to HD)
Modem Ring on, WOL, KB Power on2 fan speed, CPU temperature, 4 voltage monitoring
Certificates NSTL Year 2000 Compliant
Board Size 244x210 mm



Lieferumfang

Das Mainboard mit Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
