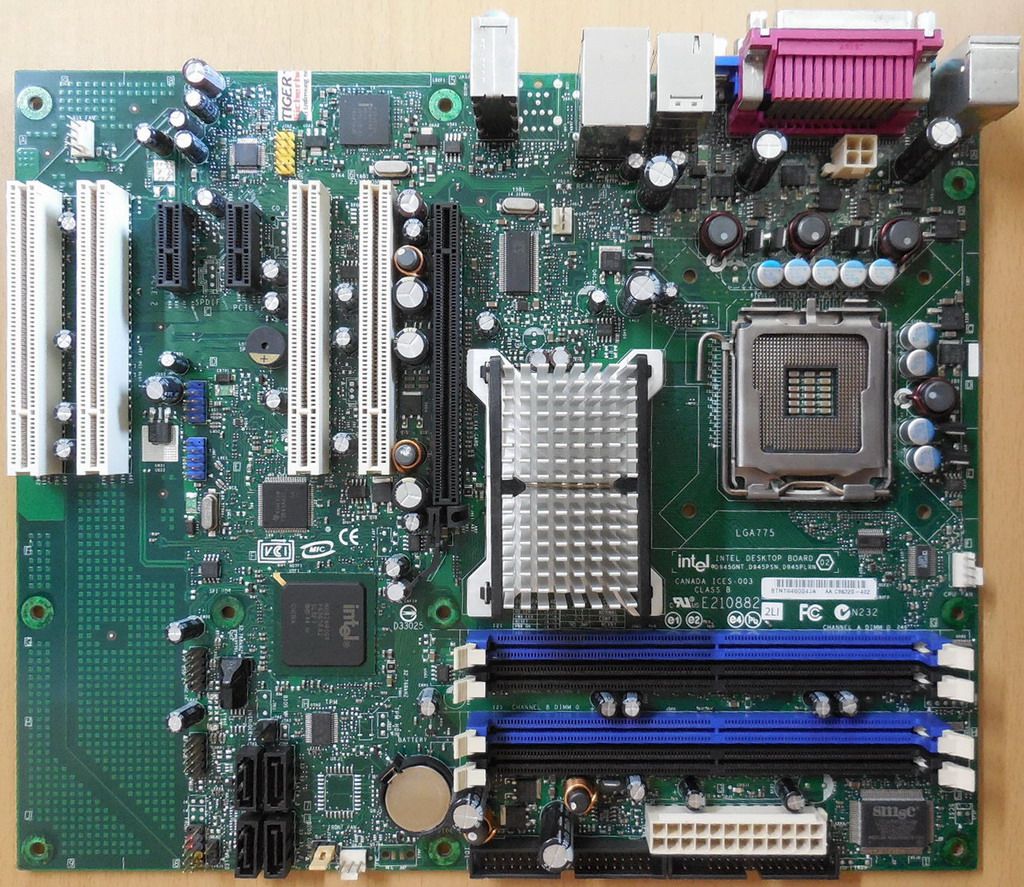

Intel D945GNT Rev C96320-402 Mainboard +Blende Sockel 775 PCIe SATA DDR2* m1068

Intel D945GNT Rev C96320-402 Mainboard +Blende Sockel 775 PCIe SATA DDR2 Gigabit LAN USB2.0 IEEE1394 FireWire SATA

Technische Daten

CPU

Support for an Intel® processor in the LGA775 package (please check the Intel Website for CPU Support List)

Chipset

Intel® 945G Express Chipset bestehend aus:

Intel® 82945G Graphics and Memory Controller Hub (GMCH) with Direct Media Interface

Intel® 82801GR I/O Controller Hub (ICH7R) supporting Intel® Matrix Storage Technology

Firmware Hub (FWH)

Memory

4 x 240-pin, 1.8 V SDRAM Dual Inline Memory Module (DIMM) sockets

667/533/400 MHz single or dual channel DDR2 SDRAM interface

Designed to support up to 4 GB of system memory

Note       System resources (such as PCI and PCI Express*) require physical memory address locations that reduce available memory addresses above 3 GB. This may result in less than 4 GB of memory being available to the operating system and applications. For the latest list of tested memory, refer to the Intel World Wide Website.

Expansion Capabilities

4 x PCI bus add-in card connectors (SMBus routed to PCI bus 2)

1 x PCI Express x16 connector

2 x PCI Express x1 connectors

Video

Intel 945G Express Chipset with Intel® Graphics Media Accelerator 950

Audio

Intel® High Definition Audio interface by SigmaTel STAC9220X5 Codec

Storage

4 x SATAII 3.0 Gb/s ports via ICH7R

1 x IDE interface with ATA-66/100 support for up to 2 devices

LAN

Intel® 82573V Gigabit Ethernet Controller with RJ-45 connector

USB

8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

IEEE1394 FireWire

Up to three IEEE 1394a ports (1 x at back panel; 2 x internal ports by header)

Internal I/O Connectors

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x 4-pin CPU Fan connector

1 x 3-pin Front Fan connector

1 x 4-pin AUX Fan connector

1 x 3-pin Rear Fan connector

1 x Front Panel connector

1 x Power LED connector

2 x USB2.0 connectors support additional 4 USB2.0 ports

2 x IEEE1394 FireWire connectors

4 x SATAII connectors

1 x IDE connector

1 x FDD Floppy connector

1 x Chassis Intrusion header

1 x Bios Configuration Jumper

1 x Front Audio connector

1 x Buzzer

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Parallel port

1 x Seriell port

1 x Sub-D VGA port

1 x RJ45 port

4 x USB 2.0/1.1

1 x IEEE1394 FireWire port

3 x Audio ports (Line-in / Line-out / MIC)

BIOS

Intel® Platform Innovation Framework for extensible firmware interface

4 Mbit symmetrical flash memory

Support for SMBIOS

Intel® Rapid BIOS Boot

Intel® Express BIOS Update

Hardware Management

Trusted Platform Module

Intel® Active Management Technology

Hardware monitor with       Three fan sensing inputs used to monitor fan activity, Remote diode temperature sensing, Intel® Precision Cooling Technology fan speed control, Voltage sensing to detect out of range values

Power Management

Support for Advanced Configuration and Power Interface (ACPI)

Suspend to RAM (STR)

Wake on USB, PCI, PCI Express, PS/2, LAN, and front panel

Form Factor

ATX; ca. 12.00" x 9.60"

Supported Operating Systems

Microsoft Vista Home Premium, Vista Home Premium 64-bit edition, Vista Home Basic, Vista Home Basic 64-bit edition, Windows XP Media Center Edition 2005, Windows XP Professional, Windows XP Professional x64 Edition, Windows XP Home Edition, Windows 2000

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
