Produktbeschreibung

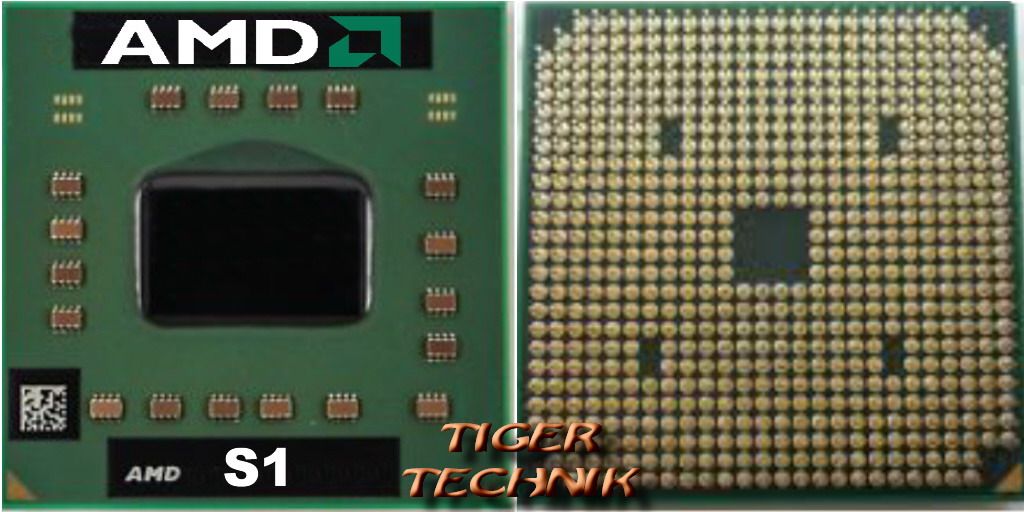

Notebook CPU Prozessor AMD Phenom II N930
HMN930DCR42GM Quad Core 4x 2GHz Sockel S1
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Mobile |
Family | AMD Phenom II Quad-Core Mobile |
Model number | N930 |
CPU part number | HMN930DCR42GM is an OEM/tray microprocessor |
Stepping codes | AADHC AD NADHC AD |
Frequency | 2000 MHz |
Bus speed | One 1800 MHz 16-bit HyperTransport link (3.6 GT/s) |
Clock multiplier | 10 |
Package | 638-pin lidless organic micro Pin Grid Array (UOL638) |
AMD Package numbers | 30600, 30605 |
Socket | Socket S1 (S1g4) |
Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
Weight | 0.2oz / 5.7g (measured); 0.2oz / 6.5g (by specifications) |
Introduction date | May 12, 2010 |
End-of-Life date | Last order date is end of 3rd quarter 2011; Last shipment date is end of 1st quarter 2012 |
Architecture / Microarchitecture | |
Microarchitecture | K10 |
Platform | Danube |
Processor core | Champlain |
Core stepping | BL-C3 |
CPUID | 100F53 |
Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
Data width | 64 bit |
The number of CPU cores | 4 |
The number of threads | 4 |
Floating Point Unit | Integrated, 128-bit wide |
Level 1 cache size | 4 x 64 KB 2-way set associative instruction caches; 4 x 64 KB 2-way set associative data caches |
Level 2 cache size | 4 x 512 KB 16-way set associative caches |
Level 3 cache size | None |
Cache latency [1] | 3 (L1 cache)1; 5 (L2 cache) |
Multiprocessing | Uniprocessor |
Features | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; SSE4a; AMD64 / AMD 64-bit technology; EVP / Enhanced Virus Protection; AMD-V / AMD Virtualization technology |
Low power features | PowerNow! |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport technology 3.0 |
Electrical / Thermal parameters | |
Thermal Design Power | 35 Watt |
Notes on AMD Phenom II N930 | |
[1] - These characteristics were measured on a single CPU, and they can vary slightly for other processors with the same model number | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
