Produktbeschreibung

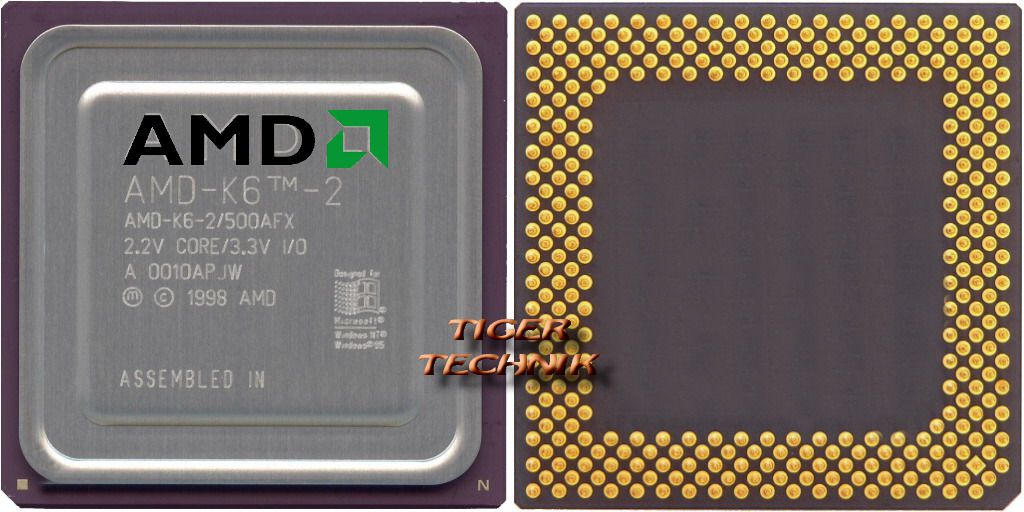

CPU Prozessor AMD K6-2 500AFX 500MHz FSB100 Sockel Super 7 AMD-K6-2/500AFX
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD K6-2 |
CPU part number | AMD-K6-2/500AFX is an OEM/tray microprocessor |
Frequency | 500 MHz |
Bus speed | 100 MHz |
Clock multiplier | 5 |
Package | 321-pin ceramic staggered PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package number | 26351 |
Socket | Super 7 |
Introduction date | 30-Aug-99 |
Price at introduction | $167 |
Architecture / Microarchitecture | |
Microarchitecture | K6 |
Processor core | CXT |
CPUID | 58C |
Manufacturing process | 0.25 micron; 9.3 million transistors |
Data width | 32 bit |
Floating Point Unit | Integrated |
Level 1 cache size | 32 KB code with 20 KB pre-decode cache; 32 KB writeback data |
Physical memory | 4 GB |
Pipeline | 6 stage |
Extensions and Technologies | MMX instructions; 3DNow! technology |
Low power features | Halt state; Stop Grant state; Stop Grant Inquire state; Stop Clock state |
Electrical / Thermal parameters | |
V core | 2.2V ± 0.1V |
Min / Recommended / Max V I/O or secondary | 3.135V / 3.3V / 3.6V |
Minimum / Maximum operating temperature | 0°C - 65°C |
Minimum / Typical / Maximum power dissipation | 4 Watt (Stop Clock mode) / 12.45 Watt / 20.75 Watt |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
