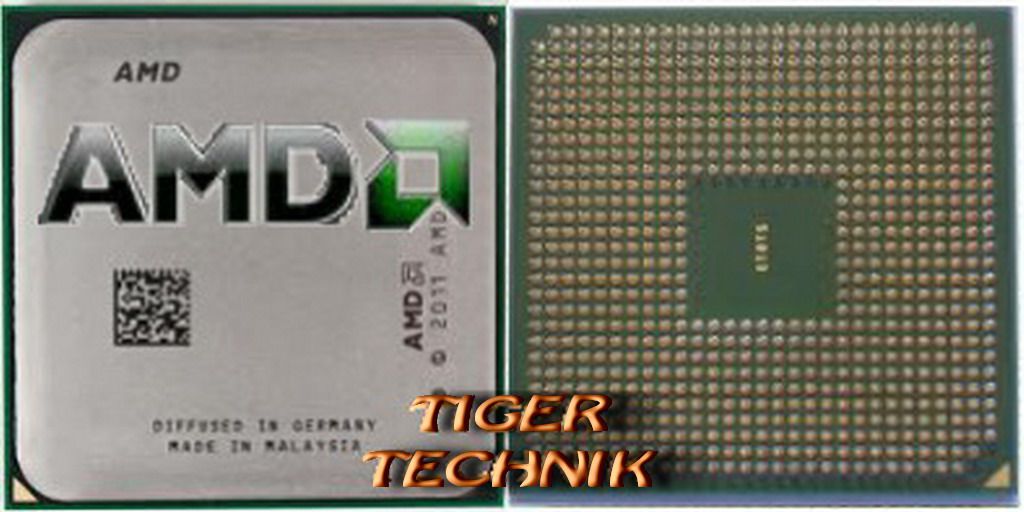

CPU Prozessor AMD Athlon 64 3200+ ADA3200AEP4AX FSB800 512KB Sockel 754* c64

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon 64

Model number

3200+

CPU part numbers

ADA3200AEP4AX is an OEM/tray microprocessor; ADA3200AXBOX is a boxed microprocessor with fan and heatsink

Stepping codes

AAAPC   CBAEC   CBASC   CBAZC   LBAZC

Frequency

3200+ (rated); 2200 MHz (real)

Clock multiplier

11

Package

754-pin lidded microPGA; 1.57" x 1.57" (4 cm x 4 cm)

AMD Package number

27962

Socket

Socket 754

Architecture / Microarchitecture

Microarchitecture

K8

Processor core

NewCastle

Core stepping

DH-CG

CPUID

FC0

Manufacturing process

0.13 micron silicon-on-insulator (SOI) technology

Data width

64 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache

Level 2 cache size

512 KB exclusive 16-way set associative cache

Physical memory

1 TB

Virtual memory

256 TB

Multiprocessing

Uniprocessor

Extensions and Technologies

MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; AMD64 / AMD 64-bit technology

Security Features

EVP / Enhanced Virus Protection

Low power features

Halt state; Stop Grant state; Cool'n'Quiet technology

Integrated peripherals / components

Integrated graphics

None

Memory controller

The number of controllers: 1
Memory channels: 1
Supported memory: DDR

Other peripherals

One 16-bit HyperTransport link with speeds up to 800 MHz

Electrical / Thermal parameters

V core

1.5V

Maximum operating temperature

70°C

Thermal Design Power

89 Watt

Notes on AMD Athlon 64 3200+ (rev. CG, AX)

In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 22 Watt
