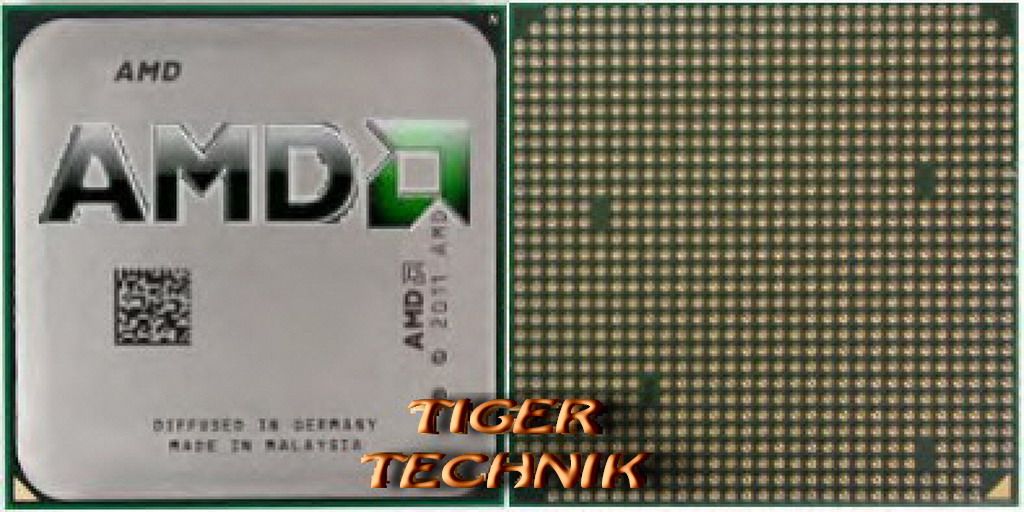

CPU Prozessor AMD Athlon 64 3200+ ADA3200DKA4CG FSB1000 512KB Sockel 939* c154

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon 64

Model number

3200+

CPU part numbers

ADA3200DKA4CG is an OEM/tray microprocessor; ADA3200CGBOX is a boxed microprocessor

Stepping code

CDBHE

Frequency

3200+ (rated); 2000 MHz (real)

Clock multiplier

10

Package

939-pin lidded organic microPGA; 1.57" x 1.57" (4 cm x 4 cm)

Socket

Socket 939

Architecture / Microarchitecture

Microarchitecture

K8

Processor core

Manchester

Core stepping

E4

CPUID

30FF2

Manufacturing process

0.09 micron silicon-on-insulator (SOI) technology

Data width

64 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache

Level 2 cache size

512 KB exclusive 16-way set associative cache

Physical memory

1 TB

Virtual memory

256 TB

Multiprocessing

Uniprocessor

Features

MMX instructionsExtensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, AMD64 / AMD 64-bit technology, EVP / Enhanced Virus Protection

Low power features

Halt state, Stop Grant state, Cool'n'Quiet technology

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR

Other peripherals

One 16-bit HyperTransport link with speeds up to 1000 MHz

Electrical / Thermal parameters

V core

1.35V

Maximum operating temperature

49°C - 65°C

Thermal Design Power

67 Watt

Notes on AMD Athlon 64 3200+ (rev. E4)

In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 28.6 Watt
