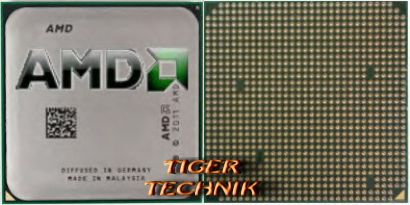

CPU Prozessor AMD Athlon 64 3500+ ADA3500DIK4BI FSB1000 Sockel 939* c158

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon 64

Model number  ?

3500+

CPU part numbers

• ADA3500DIK4BI is an OEM/tray microprocessor
• ADA3500BIBOX is a boxed microprocessor

Stepping codes

CBBFD   CBBID   LBBID

Frequency  ?

3500+ (rated)
2200 MHz (real)

Clock multiplier  ?

11

Package

939-pin lidded organic microPGA
1.57" x 1.57" (4 cm x 4 cm)

Socket

Socket 939

Architecture / Microarchitecture

Microarchitecture

K8

Processor core  ?

Winchester

Core stepping  ?

DH-D0

CPUID

10FF0

Manufacturing process

0.09 micron silicon-on-insulator (SOI) technology

Data width

64 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size  ?

64 KB 2-way set associative instruction cache
64 KB 2-way set associative data cache

Level 2 cache size  ?

512 KB exclusive 16-way set associative cache

Physical memory

1 TB

Virtual memory

256 TB

Multiprocessing

Uniprocessor

Features

• MMX instructions
• Extensions to MMX
• 3DNow! technology
• Extensions to 3DNow!
• SSE / Streaming SIMD Extensions
• SSE2 / Streaming SIMD Extensions 2
• AMD64 / AMD 64-bit technology  ?
• EVP / Enhanced Virus Protection  ?

Low power features

• Halt state
• Stop Grant state  ?
• Cool'n'Quiet technology

Integrated peripherals / components

Integrated graphics

None

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR

Other peripherals

One 16-bit HyperTransport link with speeds up to 1000 MHz

Electrical / Thermal parameters

V core  ?

1.4V

Maximum operating temperature  ?

65°C

Thermal Design Power  ?

67 Watt

Notes on AMD Athlon 64 3500+ (rev. D0)

• In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 20 Watt
