Produktbeschreibung
CPU Prozessor AMD Athlon 64 3700+ ADA3700DKA5CF FSB1000 1M Sockel 939
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon 64 |
Model number | 3700+ |
CPU part numbers | ADA3700DKA5CF is an OEM/tray microprocessor; ADA3700CFBOX is a boxed microprocessor |
Stepping codes | CCB2E CCBIE CCBWE LCB9E LCBBE LCBIE |
Frequency | 3700+ (rated); 2200 MHz (real) |
Bus speed | One 1000 MHz 16-bit HyperTransport link (2GT/s) |
Clock multiplier | 11 |
Package | 939-pin lidded organic microPGA; 1.57" x 1.57" (4 cm x 4 cm) |
AMD Package number | 28820 |
Socket | Socket 939 |
Architecture / Microarchitecture | |
Microarchitecture | K8 |
Processor core | San Diego |
Core stepping | E6 |
CPUID | 30F72 |
Manufacturing process | 0.09 micron silicon-on-insulator (SOI) technology |
Data width | 64 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | 1 MB exclusive 16-way set associative cache |
Physical memory | 1 TB |
Virtual memory | 256 TB |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, AMD64 / AMD 64-bit technology, EVP / Enhanced Virus Protection |
Low power features | Halt state, Stop Grant state, Cool'n'Quiet technology |
Memory controller | The number of controllers: 1 |
Other peripherals | One 16-bit HyperTransport link |
Electrical / Thermal parameters | |
V core | 1.35V |
Maximum operating temperature | 49°C - 71°C |
Thermal Design Power | 85.3 Watt |
Notes on AMD Athlon 64 3700+ (rev. E6) | |
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 36.1 Watt |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

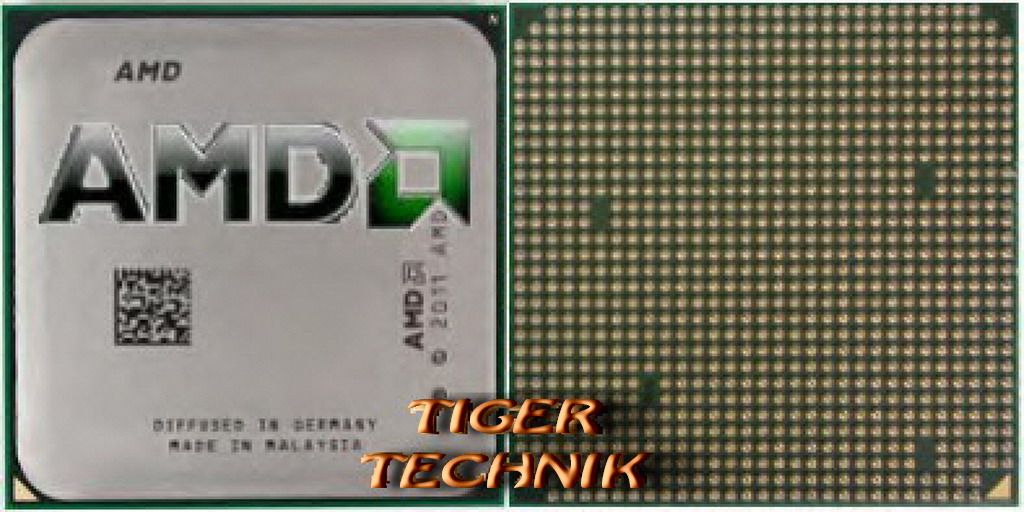

Abbildung ähnlich
