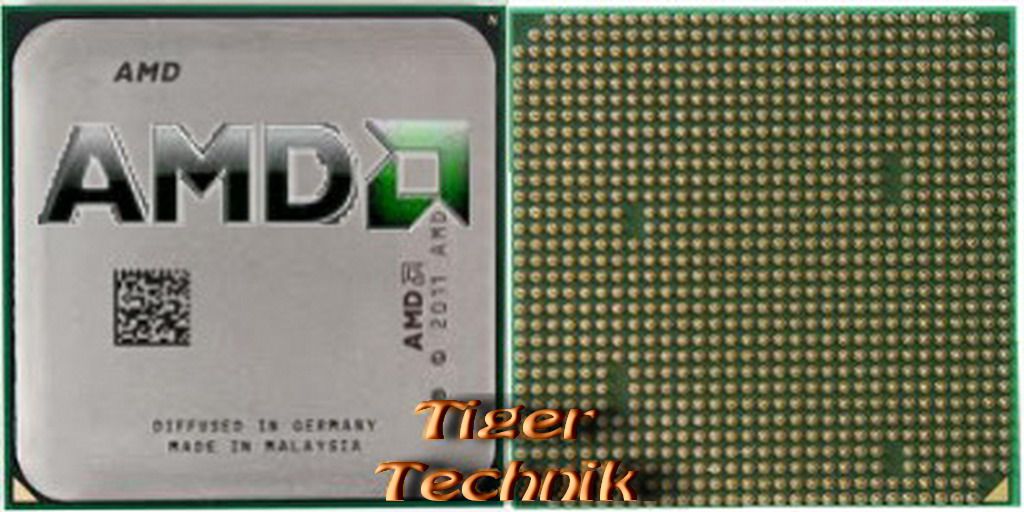

CPU AMD Athlon 64 X2 6000+ ADV6000IAA5DO Dual Core 2x3.1GHz Sockel AM2* c218

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon 64 X2

Model number

6000+

CPU part numbers

ADV6000IAA5DO is an OEM/tray microprocessor; ADV6000DOBOX is a boxed microprocessor with fan and heatsink

Stepping code

NAAFG

Frequency

6000+ (rated); 3100 MHz (real)

Bus speed

One 1000 MHz 16-bit HyperTransport link (2 GT/s)

Clock multiplier

15.5

Package

940-pin organic microPGA

Socket

Socket AM2

Introduction date

2nd quarter 2008

Architecture / Microarchitecture

Microarchitecture

K8

Platform

Cartwheel

Processor core

Brisbane

Core stepping

BH-G2

CPUID

60FB2

Manufacturing process

0.065 micron silicon-on-insulator (SOI) technology; 221 million transistors

Data width

64 bit

The number of CPU cores

2

The number of threads

2

Floating Point Unit

Integrated

Level 1 cache size

2 x 64 KB 2-way set associative instruction caches; 2 x 64 KB 2-way set associative data caches

Level 2 cache size

2 x 512 KB exclusive 16-way set associative caches

Physical memory

1 TB

Virtual memory

256 TB

Multiprocessing

Uniprocessor

Extensions and Technologies

MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology

Security Features

EVP / Enhanced Virus Protection

Low power features

Cool'n'Quiet technology; Halt state; Stop Grant state

Integrated peripherals / components

Integrated graphics

None

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR2-800
Maximum memory bandwidth (GB/s): 12.8

Other peripherals

HyperTransport 2.0 technology

Electrical / Thermal parameters

V core

1.1V - 1.4V

Maximum operating temperature

62°C

Thermal Design Power

89 Watt
