ADA3200CNBOX is a boxed microprocessor with fan and heatsink
Stepping codes
LBBVF LDBFF LEBAF LFBAF NBBVF NEBAF
Frequency ?
3200+ (rated) 2000 MHz (real)
Bus speed ?
One 1000 MHz 16-bit HyperTransport link (2 GT/s)
Clock multiplier ?
10
Package
940-pin organic micro Pin Grid Array (micro-PGA)
Socket
Socket AM2
Introduction date
May 23, 2006
Architecture / Microarchitecture
Microarchitecture
K8
Processor core ?
Orleans
Core stepping ?
DH-F2
CPUID
40FF2
Manufacturing process
0.09 micron silicon-on-insulator (SOI) technology 164 million transistors
Die size
103.1mm2
Data width
64 bit
The number of CPU cores
1
The number of threads
1
Floating Point Unit
Integrated
Level 1 cache size ?
64 KB 2-way set associative instruction cache 64 KB 2-way set associative data cache
Level 2 cache size ?
512 KB 16-way set associative exclusive cache
Physical memory
1 TB
Virtual memory
256 TB
Multiprocessing
Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
AMD64 / AMD 64-bit technology ?
EVP / Enhanced Virus Protection ?
AMD-V / AMD Virtualization technology
Low power features
Cool'n'Quiet technology
Halt state
Stop Grant state ?
Integrated peripherals / components
Integrated graphics
None
Memory controller
The number of controllers: 1 Memory channels: 2 Supported memory: DDR2-800 Maximum memory bandwidth (GB/s): 12.8
Other peripherals
HyperTransport 2.0 technology (1 link)
Electrical / Thermal parameters
V core ?
1.25V / 1.35V / 1.4V
Maximum operating temperature ?
55°C - 69°C
Thermal Design Power ?
59 Watt
Notes on AMD Athlon 64 3200+ (rev. F2, CN)
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 29.8 Watt
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

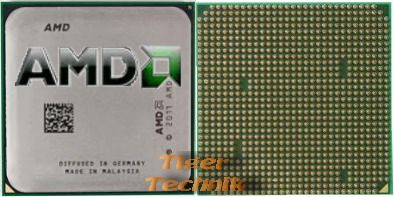

Abbildung ähnlich
