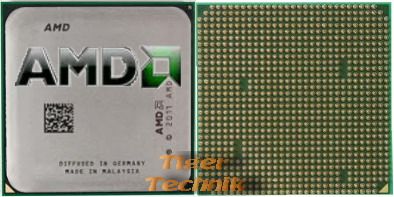

ADH4450DOBOX is a boxed microprocessor with fan and heatsink
Stepping codes
CAAWG NAAEG NAAFG
Frequency ?
2300 MHz
Bus speed ?
One 1000 MHz 16-bit HyperTransport link (2 GT/s)
Clock multiplier ?
11.5
Package
940-pin organic microPGA
Socket
Socket AM2
Introduction date
April 22, 2008
Price at introduction
$76
Architecture / Microarchitecture
Microarchitecture
K8
Platform
Cartwheel
Processor core ?
Brisbane
Core stepping ?
BH-G2
CPUID
60FB2
Manufacturing process
0.065 micron silicon-on-insulator (SOI) technology 221 million transistors
Data width
64 bit
The number of CPU cores
2
The number of threads
2
Floating Point Unit
Integrated
Level 1 cache size ?
2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches
Level 2 cache size ?
2 x 512 KB exclusive 16-way set associative caches
Physical memory
1 TB
Virtual memory
256 TB
Multiprocessing
Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
Extensions to 3DNow!
AMD64 / AMD 64-bit technology ?
EVP / Enhanced Virus Protection ?
AMD-V / AMD Virtualization technology
Low power features
Cool'n'Quiet technology
Halt state
Stop Grant state ?
Integrated peripherals / components
Integrated graphics
None
Memory controller
The number of controllers: 1 Memory channels: 2 Supported memory: DDR2-800 Maximum memory bandwidth (GB/s): 12.8
Other peripherals
HyperTransport 2.0 technology
Electrical / Thermal parameters
V core ?
1.15V / 1.2V / 1.25V
Maximum operating temperature ?
78°C
Thermal Design Power ?
45 Watt
Notes on AMD Athlon 64 X2 4450e
The Athlon X2 4450e replaced model BE-2400 (ADH2400IAA5DO)
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
