0.09 micron silicon-on-insulator (SOI) technology 164 million transistors
Data width
64 bit
The number of CPU cores
2
The number of threads
2
Floating Point Unit
Integrated
Level 1 cache size ?
2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches
Level 2 cache size ?
2 x 512 KB 16-way set associative exclusive caches
Physical memory
1 TB
Virtual memory
256 TB
Multiprocessing
Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
AMD64 / AMD 64-bit technology ?
EVP / Enhanced Virus Protection ?
AMD-V / AMD Virtualization technology
Low power features
Cool'n'Quiet technology
Halt state
Stop Grant state ?
Integrated peripherals / components
Integrated graphics
None
Memory controller
The number of controllers: 1 Memory channels: 2 Supported memory: DDR2-800 Maximum memory bandwidth (GB/s): 12.8
Other peripherals
HyperTransport 2.0 technology (1 link)
Electrical / Thermal parameters
V core ?
1.3V / 1.35V
Maximum operating temperature ?
55°C - 70°C
Thermal Design Power ?
89 Watt

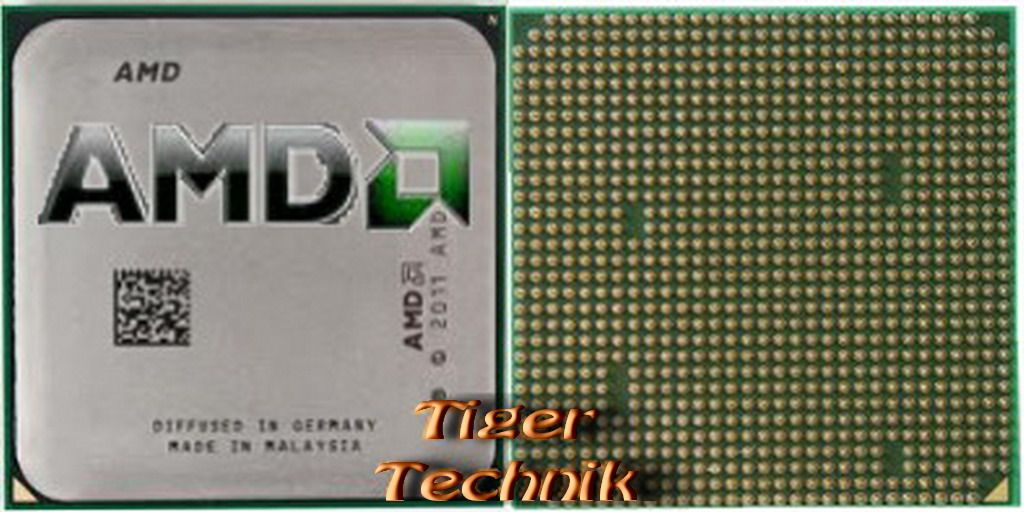

Notes on AMD Athlon 64 X2 5000+ (89W, rev. F3)
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 31 Watt
