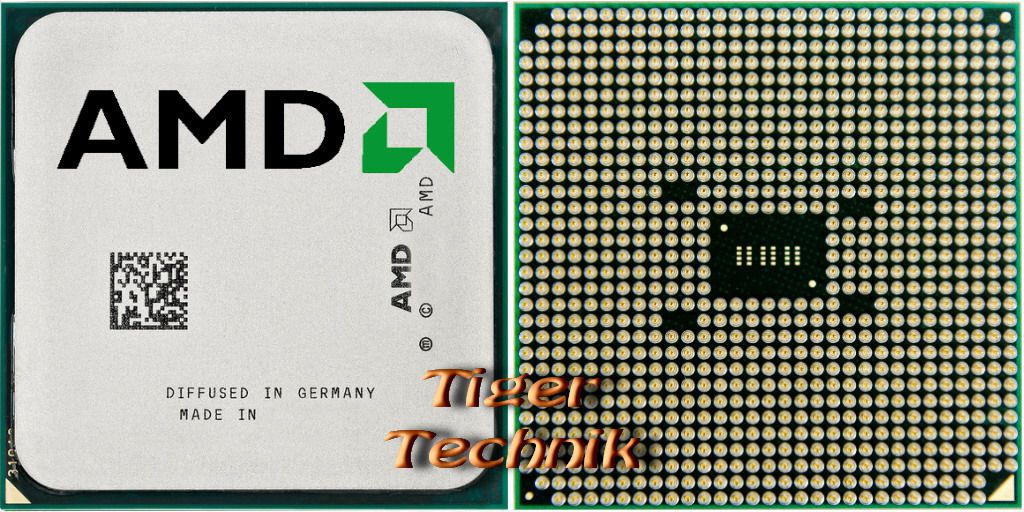

CPU AMD A6-3650 AD3650WNZ43GX Quad Core 4x2.6GHz Sockel FM1 AMD Grafik* c547

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD A6-Series

Model number

A6-3650

CPU part numbers

AD3650WNZ43GX is an OEM/tray microprocessor; AD3650WNGXBOX is a boxed microprocessor with fan and heatsink

Frequency

2600 MHz

Package

905-pin organic lidded micro Pin Grid Array (UOF905)

Socket

Socket FM1

Size

1.57" x 1.57" / 4cm x 4cm

Weight

1.4oz / 39g (CPU); 11.4oz / 324.6g (box)

Fan/heatsink

DK8-7G52C-A1-GP

Introduction date

July 3, 2011

Price at introduction

$115

Architecture / Microarchitecture

Microarchitecture

K10

Platform

Lynx

Processor core

Llano

Core stepping

LN-B0

CPUID

300F10

Manufacturing process

0.032 micron; 1178 million transistors

Die

227mm2

Data width

64 bit

The number of CPU cores

4

The number of threads

4

Floating Point Unit

Integrated

Level 1 cache size

4 x 64 KB 2-way set associative instruction caches; 4 x 64 KB 2-way set associative data caches

Level 2 cache size

4 x 1 MB 16-way set associative caches

Level 3 cache size

None

Cache latency

3 (L1 cache); 21 (L2 cache)

Multiprocessing

Uniprocessor

Extensions and Technologies

MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; SSE4a; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology; EVP / Enhanced Virus Protection

Low power features

PowerNow!

Integrated peripherals / components

Integrated graphics

GPU Type: Radeon HD 6530D
Shader cores: 320
Base frequency (MHz): 443

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1866
Maximum memory bandwidth (GB/s): 29.9

Other peripherals

PCI Express 2.0; Unified Video Decoder 3.0

Electrical / Thermal parameters

V core

0.45V - 1.4125V

Maximum operating temperature

72.7°C

Thermal Design Power

100 Watt
