CPU AMD A8-7600 AD7600YBI44JA Quad Core 4x3.1GHz Sockel FM2+ AMD Grafik* c357
Für eine größere Ansicht klicken Sie auf das Vorschaubild

CPU AMD A8-7600 AD7600YBI44JA Quad Core 4x3.1GHz Sockel FM2+ AMD Grafik* c357

Art.Nr: c357
Lieferzeit: 3 Tage
Lagerbestand: 0

Dieser Artikel ist momentan nicht verfügbar
58,95 EUR
inkl. Mwst. Differenzbesteuert nach §25a UStG gegebenenfalls plus Versandkosten


Produktbeschreibung

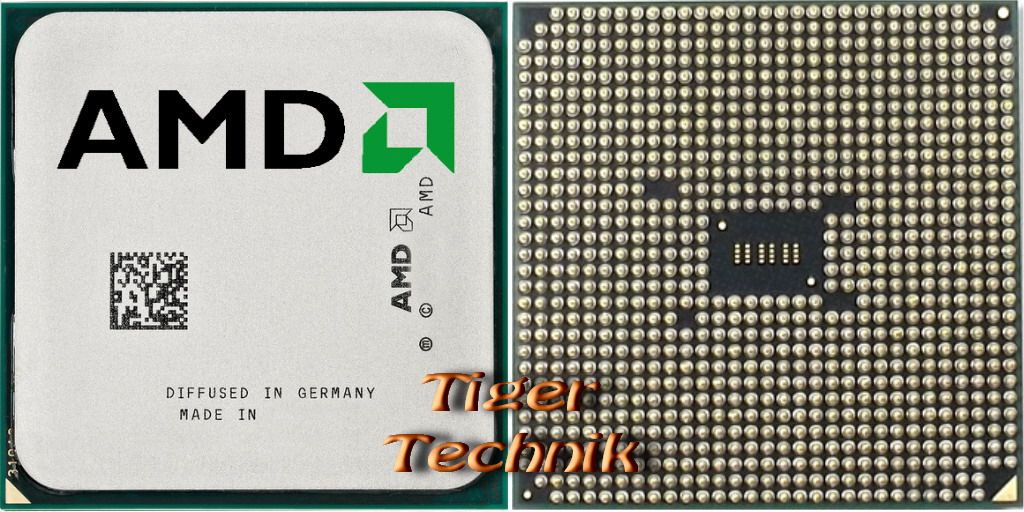

CPU AMD A8-7600 AD7600YBI44JA

Quad Core 4x3.1GHz Sockel FM2+ AMD Grafik

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD A8-Series

Model number

A8-7600

CPU part numbers

AD7600YBI44JA is an OEM/tray microprocessor; AD7600YBJABOX is a boxed microprocessor with fan and heatsink

Frequency

3100 MHz

Maximum turbo frequency

3800 MHz

Boosted P states [1]

#1: 3800 MHz, 1.125V
#2: 3700 MHz, 1.025V
#3: 3300 MHz, 0.775V

Package

906-pin lidded micro-PGA package

Socket

Socket FM2+

Size

1.57" x 1.57" / 4cm x 4cm

Introduction date

January 14, 2014 (announcement); June 2014 (OEM availability); July 31, 2014 (PIB availability)

Price at introduction

$101

Architecture / Microarchitecture

Microarchitecture

Steamroller

Processor core

Kaveri

Core stepping

KV-A1

CPUID

630F01

Manufacturing process

0.028 micron SHP; 2.41 billion transistors

Die

245mm2

Data width

64 bit

The number of CPU cores

4

The number of threads

4

Floating Point Unit

Integrated

Level 1 cache size

2 x 96 KB 3-way set associative shared instruction caches; 4 x 16 KB 4-way set associative data caches

Level 2 cache size

2 x 2 MB 16-way set associative shared caches

Multiprocessing

Uniprocessor

Features

MMX instructions, Extensions to MMX, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, SSSE3 / Supplemental Streaming SIMD Extensions 3, SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4, SSE4a, AES / Advanced Encryption Standard instructions, AVX / Advanced Vector Extensions, BMI1 / Bit Manipulation instructions 1, F16C / 16-bit Floating-Point conversion instructions, FMA3 / 3-operand Fused Multiply-Add instructions, FMA4 / 4-operand Fused Multiply-Add instructions, TBM / Trailing Bit Manipulation instructions, XOP / eXtended Operations instructions, AMD64 / AMD 64-bit technology, AMD-V / AMD Virtualization technology, EVP / Enhanced Virus Protection, Turbo Core 3.0 technology

Low power features

PowerNow!, C1, CC6 and PC6 states, Package S3, S5 and S5 states

Low power P states [1]

#1: 2800 MHz, 0.55V
#2: 2400 MHz, 0.4V
#3: 1900 MHz, 0.325V
#4: 1400 MHz, 0.25V

Integrated peripherals / components

Integrated graphics

GPU Type: Radeon R7 series
Shader cores: 384
Base frequency (MHz): 720
The number of supported displays: 4

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-2133
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 34.1

Other peripherals

PCI Express 3.0, Unified Video Decoder 4.0, Video Coding Engine 2.0, TrueAudio accelerator

Electrical / Thermal parameters

Maximum operating temperature

71.3°C

Thermal Design Power

65 Watt

Notes on AMD A8-7600

The processor can be configured to run at 45 Watt TDP.

The processor has the following security, data protection and/or software features: AMD Face Login, Quick Stream, StartNow technology and FreeSync.

The CPU is compatible with DirectX 12, OpenGL 4.4 and OpenCL 2.0 APIs.

The graphics unit has the following software features enabled: AMD Eyefinity technology, Perfect Picture HD, Screen Mirror, Steady Video and Wireless Display.

[1] - These characteristics were measured on a single CPU, and they can vary slightly for other processors with the same model number

Lieferumfang

CPU - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
