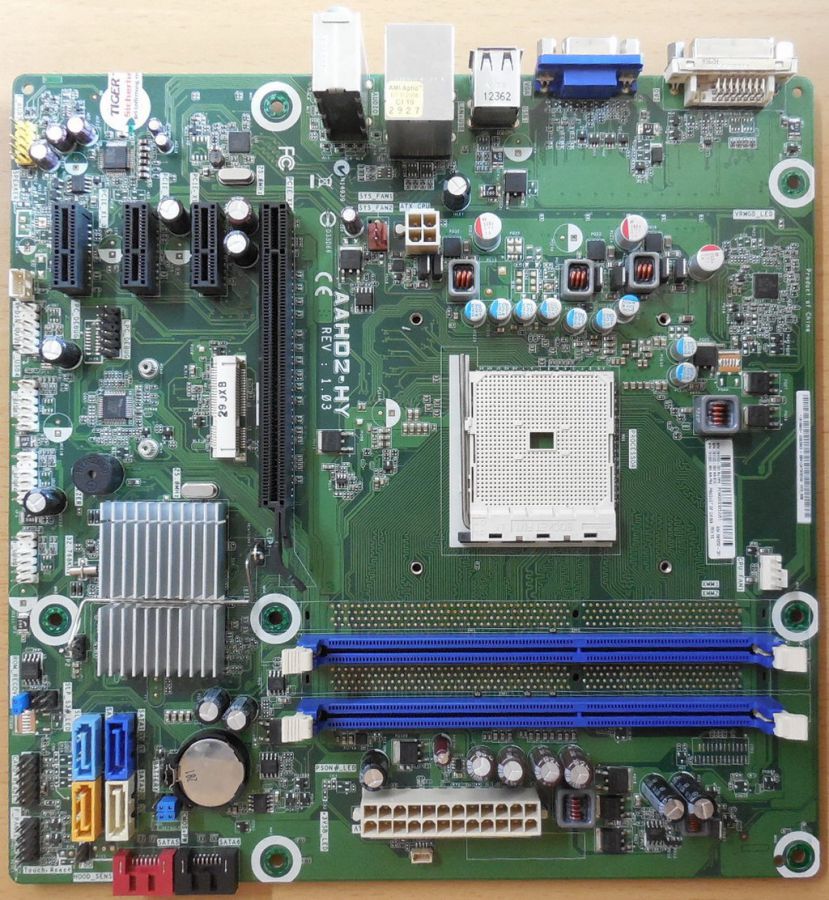

HP AAHD2-HY Rev 1.03 Mainboard +Blende 696350 001 701022 Rev 0C Sockel FM1* m934

FSB:       100 MHz UMI (Unified Media Interface)

RAM:       2 x 240-pin DDR3 DIMM Sockets (1.5V), Dual Channel memory architecture; DDR3 1333MHz(PC3-10600) / 1600MHz(PC3-12800) / 1866MHz(PC3-14400); non-ECC unbuffered; max. 8 GB Hauptspeicher

Video:

Integrated Graphics dependend on APU

Supports PCI Express x16 graphics cards

DVI and VGA ports (Use of both the VGA and DVI ports at the same time is supported)

*Integrated video is not available if a graphics card is installed.

LAN:       Realtek RTL8111E GbE 10/100/1000 Mb/s Netzwerkverbindung

Sound:       Realtek ALC656 High Definition 5.1 channel Audio Codec

Erweiterungssteckplätze:       1x PCIe Mini Card x1; 3x PCIe x1 (Gen2.0); 1x PCIe x16 (Gen2.0)

Intern:       Echtzeituhr/Kalender mit Batteriepufferung

6 x SATA2 (3GBit/s) Ports

1 x 4-pin CPU FAN Connector

1 x 3-pin System FAN Connector

1 x ROM Recovery Connector

1 x FDO Connector

1 x SPDIF Out Connector

1 x Battery Jumper

1 x CMOS Password Jumper

1 x Front Panel Connector

4 x USB Connectoren für insgesamt 8 weitere USB2.0 Ports z.B. via Blende

1 x Buzzer

1 x Card Reader Connector

1 x Front Audio Connector

1 x LPC Debug Connector

1 x ATX Power Connector

1 x 4-pin 12V Processor Power Supply Connector

Externe Anschlüsse:       1x VGA Sub-D; 1x DVI-D, 1x LAN RJ-45, 4x USB2.0, 1x Line-In, 1x Line-Out, 1x Microphone

Form Factor:       uATX 24.38 cm (9.6 in) x 24.38 cm (9.6 in)
