Products description

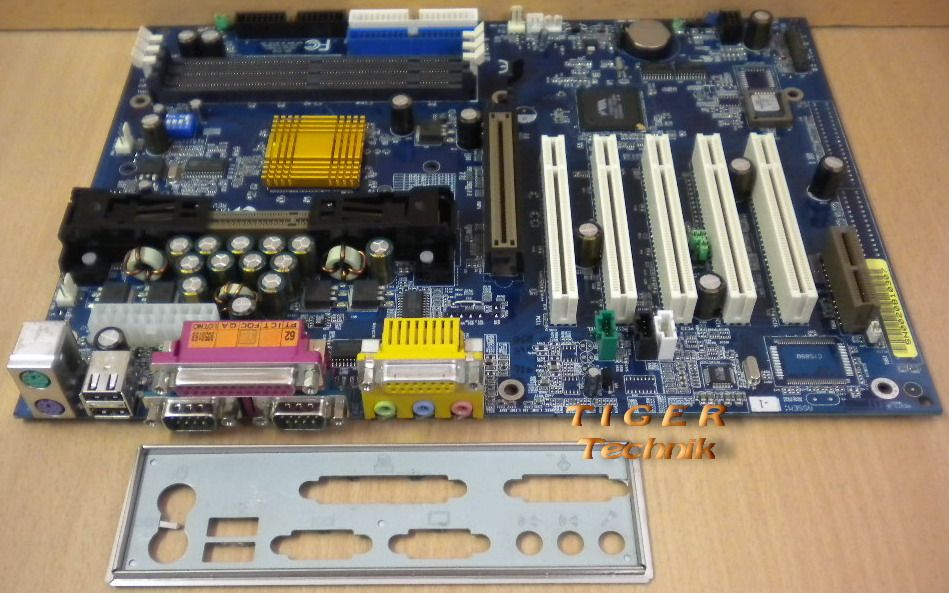

Gigabyte GA-7VX Rev 1.0 Mainboard + Blende
AMD Slot A AGP PCI Audio SD-RAM
Technische Daten
Prozessor
Slot A for AMD-K7 Athlon 200MHz FSB processors
100/110*/115*/120*/124*/129*/133*/138*/143* MHz FSB
AUTO detect CPU voltage
Chipsatz
VIA KX133 North Bridge
VIA 686A South Bridge
Creative CT5880 PCI sound
Arbeitsspeicher
32MB to 1.5GB memory size
3 x DIMM sockets
Supports 32/64/128/256/512 MB SDRAM DIMM module
Supports ECC type DIMM module (72bits)
Erweiterungssteckplätze
1 x AMR (Audio Modem Riser) slot
1 x AGP slot supports 2X/4X mode
5 x PCI slot supports 33MHz & PCI 2.2 compliant
1 x ISA slot
I/O
2 x Ultra DMA 33/66 Bus Master IDE ports on board
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
2 x USB ports on board
2 x USB ports by cable (optional accessary)
IrDA TX / RX Header Ready
Stromversorgung
ATX power connector
Power-on by LAN, RTC, Modem & switch
Power-off by Windows 98 Shut down & Switch
Supports USB device wake-up
3 level ACPI LED support
Stop CPU fan during entering suspend mode
Form Factor ATX , 4 layer PCB (30.8* 22.0 cm)
H/W Überwachung
Auto speed down and Alarm when CPU overheat or Fan failure (OS independent & Driverless)
3 fan power & speed detection connectors
Stop CPU fan during entering suspend mode
System health status detect & report by BIOS
H/W detect +5V, +12V, CPU voltage & CMOS battery status
BIOS
Includes DualBIOS™ Technology; 2Mbit Flash RAM
AMI BIOS with enhanced ACPI feature for PC98 / Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
AC recovery ON/OFF control
Auto-detect & report system health status
Andere Funktionen
Suspend-To-RAM (STR)
Includes Wake-On-LAN Header (WOL)
Includes Wake-On-Ring (WOR)
Poly fuse for keyboard, USB & game overcurrent protection
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
