Products description

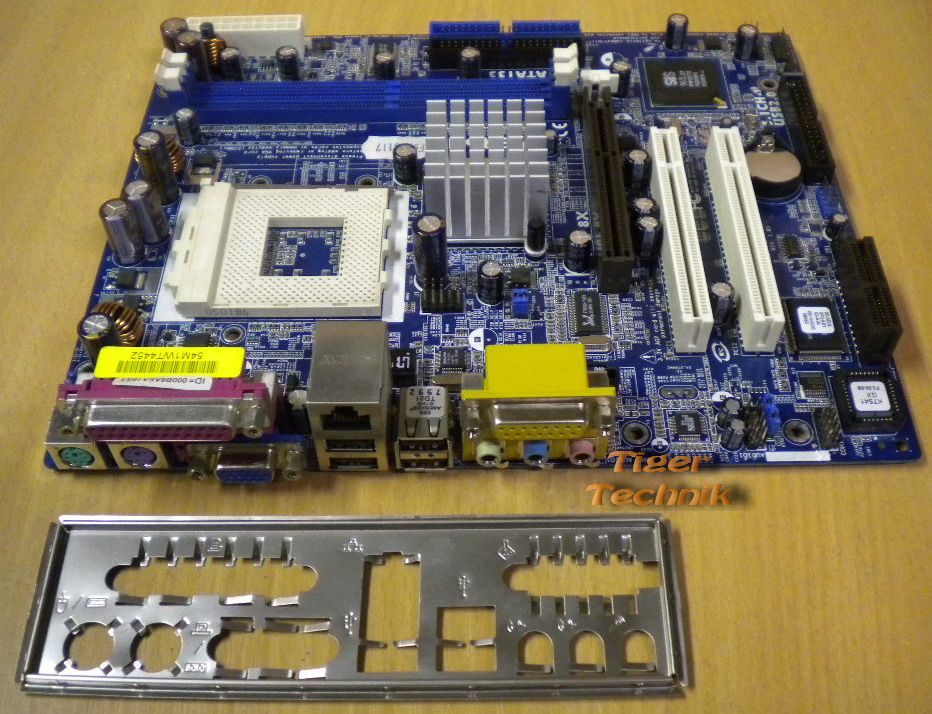

ASRock K7S41GX Rev. G/A 1.04 Mainboard
Sockel 462 AGP x8 PCI AMR + Blende
Technische Daten:
CPU:
Socket 462, supporting AMD Sempron, Athlon, Athlon XP, Duron, FSB 333/266/200 MHz
Chipset:
Northbridge: SiS® 741GX, Southbridge: SiS® 963L
Memory:
2 x DDR DIMM, DDR333/266 non-ECC, un-buffered memory, Max. capacity of system memory: 2GB
BIOS:
2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP
Graphics:
Integrated Mirage Graphics, Shared Memory Max. 64MB
Audio:
AC97 CODEC, 5.1 CH Audio
LAN:
802.3u, 10/100 Ethernet LAN, WOL supported, Supports PXE
Slots:
AGP 8X/4X 1.5V, PCI 2 slots, PCI 2.2, AMR 1
Connector:
IDE 2 x ATA 133/100/66/33, Floppy 1 connector, SIR/CIR 1/0, CPU/Chassis FAN connectors, 20 pin ATX power connector, CD/AUX/ audio in, Front panel audio connector
Rear Panel I/O:
Keyboard PS2 x1, Mouse PS2 x1, USB2.0 4 ports default on rear panel + 2 ports upgrade via header, Serial 1COM Port Bracket, Parallel 1, Game/MIDI 1, LAN 1 x RJ45, Audio I/O Line In/Line Out/Mic, VGA 1
Unique Feature:
Hybrid Booster, CPU Frequency Stepless control, CPU Multiplier, CPU Vcore adjustment
ASRock U-COP, Boot Failure Guard
Hardware Monitor:
CPU Temperature Sensing, Motherboard Temperature Sensing, CPU Fan Tachometer
Chassis Fan Tachometer, Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor:
Micro ATX, 244mm x 198mm
OS:
Microsoft® Windows® 98SE/ME/2000/XP compliant
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
