Products description

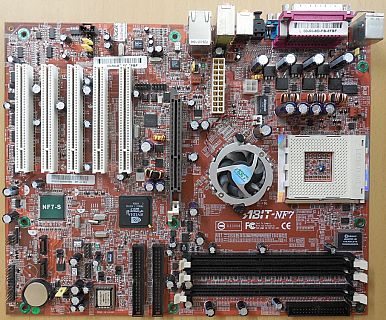

Abit NF7-S V2.0 Sockel A/462 Retro Mainboard + Blende nVidia nForce 2 FSB400 DDR400 IDE SATA RAID Audio LAN AGP 8X PCI USB2.0
Technische Daten
CPU
Ready for AMD FSB400 Processors
Supports AMD-K7 / Athlon / Athlon XP / Barton FSB 200/266/333MHz Processors
Supports AMD Sempron CPUs (Please update the latest BIOS version)
Chipset
NVIDIA nForce™2 C18D chipset with MCP-T
Supports Advanced Configuration and Power Management Interface (ACPI)
Accelerated Graphics Port connector supports AGP 8X/4X (0.8V/1.5V)
Memory
3 x 184-pin DIMM sockets
Supports 3 x DIMM DDR 200/266/333 (Max. 3 GB)
Supports 2 x DIMM DDR 400 (Max. 2 GB)
Expansion Slots
5 x PCI Steckplätze
1 x AGP 8X/4X Steckplatz (0.8V/1.5V)
LAN
On board 10/100M LAN Physical layer interface
Audio
6-Channel AC 97 CODEC on board
Professional digital audio interface supports optical S/PDIF Out
NVIDIA SoundStorm with real-time Dolby Digital 5.1 encoder
On-Board Serial ATA150 RAID
On board SATA 150 PCI Controller
Supports 2 ports SATA 150 RAID 0/1
IEEE 1394 Firewire
Supports IEEE 1394a at 100/200/400 Mb/s transfer rate
Internal I/O Connectors
1 x Floppy Port (supports up to 2.88MB)
2 x Ultra DMA 33/66/100/133 Connectors
2 x SATA 150 Connectors
2 x USB 2.0 Headers
2 x IEEE1394 header
1 x CD-IN
1 x IrDA Header
1 x SMB1 Connector
1 x CMOS Jumper
1 x KBPWR1 Jumper
1 x 3-Pin CPU FAN Connector
1 x 3-Pin Chassis FAN Connector
1 x Front Panel Connector
1 x 20-Pin ATX Power Connector
1 x 4-Pin CPU Power Connector
Back Panel I/O
1 x PS/2 Keyboard port
1 x PS/2 mouse port
2 x Serial ports
1 x Parallel port
1 x S/PDIF Out port
2 x USB 2.0 ports
1 x RJ-45 LAN port
5 x Audio connectors (Front Speaker, Line-in, Mic-in, Center/Sub, Surround Speaker)
ABIT Engineered
ABIT SoftMenu™ Technology, ABIT MaxFID™ Technology, ABIT SERILLEL™, ABIT CPU ThermalGuard™
Miscellaneous
ATX form factor
Hardware monitoring (Including Fan speeds, Voltages, System environment temperature)
Lieferumfang

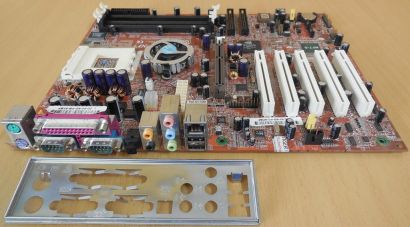

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
