Products description

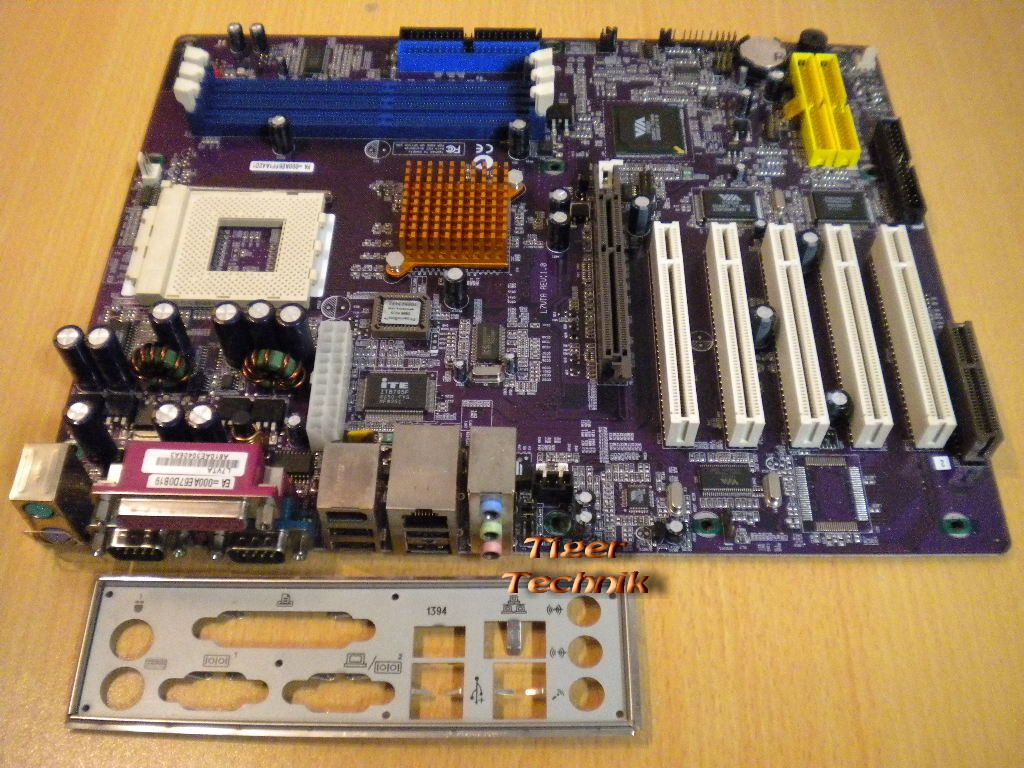

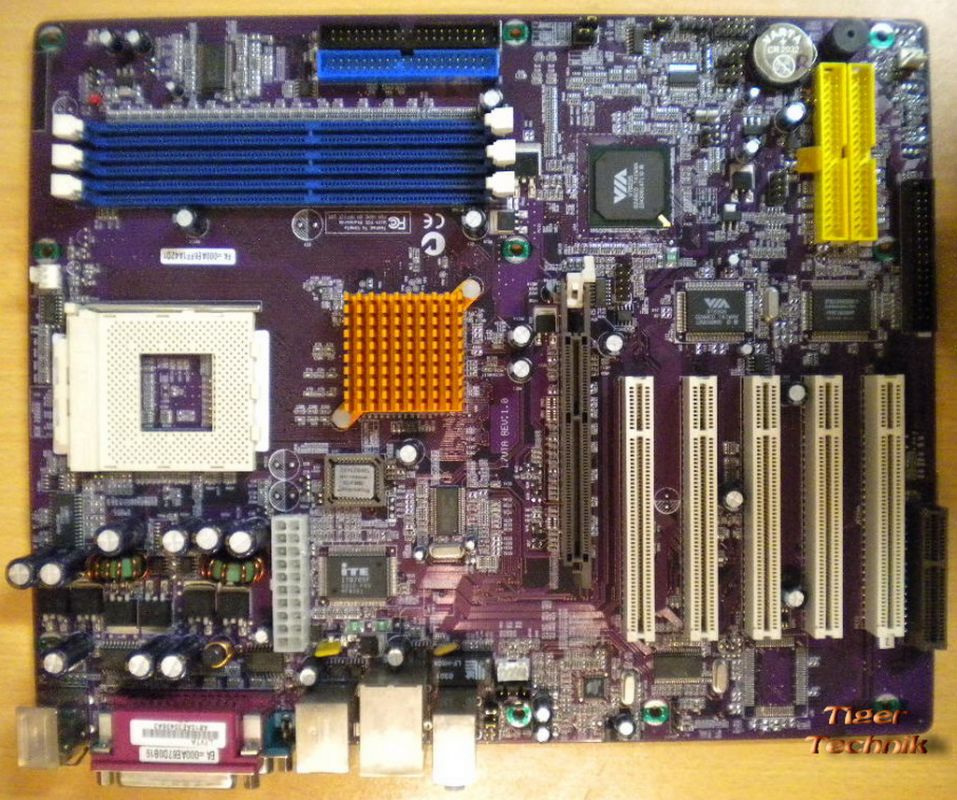

ECS Elitegroup L7VTA Rev: 1.0 Mainboard + Blende
Technische Daten
CHIPSET
VIA® Apollo KT400 North Bridge VT8377
VIA® VT8235 South Bridge
Processor
AMD® Athlon XP / Athlon / Duron CPU
Socket A
333 / 266 / 200MHz
Main Memory
3 DDR DIMMs
Supports DDR333 / DDR400 (conditional)
Max. 3GB (2GB only for DDR400, conditional)
EXPANSION SLOT
5 x PCI
1 x AGP 8X slot
1 x CNR slot
Sound
VIA® VT1612A AC'97 Audio CODEC
IEEE 1394a
VIA® VT6306 integrated IEEE 1394A Host Controller
LAN
VIA® VT6103 Fast Ethernet 10/100 PHY / Transceiver
Back Panel I/O Ports
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x Parallel
2 x Serial
1 x IEEE 1394A
1 x LAN
4 x USB
1 x Line-in
1 x Line-out
1 x Microphone
Internal I/O Connectors
Front Panel Audio header
Front Panel USB connector
IR header
SPDIF out header
1 IEEE 1394A header
RAID IDE array controller
20-pin ATX power connector
Super I/O
ITE IT8705F
IDE
2 UltraDMA 133 / 100 / 66 / 33
PROMISE PDC20265R IDE RAID Controller
USB
6 USB 2.0 (Embedded in VT8235)
BIOS
Award 2Mb Flash EEPROM
FORM FACTOR
ATX
Board Size
305 mm x 244 mm
Infos finden Sie hier ---> http://www.ecs.com.tw/ECSWebSite/Product/Product_SPEC.aspx?DetailID=63&CategoryID=-1&DetailName=Feature&MenuID=-1&LanID=0
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
