Products description

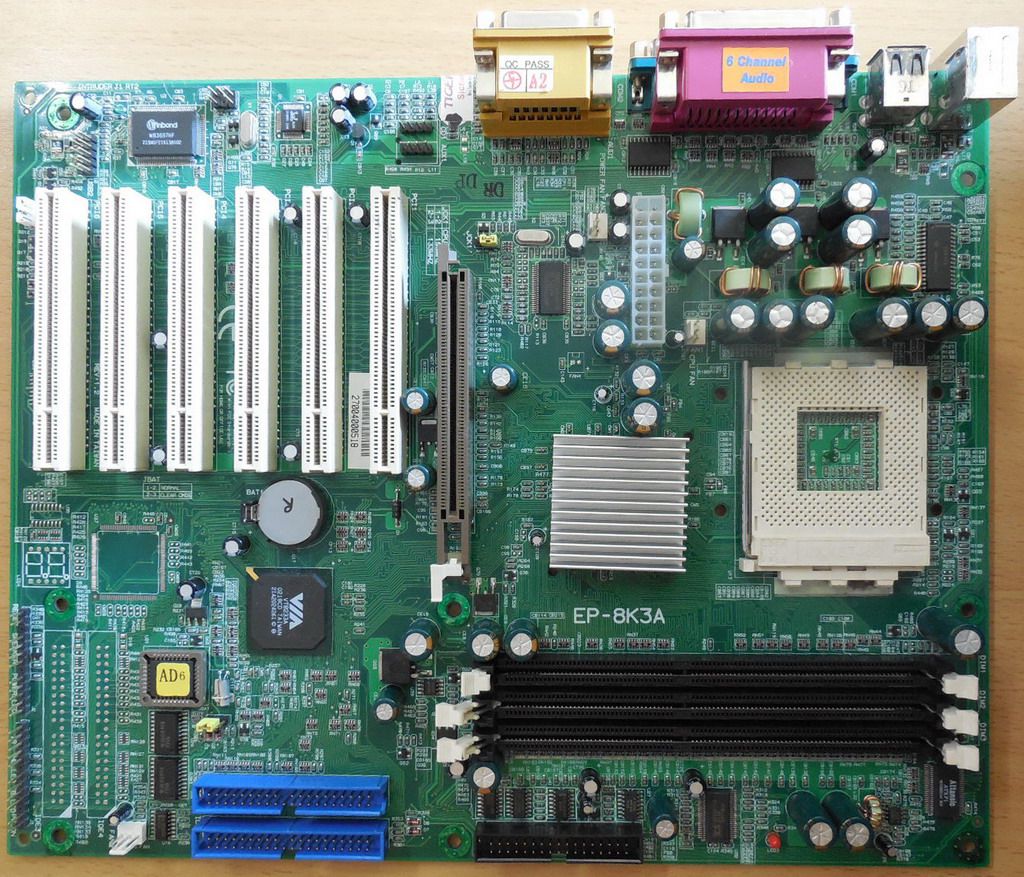

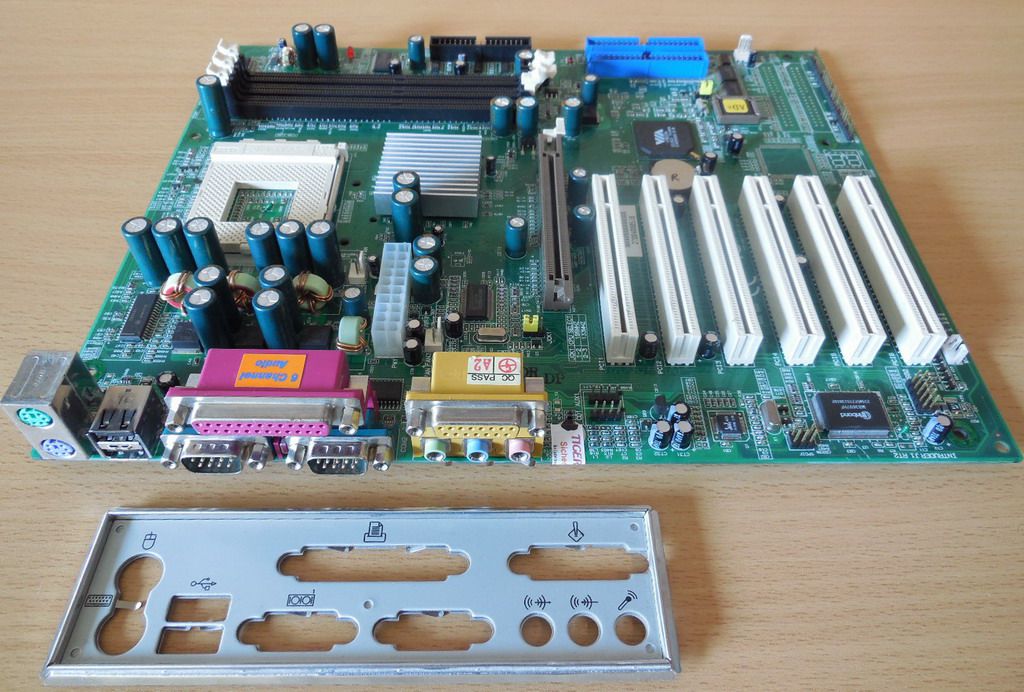

EPoX EP-8K3A Rev 1.2 Mainboard + Blende Sockel A 462 VIA KT333 DDR AGP Audio
Technische Daten
CPU Sockel: A / 462
Kompatible Prozessoren: AMD Athlon, Athlon XP, Duron
Standard: AMD AthlonTM XP processor 1500+ to 2700+, AMD AthlonTM 600MHz to 1.4GHz and AMD DuronTM processor up to 1.3GHz
Sempron (Laut Internetquellen unterstützt, allerdings Bios-Update nötig!)
FSB: 200/266/333MHz (Laut Internetquellen unterstützt, allerdings Bios-Update nötig!)
Chipsatz: VIA KT333 AGPset (KT333+ VT8233A)
Speicher RAM
Max unterstützte Größe 3 GB
Unterstützt DDR 266 (PC-2100) / 333 (PC-2700)
USB
Insgesamt 4; 2x USB1.1-Ports hinten, 2x zusätzlich durch 1x USB1.1-Header OnBoard
Audio
Built-in AC97 Digital Audio (by Realtek ALC650):
Compliant with AC97 2.2 specification
6 channel slot selectable DAC output for multi-channel applications
Supports digital SPDIF Out Function
ONBOARD I/O
Winbond W83697HF LPC I/O integrated with FDD, Parallel, Game, Serial and IrDA v1.0 and Power-On Controllers
Interne Schnittstellen
6x PCI (32-bit); 1x AGP4X
1x Diskettenlaufwerk-Controller; 2x Standard-IDE-Ports für bis zu ATA-133, rückwärts kompatibel mit ATA-100/66; bis zu 4x IDE Laufwerke; mit PIO-Mode
AUX-IN; CD-IN; SPDIF Header; 1x USB1.1 Header; Frontpanel Header; CPU-FAN/POWER-FAN/FAN2 Header
Backpanel Schnittstellen
2x Seriell; 1x Parallel; PS/2 Tastatur; PS/2 Maus; 1x Gameport/Midi; 2x USB1.1, Line-In, Line-Out, Mic
Bios
Award Plug & Play BIOS
Supports CPU Vcore , Clock and Multiplier setting via BIOS
Supports Memory Voltage setting via BIOS
Supports exclusive KBPO (KeyBoard Power On)
Supports STR (Suspend To RAM) power saving Function
Supports Wake-On-LAN Function
Hardware Monitoring
Supports Hardware Monitoring Function by W83697HF
Formfaktor
Ca. 305mm x 245 mm, ATX Größe
OS Supported
Windows 98SE/ME/2K/XP/Server2003
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
