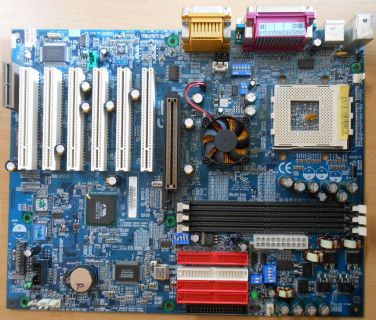

Gigabyte GA-7ZXR Rev 3.0BA Mainboard + Blende Sockel A 462 VIA KT133A Audio IDE RAID
Technische Daten
Prozessor
AMD 266/200 MHz Athlon™ / Duron™ Socket A processor
Supports 500MHz ~ 1.5GHz and faster
95~150*MHz 16 scares FSB setting (*Support by over-clocking)
Supports CPU multiplier 5.0/5.5/.../15
1.5V ~ 1.85V 16 scares CPU voltage setting
Chipsatz
VIA VT8363A (KT133A) Memory/AGP/PCI Controller (PAC)
VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)
Creative CT5880 PCI sound chip & AC´97 codec
Promise PDC 20265R ATA100 w/RAID chip
Arbeitsspeicher
3 x 168-pin DIMM sockets
Supports PC-100 / PC-133 SDRAM and VCM SDRAM
Supports up to 1.5GB DRAM
Supports 3.3V~3.5V 3 scares SDRAM voltage
Erweiterungssteckplätze
1 x AMR (Audio Modem Riser) slot (reverse)
1 x AGP slot supports 4X mode & AGP 2.0 compliant (voltage adjustable from 1.5v ~ 1.7v)
6 x PCI slots support 33Mhz & PCI 2.2 compliant
I/O
2 x UDMA ATA 33/66/100 bus master IDE ports on board
2 x Ultra ATA 33/66/100 RAID IDE ports on board
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC onboard
2 x USB ports on board, 2 x USB ports by cable (optional)
IrDA TX / RX header ready (optional)
Stromversorgung
ATX power connector
Power-on by LAN, RTC, Modem & Switch
Power-off by Windows 95/98/2000/NT/ME Shut down & Switch
Form Factor
ATX form factor, 4 layers PCB (30.4*24.4 cm)
H/W Überwachung
CPU/System voltage detect (Vcore,VDD,Vcc,+12V)
H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
CPU/System fan revolution & temperature detect
BIOS
Supports DualBIOS™ technology; 2Mbit flash RAM
AMI BIOS with enhanced ACPI feature for PC98/Win98/WinME compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
AC recovery ON/OFF control; Auto-detect & report system health status
Supports @BIOS Live Update utility
Andere Funktionen
Suspend-To-RAM (STR) & Wake-On-LAN (WOL)
Supports Internal / External Modem Ring On
Supports USB KB/MS Wake up from S3
Supports EasyTune III
Poly fuse for keyboard over-current protection
North Bridge fan enhance cooling solution
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
