Products description

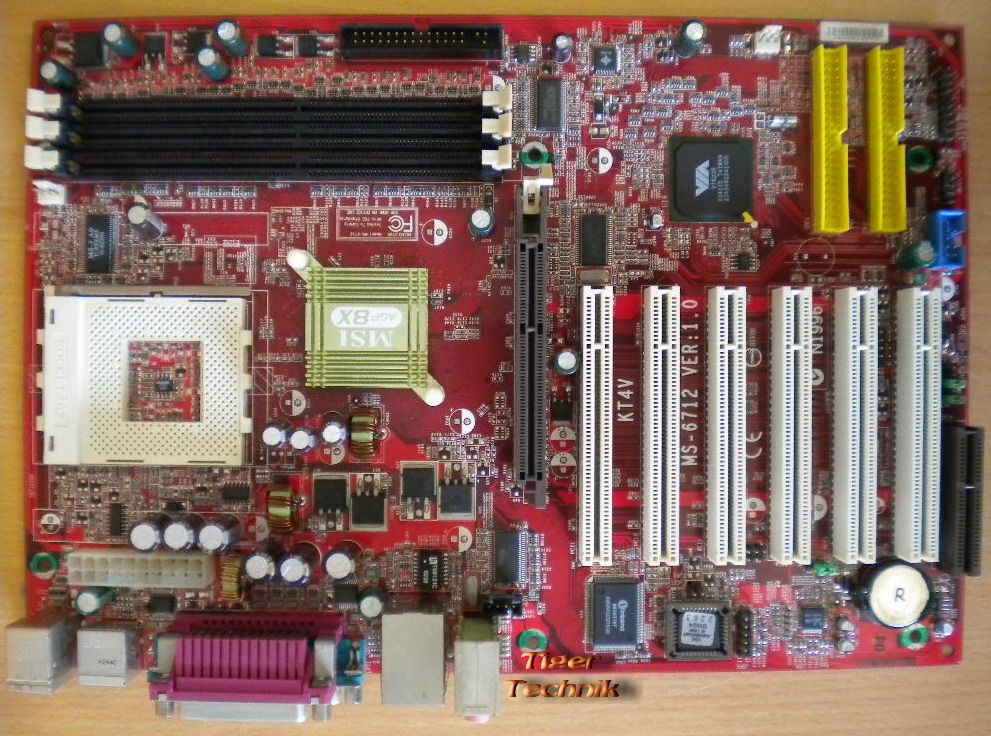

MSI KT4V -L MS-6712 Ver 1.0 Mainboard + Blende Sockel 462 FSB333 AGP 8x
Technische Daten
CPU
Supports Socket A (Socket-462) for AMD®Athlon™/Athlon™XP/Duron™ processors
Supports from 1100MHz up to 2800+ or higher speed
(For the latest information about CPU, please visit the MSI Website)
Chipset
VIA®KT400 North Bridge
- Supports 200/266/333MHz front side bus
- Supports DDR200/266/333
- Supports AGP 4X and AGP 8X
VIA®VT8235 South Bridge
- IntegratedDirect SoundAC97 audio
- Dual channel UltraDMA33/66/100/133 mastermode EIDE controller
- ACPI & PC2001 compliant enhanced power management
- Integrated USB2.0 controller
MainMemory
Supports six memory banks using three 184-pin DDR DIMMs
Supports up to 3GB PC1600/2100/2700/3200* DDR SDRAMs
Supports 2.5v DDRSDRAM
* Please refer to Glossary: Recommended DDR400 Modules for details.
Slots
One AGP (AcceleratedGraphics Port) 1.5V 8x/4x slot
Six 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)
One CNR (CommunicationNetworkRiser) slot
On-Board IDE
An IDE controller on the VT8235 chipset provides IDE HDD/CD-ROM with PIO, BusMaster and UltraDMA133/100/66/33 operation modes. Can connect up to four IDE devices
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 2 serial ports (COMA+ COMB)
- 1 parallel port supports SPP/EPP/ECPmode
- Vertical audio ports
- 6 USB ports (Rear * 4/ Front * 2)
Bluetooth (Optional - Modul nicht dabei)
1 Bluetooth connector for wireless connection
Audio
RealTek ALC650 6-channel audio
LAN
VIA VT6103 LAN controller
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a DesktopManagement Interface (DMI) function which records your mainboard specifications.
Dimension
ATX FormFactor: 30.5 cm(L) x 21 cm (W)
Mounting
6 mounting holes
Others
Suspend to RAM/Disk (S3/S4)
PC2001 compliant
Support WOL/WOR
Lieferumfang

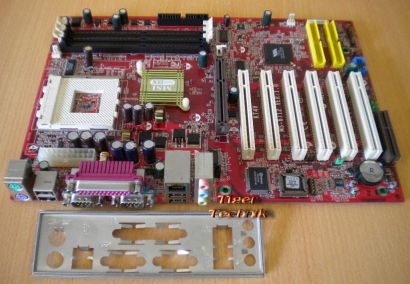

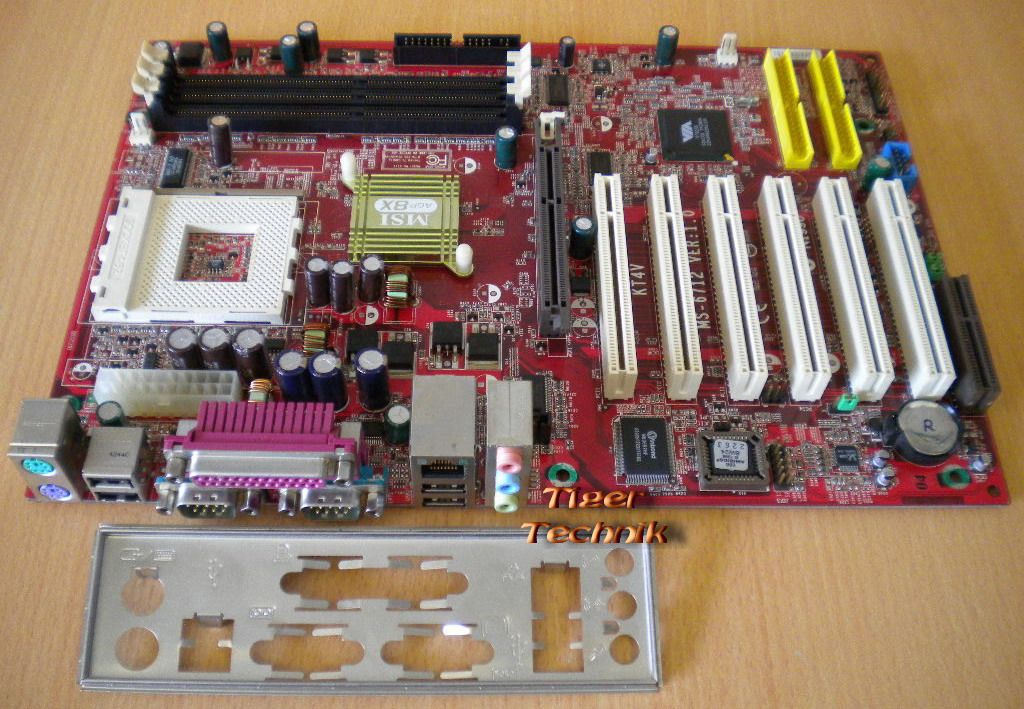

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
