Products description

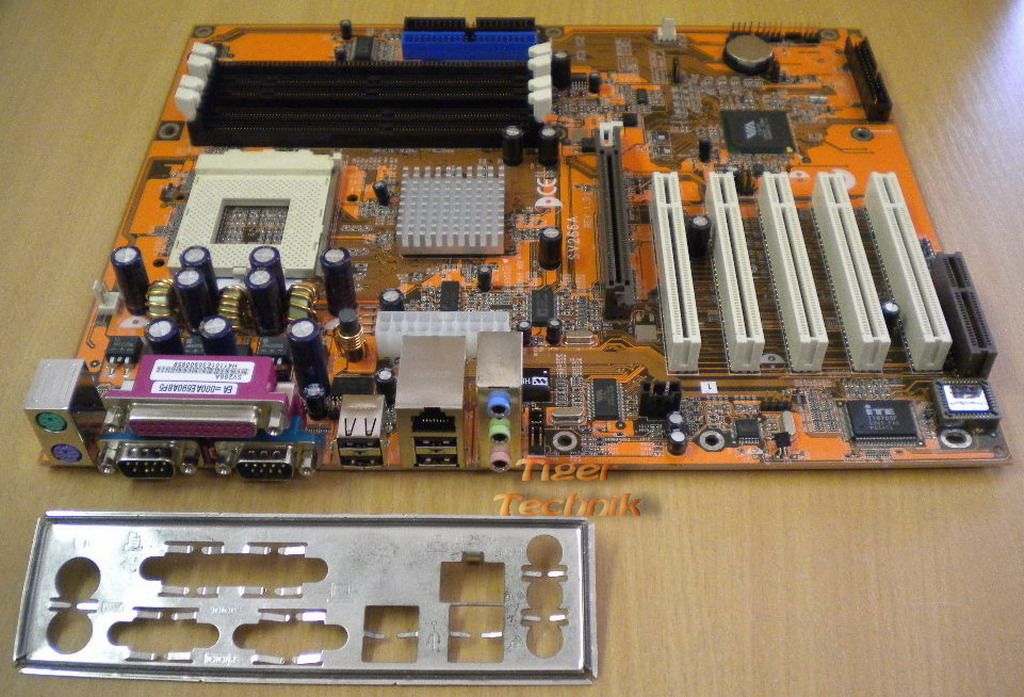

Syntax SV266A Rev 1.0 Mainboard + Blende
Sockel 462 A DDR oder SDRAM LAN Audio
Technische Daten
CPU
AMD Athlon (Thunderbird)
AMD Athlon XP (Palomino, Thoroughbred A, Thoroughbred B, Thorton)
AMD Duron (Spitfire, Morgan, Applebred)
FSB 266/200 MHz
CHIPSET
VIA KT266A (VT8366A) / VT8235
NB/SB interconnection via 4x V-Link with 266 MB/s
Supports FSB 200/266 (100/133 MHz DDR)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Universal Serial Bus (USB 2.0)
Supports up to AGP 4x (AGP 1.0/2.0, 3.3V/1.5V)
Supports PCI v2.2
Supports IDE/PATA with up to UDMA133
MEMORY
Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar! SDRAM und DDR-SDRAM können nicht gleichzeitig benutzt werden!
2x 168-Pin DIMM sockets supporting SDRAM. Supports up to 2 DIMMs PC100/133
2x 184-Pin DIMM sockets supporting DDR-SDRAM. Supports up to 2 DIMMs DDR 200/266
Supports up to 1 GiB DIMMs
Supports max. 2 GiB RAM
EXPANSION SLOT
1 x AGP slot
5 x PCI slots
1 x CNR slot
STORAGE
Support by VIA KT266A (VT8366A) / VT8235
4 x Ultra DMA100/66 devices
AUDIO
VT8235 integrated VIA AC'97 audio controller
C-Media CMI9738 AC'97 audio codec
AC'97 2.2 compliant
LAN
VT8235 integrated VIA Rhine II MAC / VIA VT6103 PHY
Supports 10/100M Fast Ethernet
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB 2.0 ports
1 x RJ45 LAN connector
1 x Parallel port (LPT)
2 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 20-pin ATX Power Supply Connector
1 x FDD connector supports one 360K~2.88MB FDD
2 x IDE connectors
1 x IrDA TX/RX header
1 x Speaker header
1 x USB 2.0 header support additional 2 USB ports
1 x Front panel switch/LED header
1 x Front panel audio header
AUX-IN/CD-IN header
CPUFAN/CASEFAN connectors
SYSTEM BIOS
2MBit Flash EEPROM (PLCC32)
Phoenix-Award BIOS v6.00PG
Supports Plug-and-Play (PNP)
Supports Advanced Power Management (APM)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Desktop Management Interface (DMI)
FORM FACTOR
ATX Size, ca. 305mm*250mm
Sonstiges
ITE IT8705F hardware monitoring and Super I/O chip
ICS 94228BF clock generator (PLL)
Fairchild KA7500C SMPS controller
10 mounting holes
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
