Products description

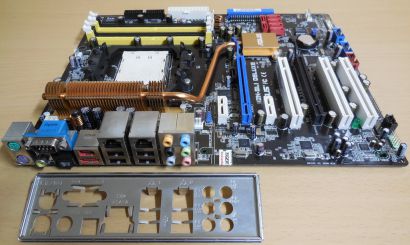

ASUS M2N-SLI Deluxe Rev 1.02G Mainboard + Blende Sockel AM2 nForce 570 SLI
Technische Daten
CPU
Support AMD® Socket AM2+ / AM2 Phenom FX(2000MT/s) / Phenom(2000MT/s) / Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipset
NVIDIA nForce® 570 SLI™ MCP
Front Side Bus
2000 / 1600 MT/s
Memory
4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and non-ECC, un-buffered memory
Dual channel memory architecture
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
2 x PCI Express x16 slot at x16, x8 speed
Support NVIDIA® SLI™ technology (both at x8 mode)
2 x PCI Express x1
3 x PCI 2.2
Scalable Link Interface (SLI™)
Support two identical NVIDIA SLI-Ready graphics cards (at x8, x8 mode)
ASUS two-slot thermal design
ASUS PEG Link
Storage
by NVIDIA nForce® 570 SLI™ MCP
- 1 x Ultra DMA 133 / 100 / 66 / 33
- 6 x Serial ATA 3.0Gb/s
- NVIDIA MediaShield™ RAID supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives
by JMicron JMB363 SATA controller
- 1 x Internal Serial ATA 3.0Gb/s
- 1 x External Serial ATA 3.0Gb/s port on back I/O (SATA On-the-Go)
- Support SATA RAID 0, 1 and JBOD (by 1x External SATA & 1x Internal SATA)
LAN
Dual Gigabit LAN controllers support NVIDIA DualNet® technology
NVIDIA nForce® 570 SLI™ MCP built-in dual Gigabit MAC with external Marvell PHY
- Support Teaming and Fail-Over functions
- Support TCP/IP Acceleration
Audio
ADI 1988B 8-channel High Definition Audio CODEC
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
Coaxial, Optical S/PDIF out on back I/O port
IEEE 1394a
TI 1394 controller supports 2 x 1394a ports
USB
max. 10 USB2.0/1.1 ports
ASUS Unique Features
AI Nap
AI Gear
Advanced Thermal Design - ASUS Fanless Design:Heat-pipe Thermal solution
ASUS Crystal Sound - ASUS Array Mic; Noise Filter
Overclocking Features
Intelligent overclocking tools - ASUS AI NOS™ (Non-delay Overclocking System); AI Overclocking (intelligent CPU frequency tuner); ASUS PEG Link (automatically performance tuning)
ASUS O.C. Profile - overclocking configuration-sharing tool
Precision Tweaker - vDIMM: 15-step DRAM voltage control; vCore: Adjustable CPU voltage at 0.0125V increment; Stepless Frequency Selection (SFS): allowing FSB tuning from 200MHz up to 400MHz at 1MHz increment; PCI Express x16 Frequency from 100MHz up to 200MHz at 1 MHz increment
Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall)
ASUS AI Booster Utility
Adjustable FSB frequencies with fixed PCI/PCI Express frequencies
Special Features
ASUS EZ DIY - ASUS Q-Connector; ASUS CrashFree BIOS3; ASUS EZ Flash2
ASUS Music Alarm
Back Panel I/O Ports
1 x PS/2 Keyboard port(purple)
1 x PS/2 Mouse (green)
1 x Optical S/PDIF Out port + 1 x Coaxial S/PDIF Out port
1 x External SATA
2 x LAN (RJ45) port
4 x USB 2.0/1.1 ports
1 x IEEE 1394a port
1 x COM port
8-channel Audio ports
Internal I/O Connectors
3 x USB 2.0 connectors support additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector for two devices
7 x SATA connectors
1 x 4-pin CPU FAN connector
4 x 3-pin Chassis FAN connector
1 x 3-pin Power FAN connector
1 x ADH connector
1 x IEEE1394a connector
1 x Parallel connector
1 x Chassis Intrusion connector
1 x Front Panel Audio connector
1 x S/PDIF output connector
1 x CMOS Jumper
1 x CD audio in
1 x Front Panel connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
BIOS
4Mb AWARD BIOS, PnP, DMI, WfM2.0, SM BIOS 2.3
Manageability
WOL by PME, WOR by PME, Chasis Intrusion, PXE
O/S Compatibility
Windows Vista / XP / 2000
Form Factor
ATX Form Factor; 12" x 9.6" (ca. 30.5cm x 24.5cm)
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
