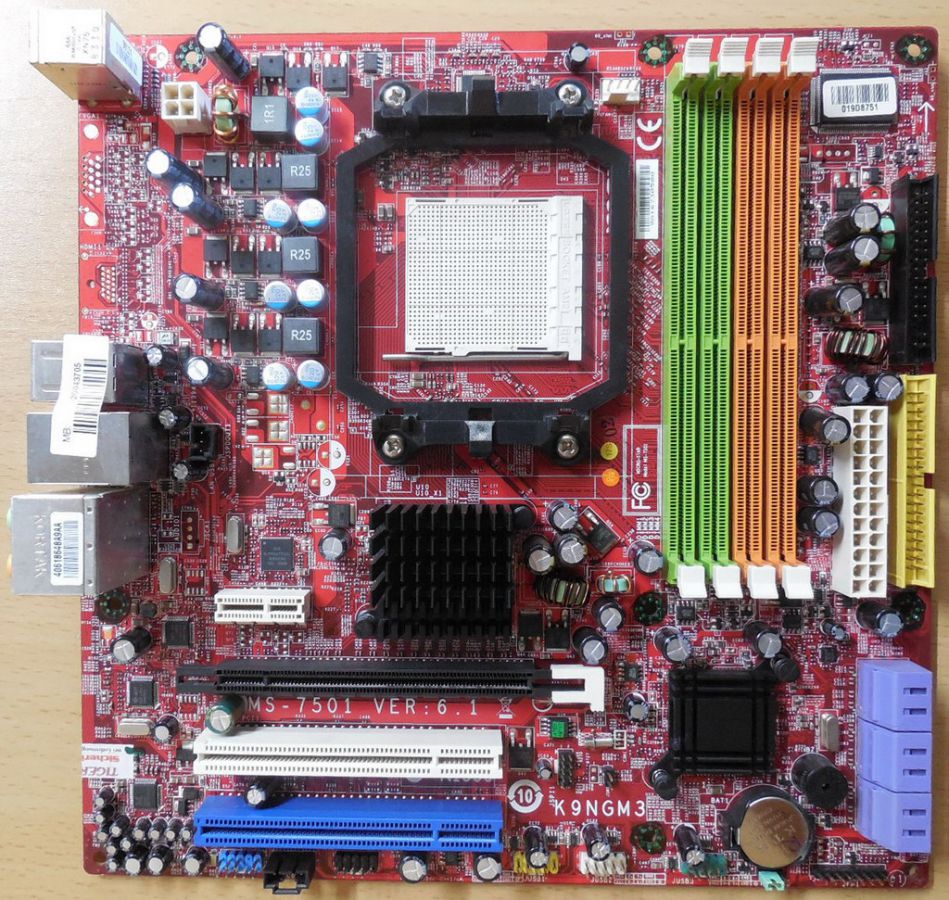

MSI MS-7501 Ver 6.1 K9NGM3 Mainboard +Blende Sockel AM2 AM2+ PCIe 16x GLAN
Technische Daten
CPU
AMD® Phenom/Athlon/Sempron CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Hyper Transport Bus
HyperTransport supporting speed up to 2.6GHz
- AM2 CPU supports HyperTransport 1.0/2.0
- AM2+ CPU supports HyperTransport 3.0
Chipset
AMD® 780G/780V and SB700 Chipset
Main Memory
Supports Dual DDR2 533/667/800/1066
- 4 DDR2 DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.
Slots
1 PCI Express x16 slot
1 PCI Express x1 slot
2 PCI slots, support 3.3V/ 5V PCI bus Interface.
On-Board IDE
One IDE port by AMD® SB700
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices
On-Board SATA
6 SATA II (1~4) ports by AMD® SB700
- Supports storage and data transfers at up to 3Gb/s
Floppy
- 1 floppy port
- Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB
Audio
Chipset integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
LAN
Realtek PCI-E GbLAN controller 8111DL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a
IEEE 1394
- Chip integrated by JMicron 381
- Transfer rate is up to 400Mb/s
Internal I/O Connectors
- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU FAN connector
- CD-in connector
- Front panel audio connector
- Front panel connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 6 x Serial ATA II connectors
- 1 x ATA133 IDE connector
- Clear CMOS jumper
- 1 x IEEE1394 Firewire header
Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x IEEE1394 Firewire jack
Dimension
24.4cm(L) x 24.4cm(W) M-ATX Form Factor
Mounting
6 mounting holes.
Lieferumfang

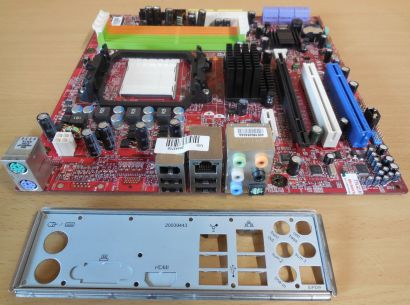

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
