Products description

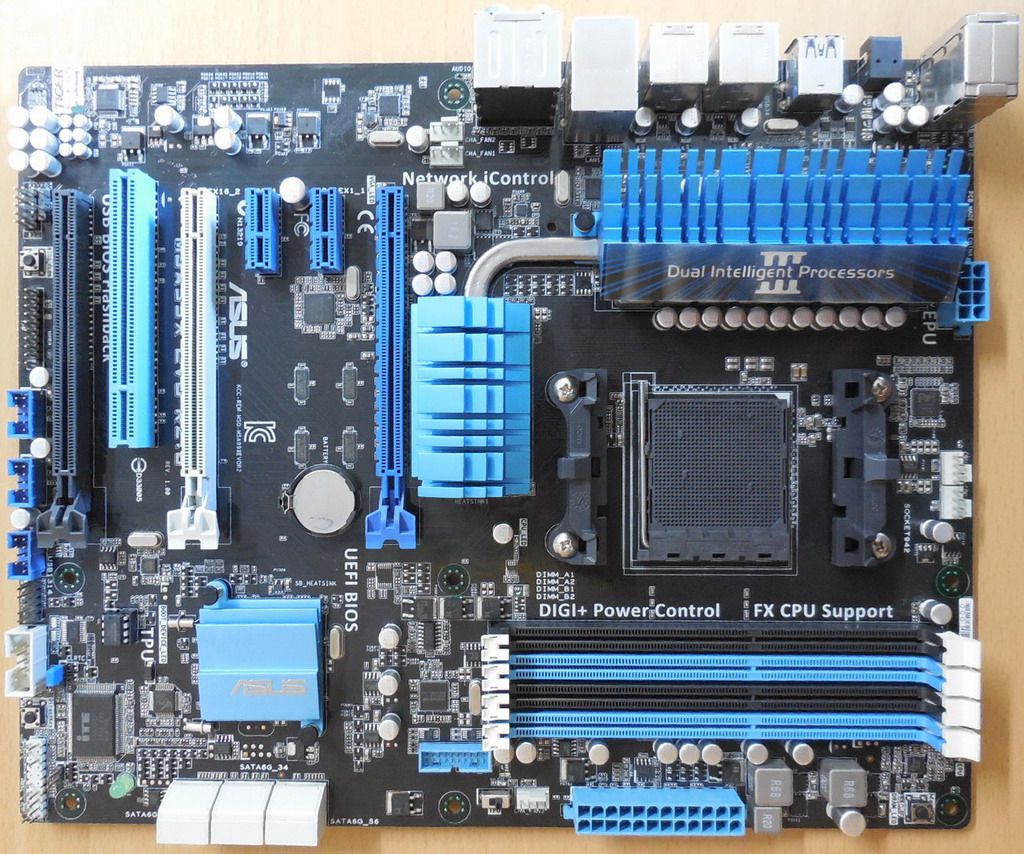

ASUS M5A99X EVO R2.0 Rev1.00 Mainboard + Blende AMD 990X Sockel AM3+ DDR3 USB3.0
Technische Daten
CPU
AMD® Socket AM3+ for AMD® FX Series CPU up to 8-Core
Compatible with AMD® Socket AM3 for AMD® PhenomTM II / AthlonTM II / SempronTM 100 Series Processors
AMD 140W CPU Support
AMD Cool ´n` QuietTM Technology
Supports AM3+ 32nm CPU
Chipset
AMD® 990X / SB950
Memory
4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066MHz, ECC, Non-ECC, un-buffered Memory
Dual channel memory architecture
*Due to CPU specifications, AMD® 100 Series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR 1333MHz.
**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operating system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
***Refer to the ASUS Website or user manual for the Memory QVL of AM3+/AM3 CPU.
Expansion Slots
2 x PCIe 2.0 x16 slots (Single at x16 speed; Dual at x8/x8 speed)
1 x PCIe 2.0 x16 slot (Black; at x4 speed)
2 x PCIe 2.0 x1 slots
1 x PCI slot
Multi-GPU support
Supports NVIDIA® Quad-GPU SLITM Technology
Supports AMD® Quad-GPU CrossFireXTM Technology
Storage
AMD® SB950 Chipset: 6 x SATA 6Gb/s ports (gray) with RAID 0, 1, 5 and 10 support
1 x ASMedia® PCIe SATA controller: 2 x e-SATA 6Gb/s ports (red)
LAN
Realtek® 8111F Gigabit LAN controller
Audio
Realtek® ALC892 8-channel High Definition Audio CODEC
Supports jack-detection, multi-streaming and front panel jack-retasking
Supports 192khz / 24bit True BD Lossless Sound
Blu-ray audio layer content protection
DTS UltraPC II
DTS Connect
Optical S/PDIF Out port at back I/O
ASUS Noise Filter
USB
2 x ASMedia® USB3.0 controllers: 2 x USB3.0/2.0 ports at mid-board for front panel support; 2 x USB3.0/2.0 ports at back panel (blue)
AMD® SB950 chipset: 14 x USB2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
ASUS Unique Features
ASUS Dual Intelligent Processors 3 with DIGI+ Power Control:
CPU Power Industry leading Digital 6+2 Phase Power Design; ASUS CPU Power Utility
DRAM Power Industry leading Digital 2 Phase Power Design; ASUS DRAM Power Utility
SMART DIGI+ Key Quickly delivers optimized VRM frequency, voltage, and current for superior CPU/DRAM overclocking performance in one click
ASUS EPU EPU; EPU switch
ASUS TPU Auto Tuning; TurboV, TPU switch
ASUS Exclusive Features ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface; Remote GO!; Front Panel USB3.0 Support; Network iControl; USB3.0 Boost; MemOK!; AI Suite II; AI Charger+
ASUS Quiet Thermal Solution ASUS Fanless Design: Heat pipe solution; ASUS Fan Xpert
ASUS Q-Design ASUS Q-Shield; ASUS Q-Slot; ASUS Q-DIMM; ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); ASUS Q-Connector
ASUS EZ DIY ASUS O.C. Profile; Direct Key; ASUS EZ Flash 2; ASUS MyLogo 2; Precision Tweaker 2; Multi-Language BIOS; USB BIOS Flashback with USB BIOS Flashback Wizard for EZ BIOS download scheduling
ASUS overclocking features
Precision Tweaker 2: vCore: Adjustable CPU voltage at 0.00625V increment; vDDNB: Adjustable CPU/NB voltage at 0.00625V increment; vNB: Adjustable NB voltage at 0.00625V increment; vNB HT bus: Adjustable HT voltage at 0.00625V increment; vDRAM Bus: Adjustable CPU voltage at 0.005V increment; vSB: Adjustable SB voltage at 0.005V increment
SFS (Stepless Frequency Selection): Internal Base Clock tuning from 100MHz up to 600MHz at 1MHz increment; PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
Internal I/O Connectors
1 x ATX 24-Pin power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin CPU FAN connector
1 x 4-pin Optional CPU FAN connector
3 x 4-pin Chassis FAN connectors
1 x TPU Switch
1 x EPU Switch
1 x COM connector
1 x Front panel audio connector (AAFP)
1 x System Panel Q-connector
3 x USB2.0/1.1 connectors support additional 6 USB2.0/1.1 ports
1 x USB3.0/2.0 connector supports additional 2 USB3.0/2.0 ports (19-pin)
6 x SATA 6Gb/s connectors
1 x TB header
1 x Clear CMOS jumper
1 x S/PDIF-Out header
1 x TPM header
1 x DRCT header
1 x USB BIOS Flashback button
1 x MemOK! button
1 x DirectKey button
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard combo port
2 x eSATA 6Gb/s ports (red)
1 x Optical SPDIF Out port
1 x RJ45 LAN port
2 x USB3.0/2.0 ports (blue)
8 x USB2.0/1.1 ports (One can be switched to USB BIOS Flashback)
6 x Audio jacks for 8-channel Audio
BIOS features
64MB Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7; ACPI 2.0a; Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut function and ASUS DRAM SPD (serial Presence Detect) memory information
Manageability
WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Form factor
30.5cm(L) x 24.4cm(W) ATX Form Factor; 12 in. x 9.6 in.
Lieferumfang

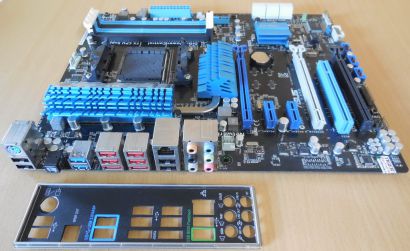

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
