Products description

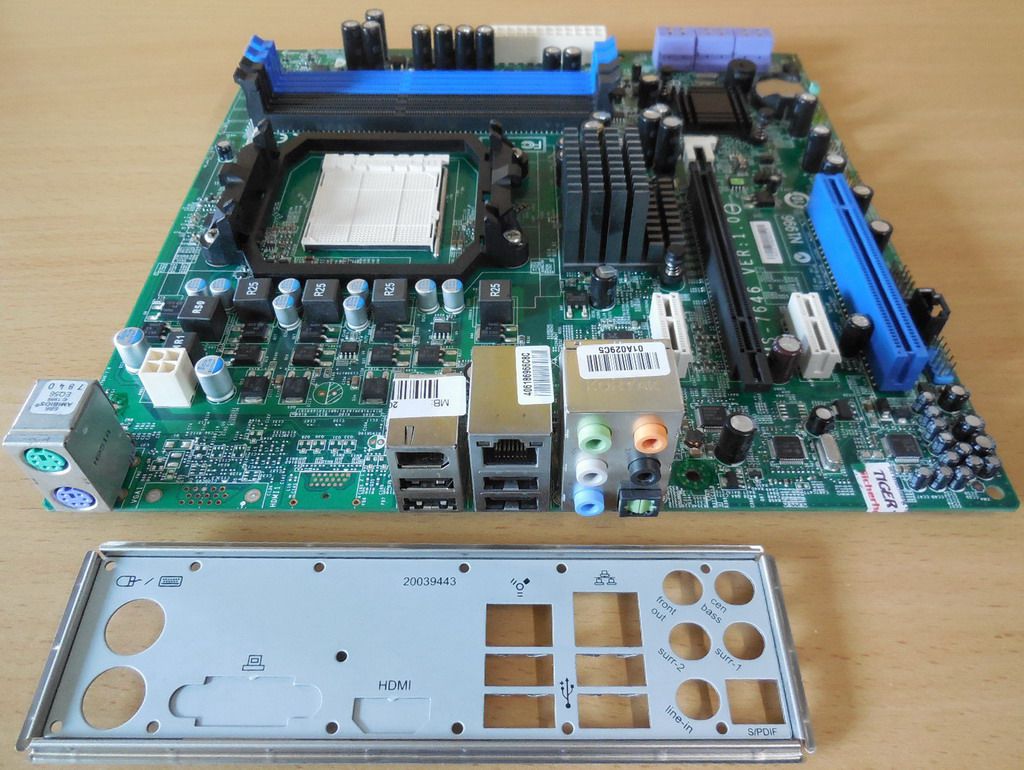

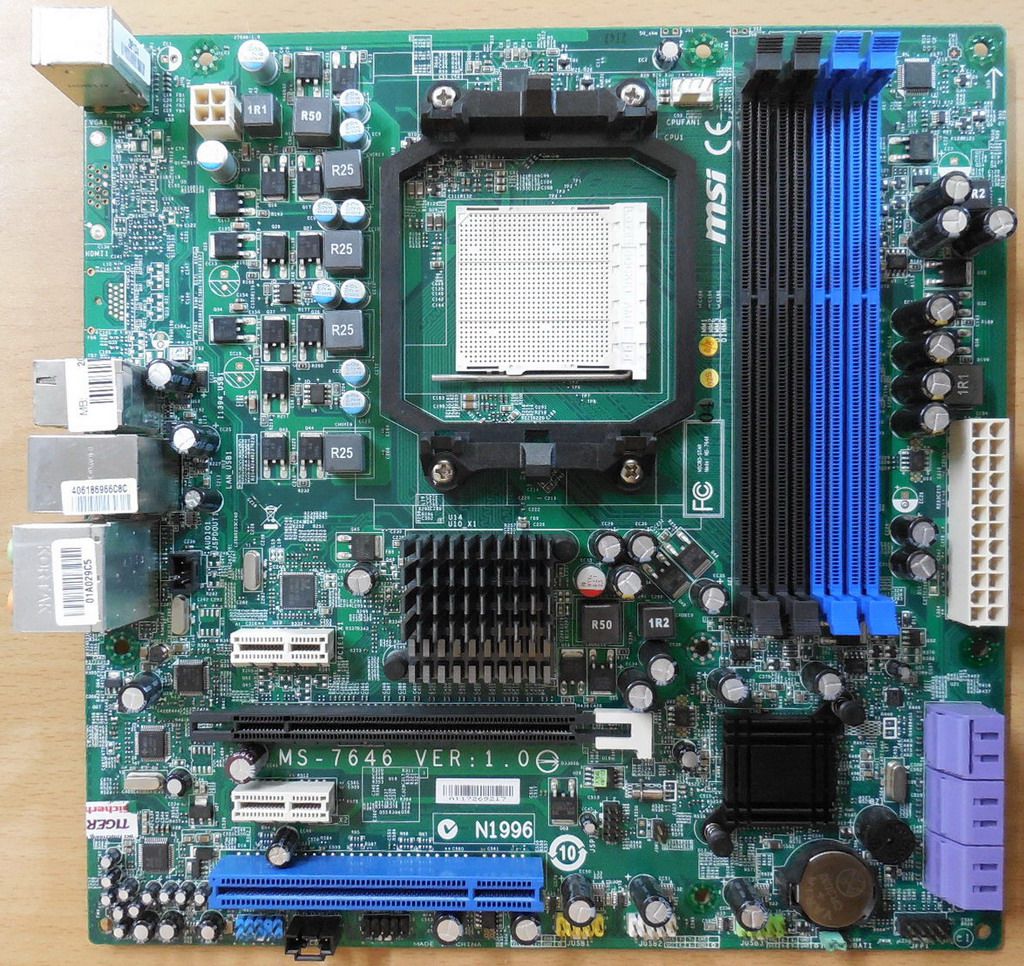

MSI MS-7646 Ver 1.0 Mainboard + Blende Medion AMD RX780 Sockel AM2 AM3 DDR3
Technische Daten
CPU
Supports 95W AMD® Phenom / Athlon II / Athlon 64 / Sempron processors
Supports 4-pin CPU fan pinheader with Fan Speed Control
FSB
Hyper Transport supports up to 3.0GHz
Chipset
AMD® RX780 Northbridge + AMD® SB710 Southbridge
Memory
Dual Channel DDR3 memory technology
Supports DDR3 533 / 667 / 800 / 1066 / 1333 SDRAM (240 pins/ 1.5V); non-ECC; un-buffered memory
4 x DDR3 DIMM slots (max. 8GB)
Audio
Chip integrated by Realtek® ALC888S
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
LAN
Gigabit Fast Ethernet by Realtek® RTL8111DL
IEEE 1394
Chip integrated by JMicron® JMB381 with transfer rates up to 400Mb/s
Slots
1 x PCI Express x16 slot
2 x PCI Express x1 slots
1 x PCI slot supports 3.3 V/ 5 V PCI bus interface
Storage
6 x SATA II ports by AMD® SB710 for up to 6 SATA devices. Supports storage and data transfers up to 3Gb/s
RAID
SATA1~6 support RAID 0 / 1 / 0+1 or JBOD mode by AMD® SB710
Internal Connectors
6 x SATA2 3.0 Gb/s connectors
1 x SPI Flash ROM connector
1 x JSMI1 connector
1 x IEEE 1394 header
1 x S/PDIF-Out connector (for HDMI Audio)
1 x CD_In connector
1 x Front Panel header
1 x Front Audio Panel header
3 x USB 2.0 headers (support 6 USB 2.0 ports)
1 x CMOS Jumper
1 x 4-Pin CPU FAN connector
24-pin ATX power connector
4-pin 12V power connector
Rear I/O Panel
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x IEEE 1394 Port
1 x Optical SPDIF Out Port
5 x Audio Jacks (Rear Speaker / Central / Bass / Line in / Front Speaker / Line out)
Form Factor / Mounting
micro-ATX (24.4 cm x 24.4 cm) / 8 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
